ND-S2W01P
The stator needle winding machine is used for Brushless DC Motor Stator manufacturing.
Automatic Brushless DC Motor Needle Winding Machine
BLDC Motor Winding Machine Introduction:
The motor winding machine is used for Brushless DC Motor Stator manufacturing. Brushless DC motors are unique and versatile in a wide range of applications. Lightweight, motors delivering low inertia, high efficiency and high torque density in compact sizes.
BLDC motors fit more easily into small compact machines that require precision and higher torque density.
Applications in the fields
The Brushless DC Motor is suitable for robotics, automation, medical, industrial, semiconductors and more.
Brushless DC Motor Winding Machine Technical parameter
Product name: | Brushless DC Motor Needle Winding Machine |
Stator ID: | φ25—φ60mm (Other specifications can be specially designed) |
Stator OD: | φ60—φ200 mm (Other specifications can be specially designed) |
Stack length: | 10-80mm(Standard stroke) |
Wire diameter: | φ0.13—φ1.2mm(Other specifications can be specially designed) |
Dimension: | 1200*1300*1700mm |
Spindle speeds: | 0-260 RPM adjustable |
Air pressure: | 0.5-1MPa |
Power: | 10KW |
Voltage: | 380V/50HZ Three phase four wires |
Weight: | 500KG |
Brushless DC Motor Winding Machine Feature
Two-staions Needle Coil Winding Technology Design
For multi-pole stator winding, manual loading and unloading, automatic clamping, winding and shearing;
PLC control, fault display
Tooling and fixture parts adopt downward positioning mode, stable positioning and reliable tightening.
Wire clamping and wire cutting, line part structure compact, wire clamping and wire cutting is completed at one time;
Different stator and winding parameters can be quickly switched through the HMI to adapt to different stator requirements.
Quick change-over of tooling;(20 minutes with proficiency)

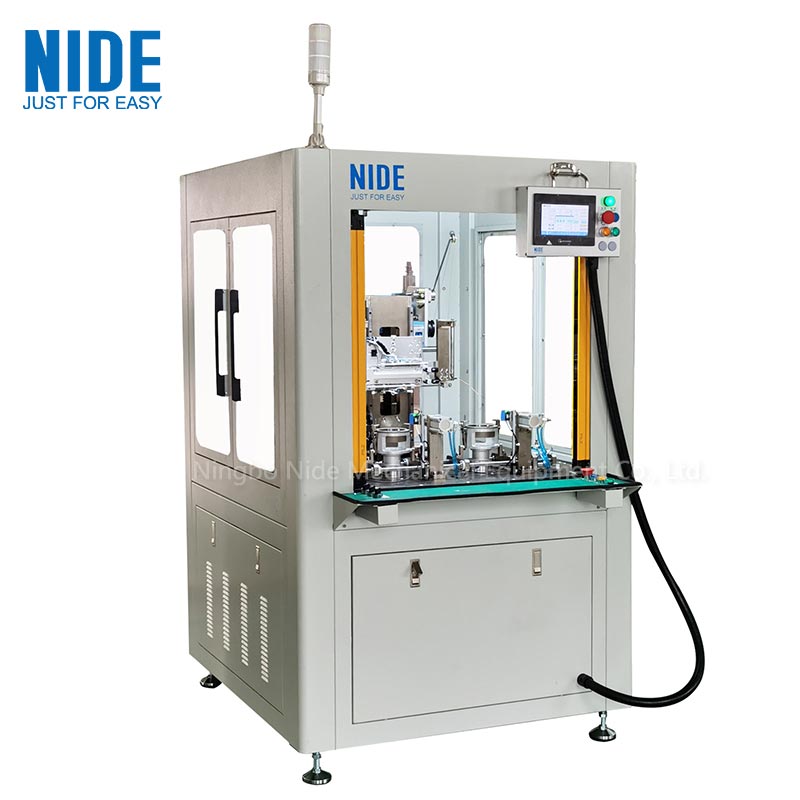

Brushless DC Motor Winding Machine Picture Show
Brushless DC Motor Winding Machine Video
