Insulation paper DMD Class F

NDPJ-JYZ-2

CONTACT US
Details

DMD is made of two layers of polyester fiber paper with one of polyester film. It is a three-layer combined material. It shows excellent mechanical and electrical properties and good heat resistance.

Thermal class: F

Application: it is widely used in slot, phase and liner insulating of motor, transformer and so on.

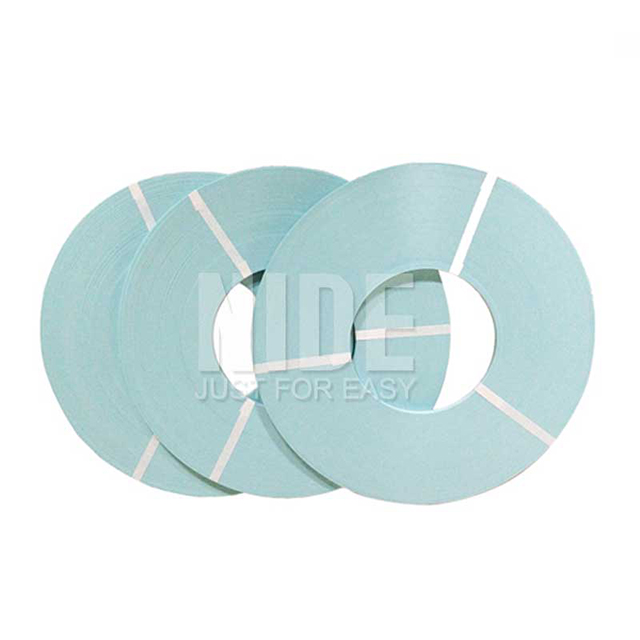

We could supply DM Din three forms, such as DMD roll, DMD pieces, DMD tape.



Competitive advantages

1.We directly supply our insulation materials to many countries, like USA, France, Turkey, Iran, India, Brazil, Argentina, Mexico etc.

2. Our insulation material has a wide application, such as automotive industry, household appliances, power tools and etc.

3. We have a wide range of insulation material.

4. We could customize insulation material for our customer.



Information needed for insulation material inquiry

It will be better if customer could send us detailed drawing including below information.

1. Insulation material type: insulation paper, wedge, (including DMD,DM, polyester film, PMP,PET, Red Vulcanized Fiber)

2. Insulation material dimension: width, thickness, tolerance.

3. Insulation material thermal class: Class F, Class E, Class B, Class H

4. Insulation material applications

5. Required quantity: normally its weight

6. Other technical requirement.



We also supply different types of electrical insulation materials for stator or armatures, such as insulation paper and insulation wedge with different class degree. DMD Class B/F, DM Class B/F, Polyester film Class E, Red Vulcanized Fiber Class A, NH& NHN, etc

electrical insulation material motor winding insulation paper wedge



Besides, we can supply the full range of motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper material, shaft, magnet, fan, motor cover,etc.
