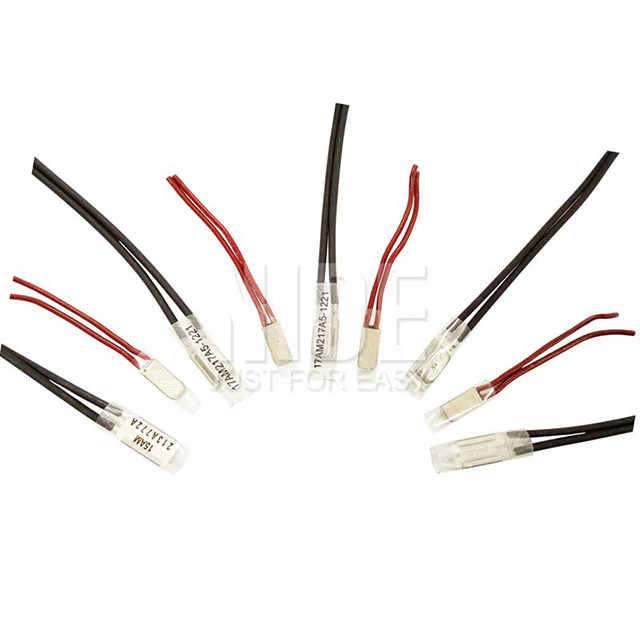

Electric motor Thermal protector

NDPJ-RBHQ-8






CONTACT US
Details

BR-A2D. BW series thermal protectors are used to provide effective and reliable safety protection to motors and prevent motors from damage due to overheating. These series thermal protectors are widely applied in the industrial motor under 1.5HP, such as transformers, rectifiers, electro-thermal appliances, etc.



Temperature specification

Open temperature: 70~150±5℃, one gear per 5℃

Reset temperature: it is 2/3 of standard opening temperature or specified by customers. The tolerance is 15℃.



Contact capacity

They are applicable for more than 5000 cycles under following condition.

Voltage

24V-DC

125V-AC

250V-AC

Current

10A

10A

6A



 Notice:

The thermal protector can not sustain heavy impact during working.

The word side is the temperature sensing surface.

About Motor component and  accessories

NIDE can supply the full range of electric motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
