NHN 6650 insulation paper motor electrical insulation material

 Modle : NDPJ-JYZ-6550

This 6650 NHN insulation paper is suitable for cables, coils, motors, generators, ballasts, dry-type transformers, high-voltage transformers , etc.

CONTACT US
Details



 NHN 6650 Class H insulation paper 180 degree High temperature resistance motor insulation material manufacturer China







1. NHN 6650 insulation paper application



This 6650 NHN insulation paper is suitable for slot insulation, turn-to-turn insulation and gasket insulation for Class H high heat resistance motor appliances , such as cables, coils, motors, generators, ballasts, etc., and is used for interlayer insulation of transformers and other electrical appliances, such as dry-type transformers, high-voltage transformers, etc.





2. NHN 6650 insulation paper technical parameters



Parameter name

Specification unit

Product Name:

NHN 6650 H grade high temperature insulation paper

Insulation Material Color:

Pink

Insulation paper grade:

Class H , 180-200 ° C

Normal adhesion:

no delamination

Hot adhesion (200±2°C, 10min)

No delamination, no blistering, no glue

Insulation paper thickness:

0.15±15 MM

0.17±15 MM

0.20±15 MM

0.23±15 MM

Quantitative insulation paper:



145 gsm



181 gsm



218 gsm



286 gsm

Nomex thickness:

50 μm

50 μm

50 μm

50 μm

Film thickness:

25μm

50μm

75μm

125μm

Breakdown voltage:

≥7 KV

≥9 KV

≥12 KV

≥19 KV

Breakdown voltage after bending:

≥ 6KV

≥ 8 KV

≥ 11 KV

≥17 KV

Pulling strength (longitudinal):

≥ 120N/CM

≥ 160 N/CM

≥180N/CM

≥200 N/CM

Pulling strength (lateral):

≥ 70N/CM

≥ 90N/CM

≥ 120N/CM

≥ 150N/CM

Elongation (longitudinal):

≥15%

≥17%

≥17%

≥12%

Elongation (lateral):

≥15%

≥17%

≥17%



≥12%




3. NHN 6650 insulation paper characteristics



a. Excellent mechanical properties: such as good tensile strength and edge tear resistance, electrical properties, dielectric properties, mechanical toughness, chemical compatibility, thermal conductivity, radiation resistance,

b. low moisture absorption rate, good moisture resistance

c. has excellent insulation properties.

d. insulating paint infiltration effect is strong.

e. Add some heat-resistant organic fiber, long-term withstand voltage at high temperature, excellent flame retardant and flame resistance, thermal stability, heat resistance and thermal conductivity.

f. the material is safe and non-toxic, and the shaping effect is excellent.





4. NHN 6650 insulation paper composition



The insulating paper is a soft three-layer composite insulating material, the middle layer is a polyimide film, and the outer two layers are NOMEX, which is mainly composed of inorganic components, polyimide film, aramid fiber paper, and adhesive, etc.





5. NHN 6650 insulation paper storage



The insulation meterial can be stored indefinitely under normal conditions and away from other humid material





6. NHN 6650 insulation paper picture show

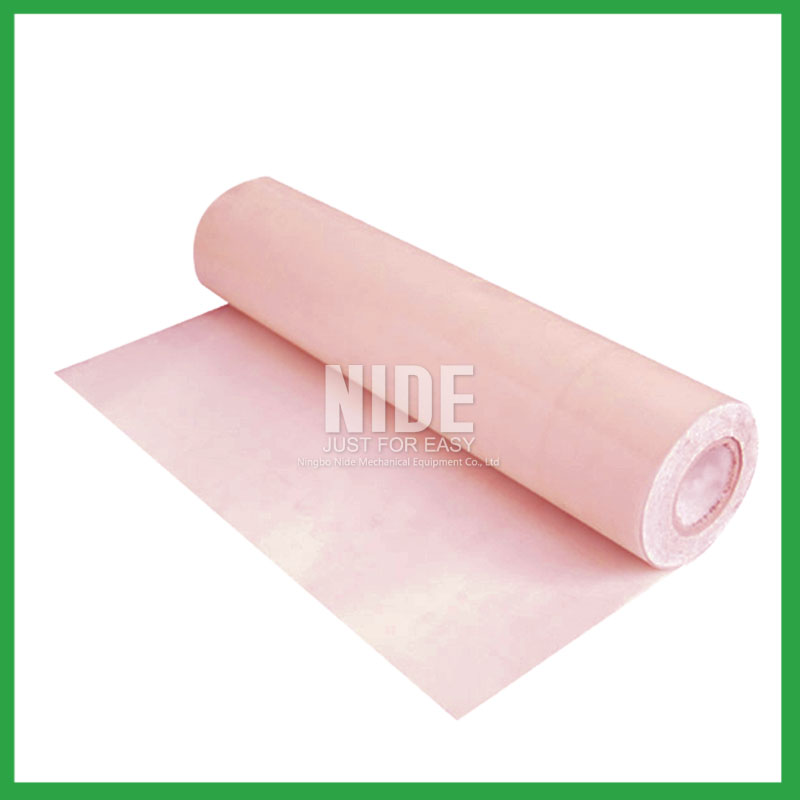

NHN 6650 electrical winding insulation paper motor insulation material



7. Information needed for insulation material inquiry



It will be better if customer could send us detailed drawing including below information.

a. Insulation material type: insulation paper, wedge, (including DMD,DM, polyester film, PMP,PET, NHN , NMN ,PM ,Red Vulcanized Fiber,)

b. Insulation material dimension: width, thickness, tolerance.

c. Insulation material thermal class: Class F, Class E, Class B, Class H , Class C

d. Insulation material applications

e. Required quantity: normally its weight

f. Other technical requirement.


We also supply different types of electrical insulation materials for stator or armatures, such as insulation paper and insulation wedge with different class degree. DMD Class B/F, DM Class B/F, Polyester film Class E, Red Vulcanized Fiber Class A, NH& NHN, etc

electrical insulation material motor winding insulation paper wedge


Besides, we can supply the full range of motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper material, shaft, magnet, fan, motor cover,etc.



motor part, motor components, motor accessories
