DM 6644 electric motor insulation paper F grade winding insulating paper manufacturer

6644 DM insulation material has smooth surface, environmental protection, non-toxicity, non-corrosiveness, heat resistance and high temperature resistance.It has good mechanical and electrical properties, good insulation, high pull-up property, strong impact resistance, good impact force.

Modle : NDPJ-JYZ-6644

CONTACT US
Details

DM 6644 electric insulation material, F gradepolyester film motor winding insulation paper manufacturer



1.6644 DM insulation paper composition:

6644 DM insulation paper material is a soft two-layer composite material composed of a layer of  longitudinal polyester fiber non-woven fabric and a transparent or milky white polyester film bonded with F-grade resin (polyurethane glue).

Good impregnation properties of the nonwoven fabric and good dielectric strength of the polyester film.


2.6644 DM Insulation Paper Features and Performance:

6644 DM insulation material has smooth surface, environmental protection, non-toxicity,non-corrosiveness, heat resistance and high temperature resistance.

It has good mechanical and electrical properties, good insulation, high pull-up property, strong impact resistance, good impact force.

Temperature class F ( 155 ° C).


3.6644 DM insulation paper application:

6644 DM insulation material is used in low-voltage motors, power tools, electrical appliances for slot insulation, gasket insulation, turn-to-turn insulation, phase-to-phase insulation and wedge insulation , or transformer interlayer insulation, suitable for automatic winding machine processing.


4.6644 DM insulation paper storage:

The electric insulation material can be stored indefinitely at (20 ° C, 50% r. h.).


5.6644 DM insulation paper product parameters:

Roll shape: not cut edge width 1005mm, trimming edge 980mm

Sheet: Any length and width in the range of 1000*980mm

Dish: 5mm-990mm

Roll diameter: not less than 300mm

Die size: conventional 76mm

Color: green, pink, blue

Working temperature: F grade 155 °C



Properties

Unit

Parameter

Insulation paper thickness

MM

0.09

0.11

0.15

0.19

0.20

0.23

0.25

0.30

0.36

0.41

Thickness deviation

MM

±0.01

±0.01

±0.02

±0.02

±0.02

±0.02

±0.03

±0.03

±0.04

±0.04

Grammage and deviation

GSM

93±9

113±11

183±18

218±22

253±25

288±29

308±31

393±39

463±46

533±53

Film thickness

MM

0.036

0.050

0.100

0.125

0.150

0.175

0.190

0.250

0.300

0.350

Breakdown voltage

KV

5

6

9

10

11

13

14

16

18

22

Tensile strength (MD)

N/CM

60

80

150

190

220

250

280

330

350

380

Tensile strength (TD)

N/CM

40

70

110

140

150

160

180

280

300

330

Tensile strength after folding (MD)

N/CM

40

70

110

140

165

190

240

280

300

330

Tensile strength after folding (TD)

N/CM

20

50

90

110

115

120

130

180

200

230

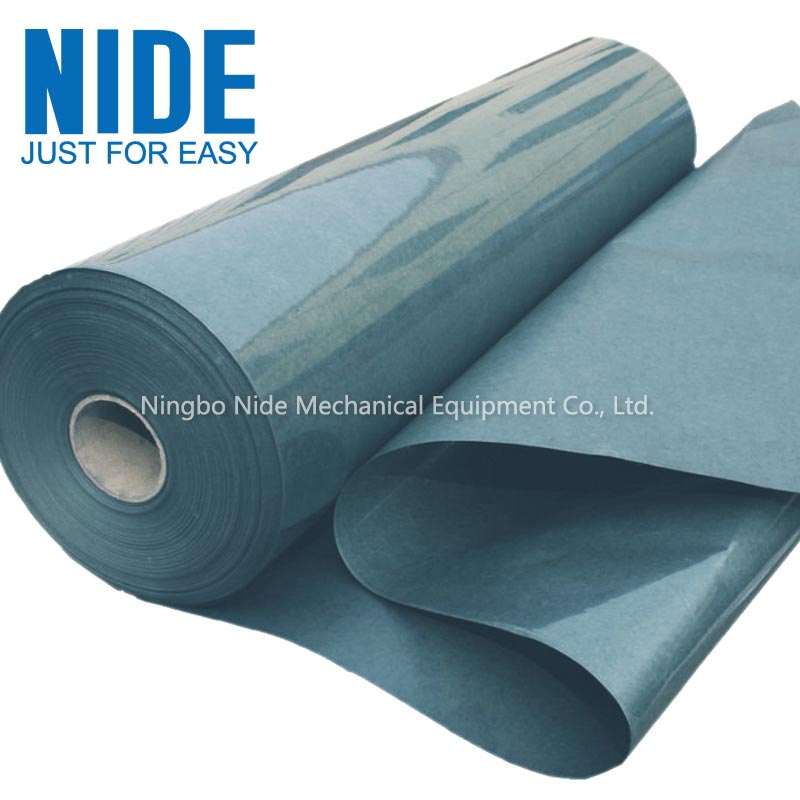

6. 6644 DM insulation paper picture show

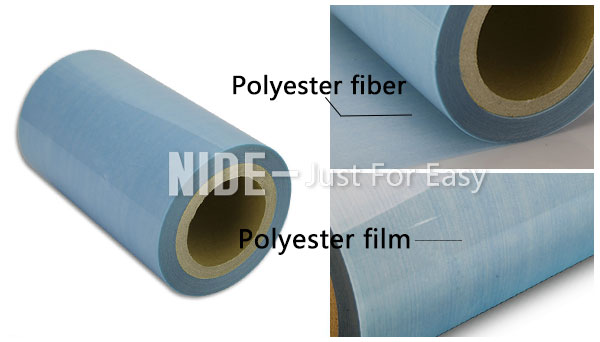

The DM 6644 Insulating paper composition



insulation paper

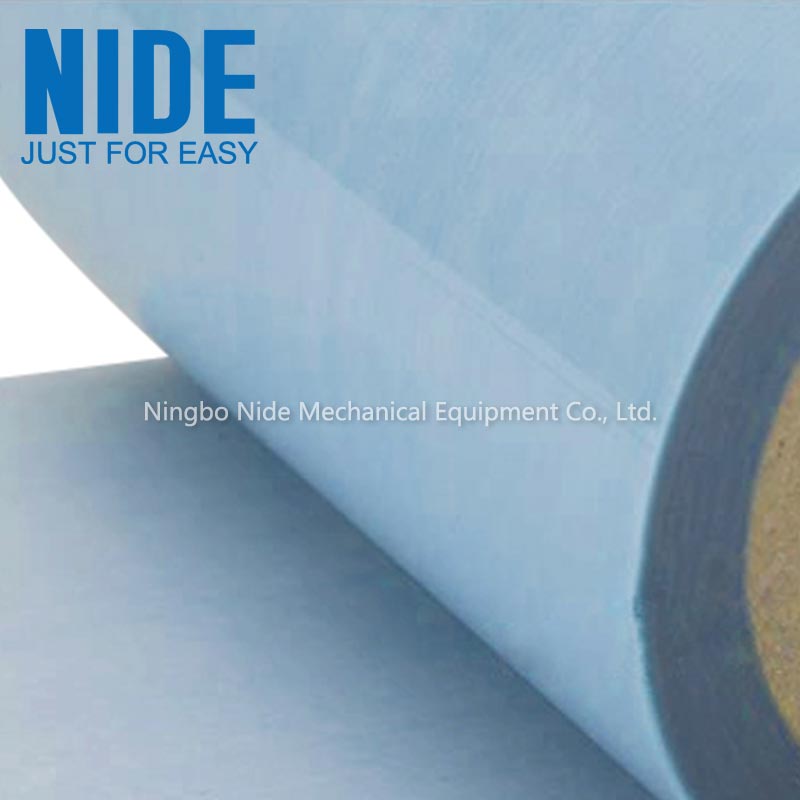

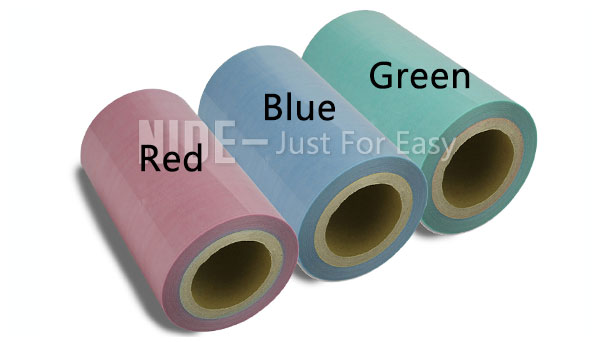

The DM 6644 Insulating paper color : Pink , blue , green.



DM insulation material

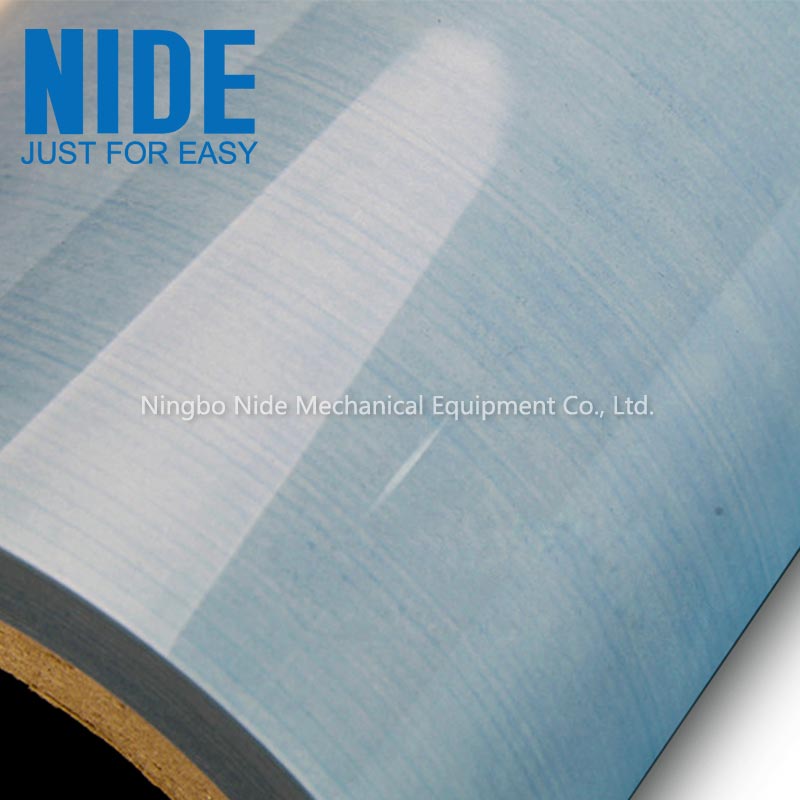

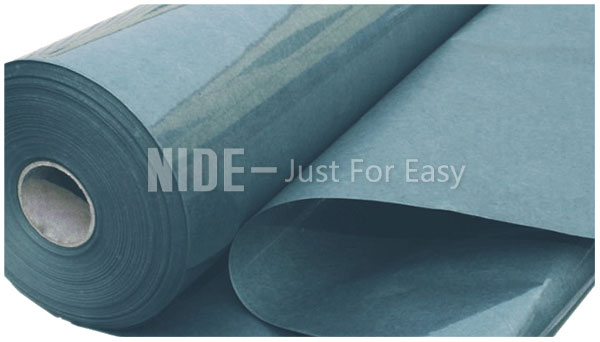

​The DM 6644 Insulating paper detail:



motor winding insulation paper material



7. Information needed for insulation material inquiry





It will be better if customer could send us detailed drawing including below information.



a. Insulation material type: insulation paper, wedge, (including DMD,DM, polyester film, PMP,PET, NHN , NMN ,PM ,Red Vulcanized Fiber,)



b. Insulation material dimension: width, thickness, tolerance.



c. Insulation material thermal class: Class F, Class E, Class B, Class H , Class C



d. Insulation material applications



e. Required quantity: normally its weight



f. Other technical requirement.



We also supply different types of electrical insulation materials for stator or armatures,

such as insulation paper and insulation wedge with different class degree.

DMD Class B/F, DM Class B/F, Polyester film Class E, Red Vulcanized Fiber Class A, NH& NHN, etc

electrical insulation material motor winding insulation paper wedge

Besides, we can supply the full range of motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper material, shaft, magnet, fan, motor cover,etc.

motor part, motor components, motor accessories
