24 segments hook type armature commutator for vacuum cleaner motor

Model: NDPJ-HXQ-16

Alternator motor collector commutator, vacuum cleaner motor 24 segments hook type armature commutator, Nide produces more than 1200 different types of electric motor stator and armature rotor brush commutator,



CONTACT US
Details

24 segments electric motor hook type armature collector





Product advantages:

Professional and unique design makes the motor noise less and torque more,

High dielectric strength between chips,

no breakdown or flicker occurs;

insulation resistance ≥ 100MΩ,

AC frequency at 50HZ / 60HZ,

excellent electrical and mechanical properties,

stable structure,

high dimensional accuracy,

small uniform angular error of commutator,

high product hardness ,

Good abrasion resistance,

high tensile strength,

stable thermal performance and long service life.


Commutator parameters

Product name:  Automobile car Window lift motor collector commutator
ID 9.0
OD 15.5
Height 13.0
Bar NO 12.0



Model No. OD
(mm)
ID(mm) Total height
(mm)
Segment Length
(mm)
Hook/Riser dia.
(mm)
Bar No.
S-02001 37.5 φ13 24 20.5 38.5 32
S-03002 15.75 φ13 11.25 9.5 16 24
S-03003 24 φ9 17 14 25 24
S-03003B 24.5 φ10 17.5 14 25.5 24
S-03003C 24.5 φ10 17.5 14 25.5 24
S-02004 24 φ9 15 13 24.5 24
S-03004A 23.2 φ9 15 13 24 24
S-03005 24 φ9 17 14 25 24
S-03005A 24 φ9 17 14 25 24
S-03006 37.5 φ13 26 23 38.5 32
S-03007 25.5 φ10 17 14 26.5 24
S-03007B 25.5 φ10 17 14 26.5 24
S-03008 23.5 φ9 14 12 24 24
S-03009 24 φ9 16.6 14 29 24
DZQD-RZ32-010 28.5 φ12 17.5 16 34.3 24
S-03011 23.5 φ9 17.5 14 28 24
DZQD-RZ32-012 23.5 φ10 18 16.4 28.5 24
S-03013 23 φ8 16 14 23.5 24
S-03014 28.5 φ11 20 17 29.5 24
S-03015 22.5 φ9 17.5 17.2 30 10
S-03016 28 φ14 20 19.2 36.8 12
S-03016A 28 φ14.2 20 19.2 36.8 12
S-03017 28.5 φ9 17.5 15 29.5 24
S-03018 34.3 φ13 22 20.5 41.5 24
S-03019 24.5 φ10 17.5 14 25.5 24
S-03019A 24.5 φ10 17.5 14 25.5 24
S-03020 28.5 φ11 17 14 29.5 24
S-03021 20.5 φ10 18 13.5 30.5 12
QZQC-RZ12-022 20.5 φ10 17.8 13.5 26 12
S-03024 40.4 φ13 24 20 42 50
S-03025 23.2 φ8 17.5 17 30 12
QZQC-RZ32-026 20.2 φ8 14.6 14.1 25 16
QZQC-RZ32-026A 20.2 φ8 14.6 14.1 25.5 16
QZQC-RZ12-027 18.9 φ8 14.5 12.8 24 12
S-03028 15.5 φ7 11.4 11.7 20 9
S-03030 22.5 φ9.2 18 17.7 30.6 10
S-03031 22.5 φ12 21 20.5 30.5 10
S-03032 28.5 φ12 17.5 14.5 29.5 24
S-03033 30 φ10 20 17 35.5 24
S-03033A 30 φ11 21 18 36 24
S-03033B 30 φ11 21 18.5 36 24
S-03033C 30 φ11 21 18.5 36 24
JZQC-RZ32-037 22 φ8 16 14.2 27 16
S-03038 35.4 φ14 42.5 38 48 23
S-03038A 35.4 φ14 42.5 38 48 23
S-03044 22.5 φ10 17.5 17 28.5 10
S-03045 35.5 φ15.75 23.5 20 46 19
S-03046A 37.5 φ14 42 38 49.5 23
S-03046B 37.5 φ14 42 38 49.5 23
S-03047 45 φ15.5 50 44.4 62 21
S-03048 34 φ10.2 38.5 34.5 46.5 23
S-03050 15 φ5 16.5 15.5 20 12

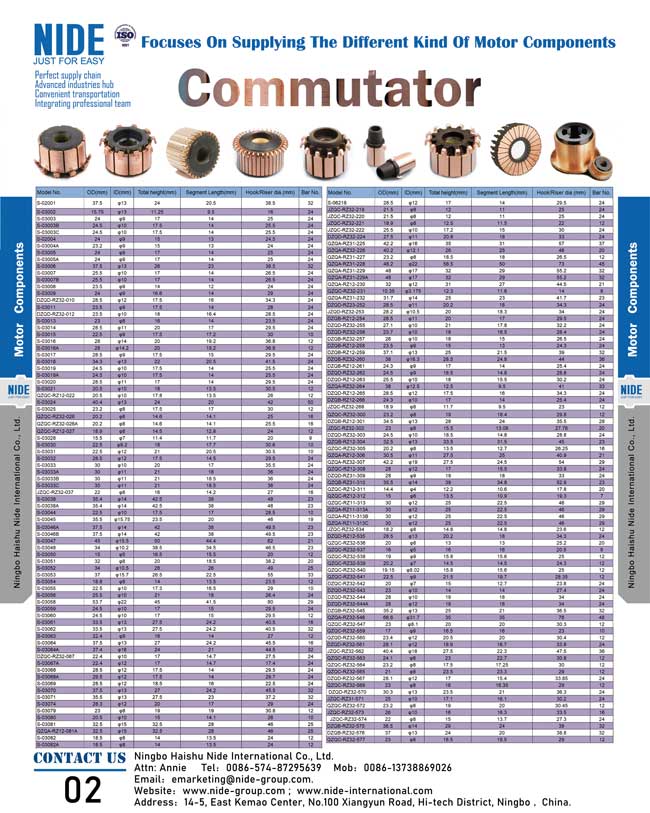

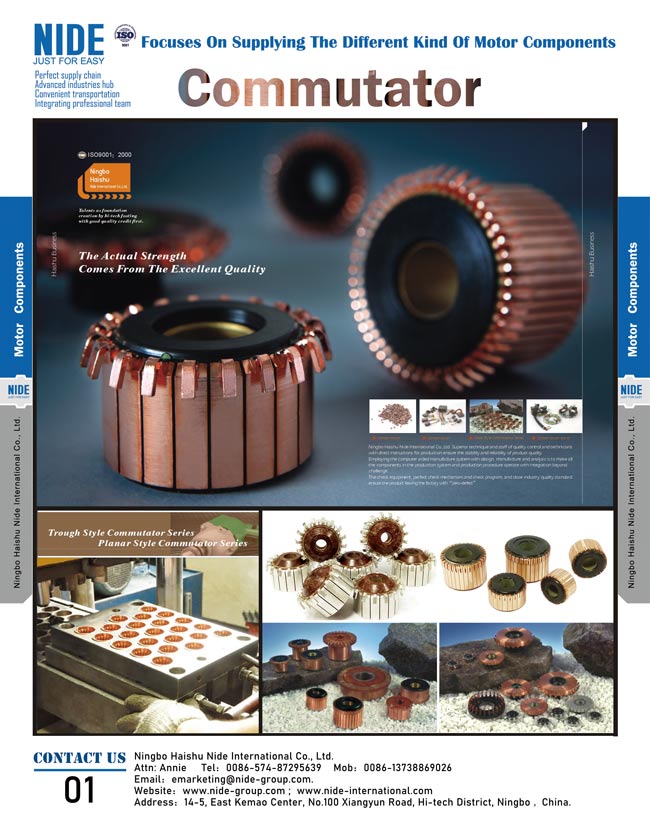

Picture show

24 segments vacuum cleaner motor hook type armature collector commutator for alternator.jpg

auto alternator segment armature collector .jpg

Automobile car Window lift motor commutator.jpg









Nide produces more than 1200 different types of electric motor stator and armature rotor brush commutator, including hook type, riser type, shell type, planar type, ranging from OD 4mm to OD 150mm and we are professional in manufacturing commutator for many years. The commutators are widely applied to automotive industry, power tools, household appliances, and other motors.If our existing models are not suitable for you, we could also develop new tooling according to your drawing and samples.

motor commutator
electric motor collector

Besides, we can supply the full range of motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper material, shaft, magnet, fan, motor cover,etc.
