KSD9700 thermal fuse 5A 250V over temperature thermal protector

 Model: NDPJ-RBHQ-55

These 5A 250V over-temperature thermal protectors are suitable for household appliances, household appliances, machinery and equipment.


5A 250V smart over temperature thermal protector KSD9700 thermal fuse KW/BW/135°C


Our KSD9700 thermal protector can quickly sense temperature, provide overvoltage protection, meet environmental protection standards, and is safe and reliable. It has the characteristics of stable performance, high precision, small size, light weight, high reliability, long life, and less trouble to radio. It is widely used in household water dispensers, disinfection cabinets, microwave ovens, electric coffee pots, electric cookers, air conditioners, etc. Electric heating appliances.

KSD9700 temperature control switch is a kind of shaped bimetal as a heat sensitive reaction element. When the temperature or current increases, the heat generated is transferred to the bimetal disc. When the temperature reaches a predetermined value, it will act quickly to make the contact Disconnect, cut off the circuit. When the temperature drops to a predetermined reset setting value, the bimetallic disc recovers quickly, closing the contacts and connecting the circuit. The temperature control shell adopts high temperature resistant engineering plastic shell, which has the characteristics of small size, high sensitivity, large contact capacity, fast heat transfer speed, long life, and convenient installation.


Scope of application:

The 5A 250V thermal protector is used for household water dispensers and electric boiling water bottles, disinfection cabinets, microwave ovens, electric coffee makers, electric cookers, air conditioners, washing machine motors, air conditioner fan motors, range hood motors, series motors, water pump motors, automobile DC motors, electric bicycle motors , Fluorescent lamp rectifier, transformer, rechargeable battery, ultrasonic atomization, beauty salon equipment, electric steam bath, electric water heater, glue machine, power amplifier protection, automation equipment and other electric heating appliances.


Product parameter

Product name:  135 degree 5A250V temperature thermal protector
Type Overheat protector/ Thermal fuse
Custom processing: Yes
Size custmoized
Temperature control range 50-180 (℃) (special specifications can be customized according to customer requirements)
Reset temperature: 5℃-50℃ lower than rated operating temperature, reset tolerance ±15℃,
Tolerance ±5℃
Maximum working current: 5A (8A)
Working voltage 250V
Type Shape Wrap
Fusing speed M/medium speed
Contact life: >10000 times Contact resistance ≤50mΩ
Dimensions:  plastic shell 21×8×5, metal shell 21×7.2×3.5 (special specifications can be customized according to customer requirements)
Used Household appliances, household appliances, machinery and equipment

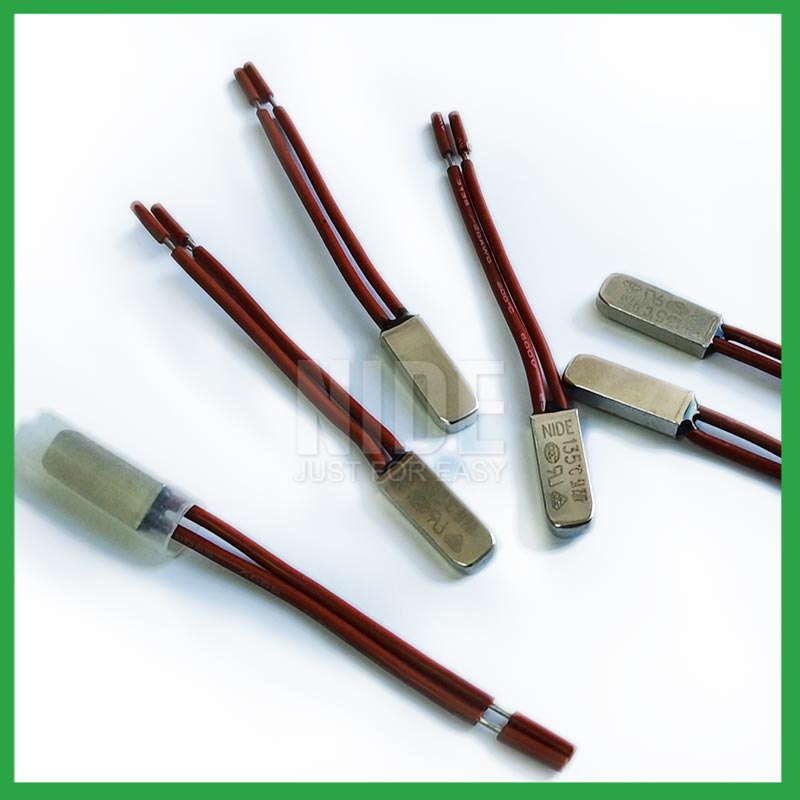

Picture show

thermal protector.jpg

motor thermal protector.jpg

135°C thermal protector.jpg

5A 250V thermal protector.jpg


About Motor component and  accessories

NIDE can supply the full range of electric motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
