6641 DMD F polyester film composite insulating paper

 Model:NDPJ-JYZ-26

The DMD composite insulating material is suitable for general type and humid tropical type electric tank insulation, turn-to-turn insulation and liner insulation for class F insulation, and can also be used as transformer coil insulation.



Categoryes:  Insulation paper

CONTACT US
Details

Customized polyester film composite insulating paper-6641 F grade DMD motor slot paper insulating material



1. Features

The composite insulating material paper has good dielectric properties, high heat resistance, tear strength, tensile strength and mechanical strength, and good impregnation performance. It can be bonded to the high-density polyester fiber non-woven fabric of the outer layer. Improve the mechanical strength of the film, maintain good flexibility and further improve the heat resistance and thermal stability of the product.

We can customize various shapes of insulating materials according to customer needs, such as taping, slices, tube cores, etc.



2. Product information



Name:  Polyester film polyester fiber composite material
Composition:  A composite material made of polyester film coated with F grade adhesive on both sides and polyester fiber paper on both sides.
Model:  6641 DMD-F level
Color:  green
Thickness  0.13-0.45 (mm)
Size  1000 (mm)
Dribbling More than 10mm
Slicing 1000*900mm
Tubular 76mm
Features High temperature resistance, good dielectric properties, high heat resistance and mechanical strength.
Heat resistance 155℃
Customized : Yes
Packing:  carton, bag
Store dry place



3. Application

The DMD composite insulating material is suitable for general type and humid tropical type electric tank insulation, turn-to-turn insulation and liner insulation for class F insulation, and can also be used as transformer coil insulation. Mainly suitable for the production and automated production of motors and electrical products.



4. Picture show

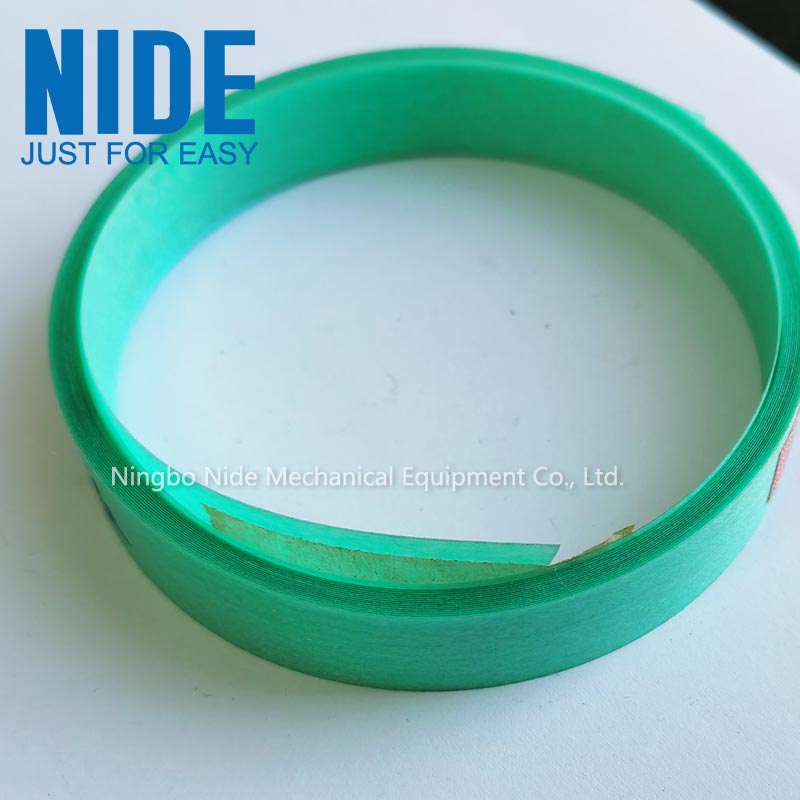

DMD F polyester film insulation paper.jpg

6641 DMD F polyester film.jpg

DMD F polyester film insulation material.jpg

6641 DMD F polyester film motor insulation paper.jpg

Information needed for insulation material inquiry

It will be better if customer could send us detailed drawing including below information.

1. Insulation material type: insulation paper, wedge, (including DMD,DM, polyester film, PMP,PET,Red Vulcanized Fiber)

2. Insulation material dimension: width, thickness, tolerance.

3. Insulation material thermal class: Class F, Class E, Class B, Class H

4. Insulation material applications

5. Required quantity: normally its weight

6. Other technical requirement.



We also supply different types of electrical insulation materials for stator or armatures, such as insulation paper and insulation wedge with different class degree. DMD Class B/F, DM Class B/F, Polyester film Class E, Red Vulcanized Fiber Class A, NH& NHN, etc

electrical insulation material motor winding insulation paper wedge



Besides, we can supply the full range of motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper material, shaft, magnet, fan, motor cover,etc.

motor part, motor components, motor accessories
