Model: NNDPJ-HXQ-551A
The hSilver grades cummutator have a higher conductivity than copper grades and form a special.
Categoryes: Commutator
24 segment Booster pump hook type silver copper commutator
24 bars silver copper commutator is for Booster pumps.
Silver grades cummutator have a higher conductivity than copper grades and form a special.
Each individual copper element is a bar joined on one end via connection in form of hook or groove with the end of the armature winding coil.
0.03% silver content is suitable for less than 450w, with better wear resistance and conductivity.
0.08% silver content is suitable for 450-750w motors
For a 750W motor, you can consider using 0.08% AgCu, if you use 0.2% AgCu, the quality will be better.
Booster pump hook type silver copper commutator details
| Product name: | Booster pump hook type silver copper commutator |
|
Outside diameter: |
25 |
| Bore: | 8.4 |
| Total height: | 17.2 |
| Bars: | 24 |
| Material | 0.03% or0.08%silver/ Copper |
| Structure | Segmented hook/ groove commutator |
| Usage | industrial motor spare parts |
| Voltage | 12V 24V 48V 60V |
| Delivery | 20-50 working days |
| Packing | Plastic box/carton/pallet/customized |
| Production capacity | 500,000pcs/month |

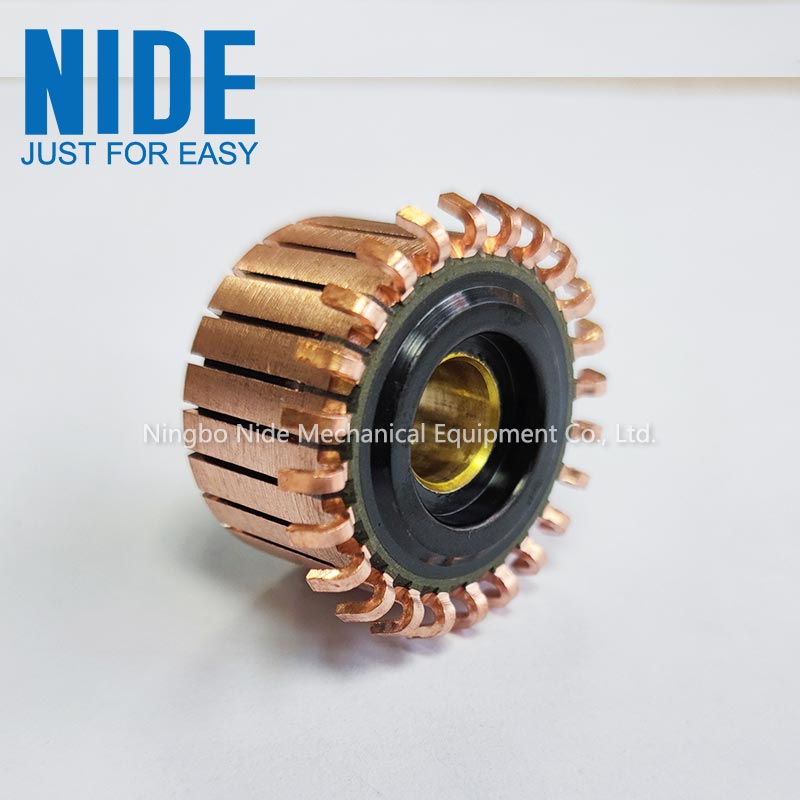

Booster pump hook type silver copper commutator show
Nide produces more than 1200 different types of motor commutator, including hook type, riser type, shell type, planar type, ranging from OD 4mm to OD 150mm and we are professional in manufacturing commutator for many years. The commutators are widely applied to automotive industry, power tools, household appliances, and other motors.If our existing models are not suitable for you, we could also develop new tooling according to your drawing and samples.
Besides, we can supply the full range of motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper material, shaft, magnet, fan, motor cover,etc.
