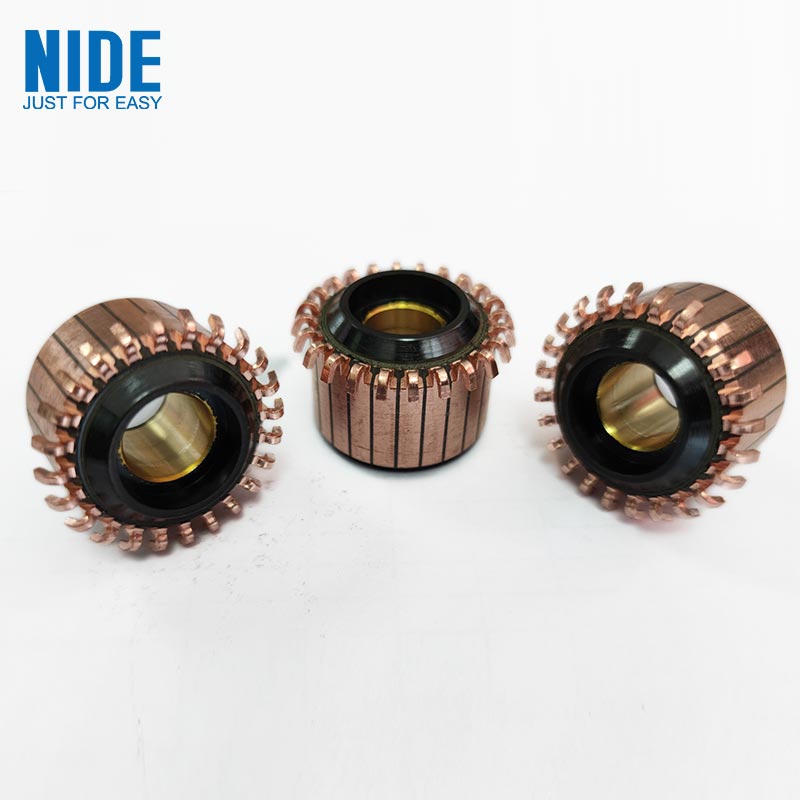

24 slot motor accessories commutator for power tool

Model:NDPJ-HXQ-480

The Hook Commutators are widely used in various electric tools, automobiles, motorcycles, household appliances and other motors.

Categoryes: Commutator

Details

24 slot motor accessories commutator power tool hook type commutator

Haishu NIDE develops and produces various commutators and collectors, and we can customize commutators according to customer needs.

Commutator application

Commutators are widely used in various electric tools, automobiles, motorcycles, household appliances and other motors.

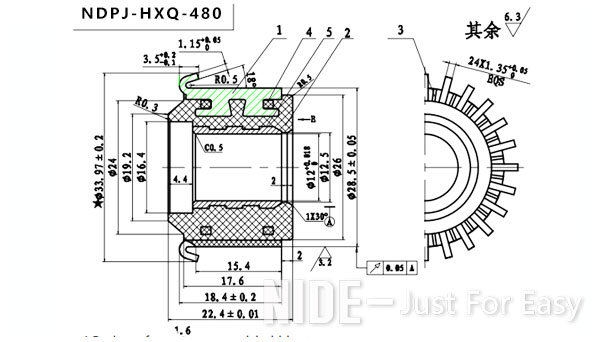

Commutator parameters

Product: 24-slot hook type commutator/collector

Size: 28.5*12*22.5mm

Material: Copper/Silver

Commutator Features

1.Resin surface no crack,bubble,etc

2.Dielectric strength: bar-bar 500VAC, 1s,bar-shaft 4800VAC,1MIN,no break down or

flash

3.Spin test: 180°,33000rpm,3min, OD deviation 0.01max,bar-shaft deviation 0.005max

4.Insulation resistance: room temperature, 500VDC mega meter, insulation resistance >

100MΩ

5.Unmarked tolerance accord with GB/T1804-m

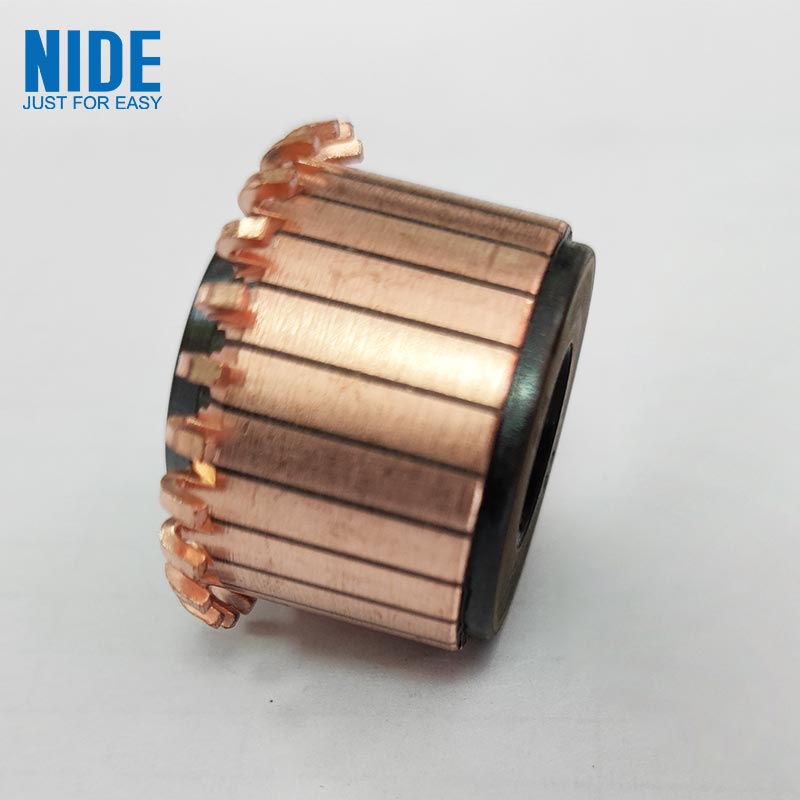

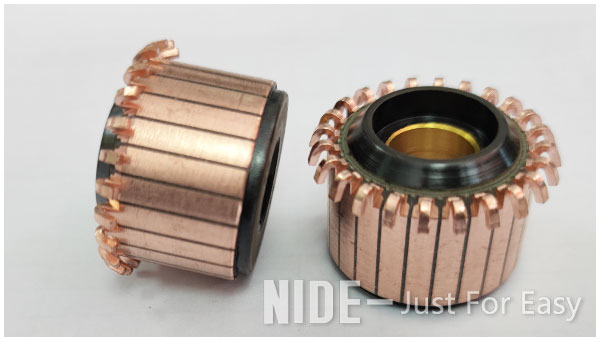

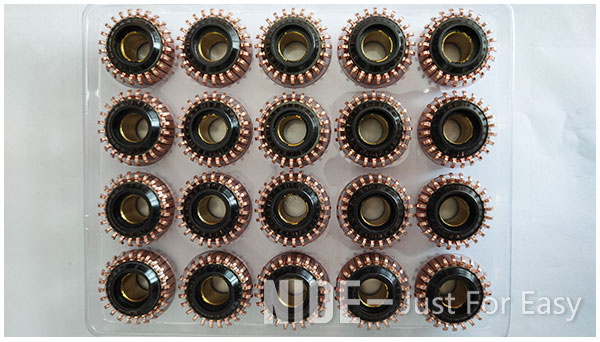

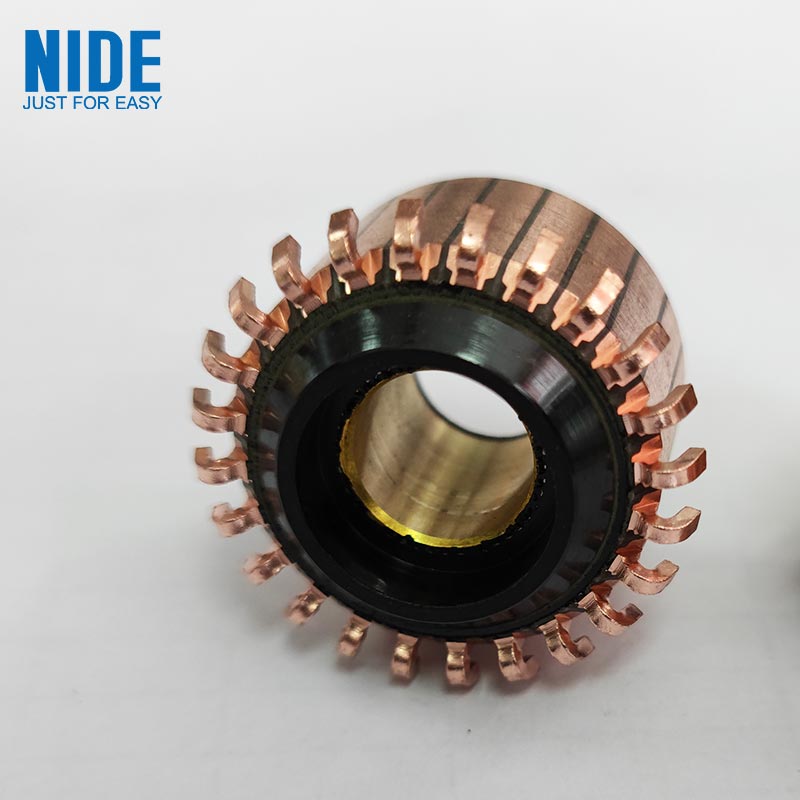

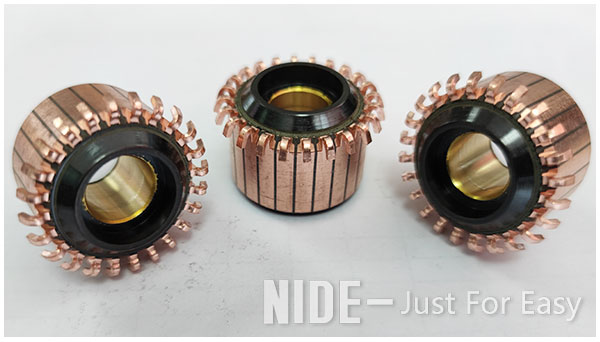

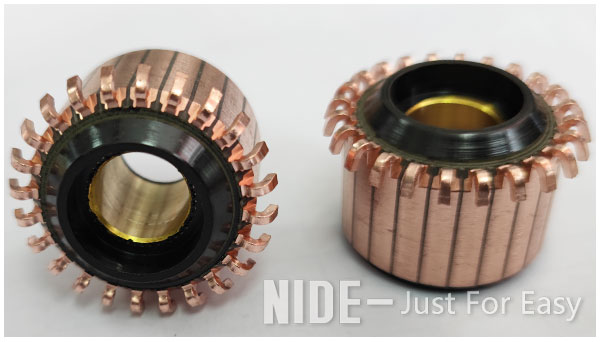

Commutator Picture

About Motor component and accessories

NIDE can supply the full range of electric motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
