Your current location:Home > Products > Thermal Protector > Household appliances KW thermal protector for washing machine
Household appliances KW thermal protector for washing machine

 Model:NDPJ-RBHQ-58

Thermal protectors are suitable for household appliances, air conditioners, washing machines, microwave ovens, automobile motors, fire cables, motors, water pump motors, transformers, lamps, instruments, medical machinery, etc.

CONTACT US
Details

Thermal protector product parameters

Product name: Household appliances thermal protector
Temperature range: 45-170°C, can be customized according to customer needs
Electrical specifications:  DC (DC voltage) 5V/12V/24V/72V, AC (AC voltage) 120V/250V, can be customized according to customer needs
Current range:  1-10A, can be customized according to customer needs
Shell material:  high temperature plastic shell (non-metallic), iron shell, stainless steel shell, can be customized



Thermal protector application

Household appliances, air conditioners, washing machines, microwave ovens, automobile motors, fire cables, motors, water pump motors, transformers, lamps, instruments, medical machinery, etc.



The working principle and characteristics of thermal protector:

KW thermal protector is a kind of bimetal with constant temperature as a sensitive element. When the temperature or current rises, the heat generated is transferred to the bimetal disc, and when it reaches the rated operating temperature value, it will act quickly to disconnect the contacts and cut off the circuit; when the temperature drops

When the preset reset temperature setting value is reached, the bimetal disc will quickly recover, so that the contacts are closed and the circuit is connected.

The thermal protector has the characteristics of small size, large contact capacity, sensitive action and long life.

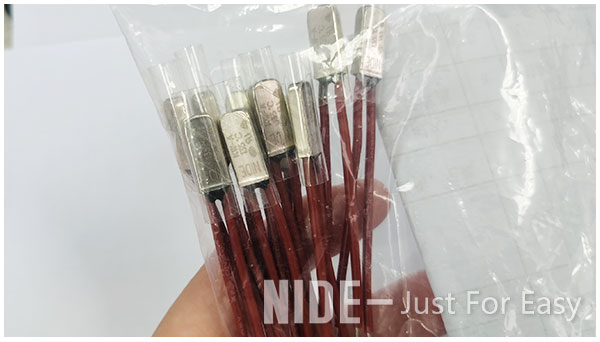

Thermal Protector Picture:

thermal protector

Thermal Protector Structure:

1. Customized lead wire: Customized wire material, length and color according to customer needs

2. Customized metal shell: Customize different material shells according to customer needs, including plastic shells, iron shells, stainless steel shells, and other metal shells.

3. Customized heat shrinkable sleeve: Customize different high temperature resistant polyester heat shrinkable sleeves according to customer needs




About Motor component and  accessories

NIDE can supply the full range of electric motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.

motor components
