24P Food Blender Motor Commutator 25x8x22.8 For Home Appliance Spare Parts

This hook type commutator is suitable for household appliances such as mixers, grinders, egg beaters, juicers, soymilk machines, etc.

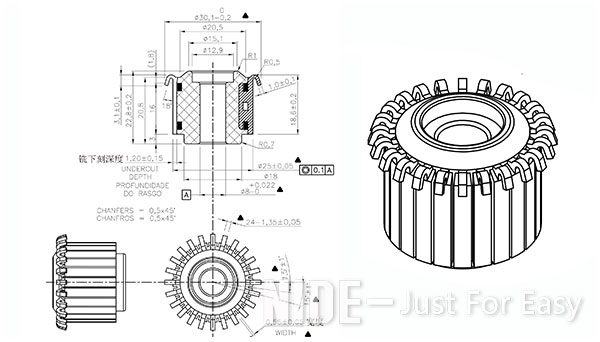

Blender Motor Commutator Technical Parameter

The above data is for reference only. NIDE can customize various types of commutators according to customer needs. If you need it, please feel free to contact us.

Motor Commutator Appication

NIDE provides more than 1200 kinds of commutator manufacturing, which are widely used in household machines, automotive motor industry, power tools, industrial motors, etc.

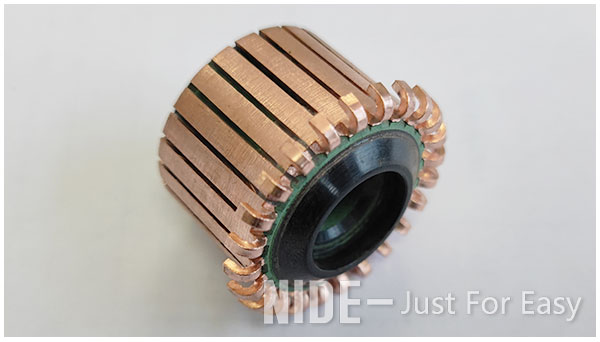

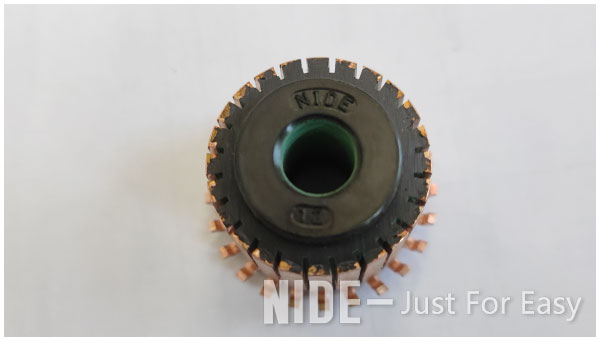

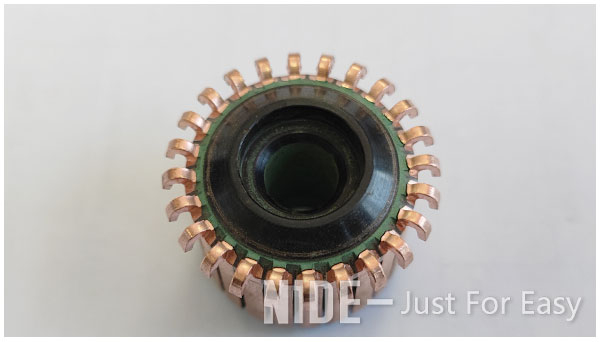

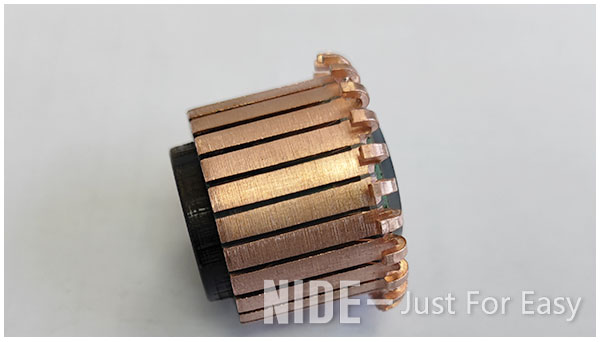

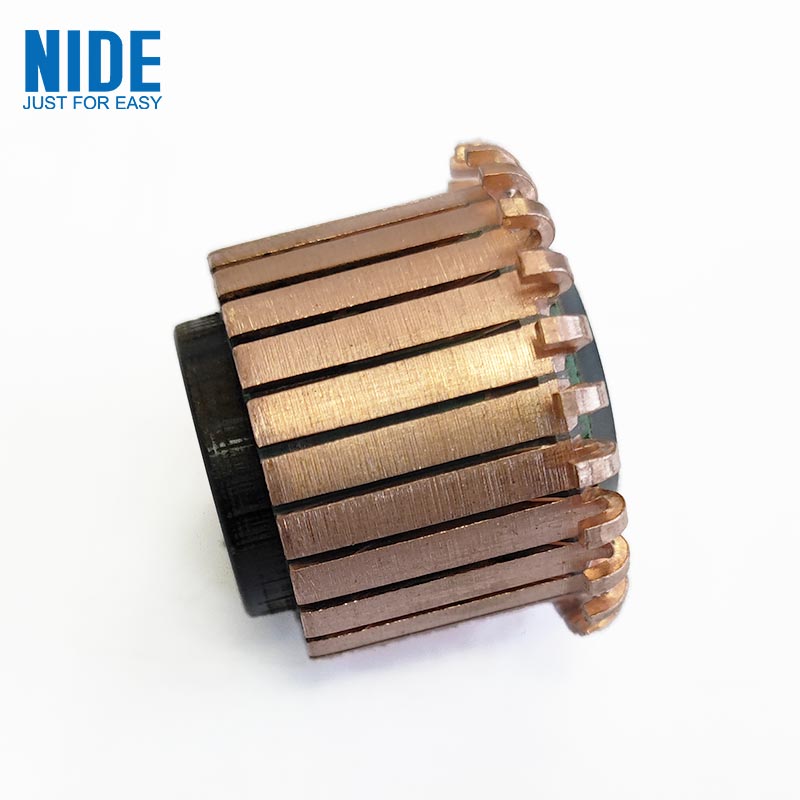

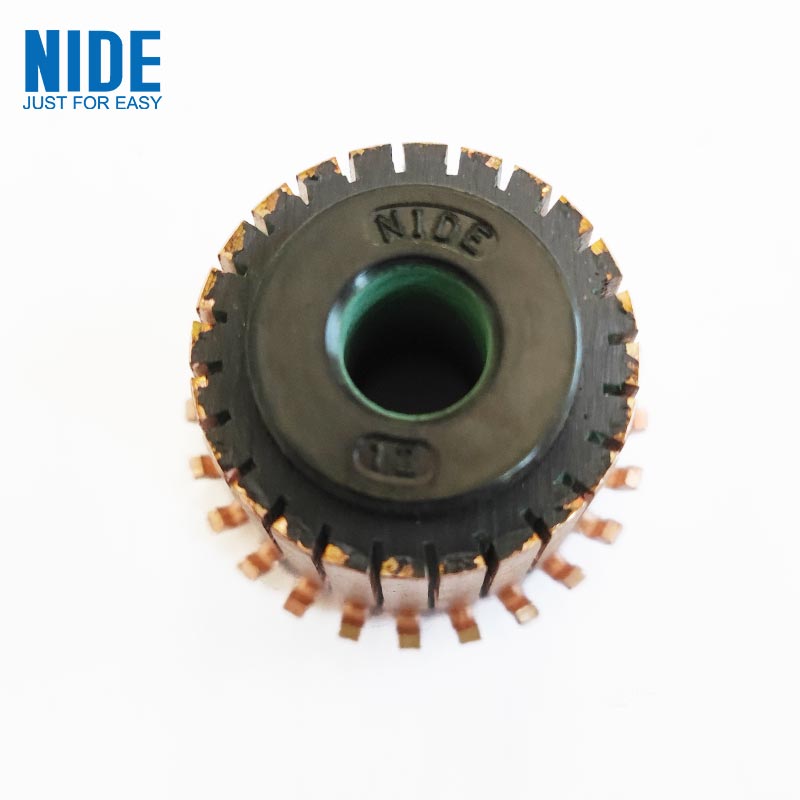

Blender Motor Commutator Picture

Information needed for commutator inquiry:
It will be better if customer could send us detailed drawing including below information.
1. Commutator dimension: OD, ID, total height, and copper height, bar number.
2. Commutator type: hook type, raiser type or planner
3. Copper material: Agcu/ Cu
4. Commutator applications
5. Required quantity
6. Copper bush needed or not

7. Other technical requirement.

Nide produces more than 1200 different types of motor commutator, including hook type, riser type, shell type, planar type, ranging from OD 4mm to OD 150mm and we are professional in manufacturing commutator for many years. The commutators are widely applied to automotive industry, power tools, household appliances, and other motors.If our existing models are not suitable for you, we could also develop new tooling according to your drawing and samples.

Besides, we can supply the full range of motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper material, shaft, magnet, fan, motor cover,etc.
