24 Segmented Commutator For DC Motor
1. Commutator Description
The 24 Segmented Commutator includes a reversing base made of bake lite powder material and a hook-type reversing copper sheet uniformly arranged on the circumference of the reversing base body. The characteristic is that the reinforcing ring arranged in the reinforcing ring groove is surrounded by multiple rings. The number of ceramic beads is the same as the number of hook-type commutating copper plates.The top of the hook-type reversing copper sheet is provided with a hook. Reinforced ring grooves are provided on the upper and lower end surfaces of the reversing copper sheet, and the adjacent hook-type reversing copper sheets are insulated and isolated by mica sheets.
2. Commutator Parameter (Specification)
| Product Name : | 24 segmented Commutator for DC Motor |
| Color : | Copper Tone |
| Material : | Copper, Steel; 0.03% Or 0.08% Silver Copper |
| Type : | Hook commutator |
| Tooth Quantity : | 24 Pcs |
| Usage: | DC MOTOR |
| Size: | Customized |
3. Commutator Application
The commutators are widely applied to automotive industry, automobile motor ,power tools, household appliances, and other motors.

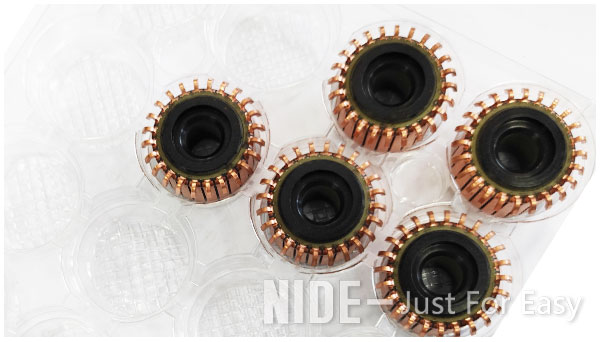

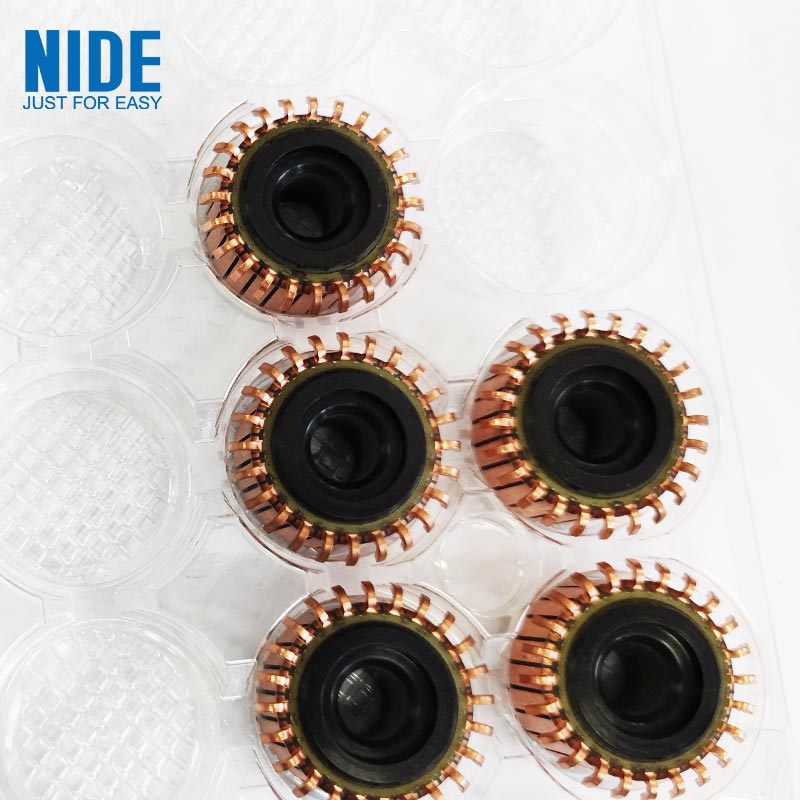

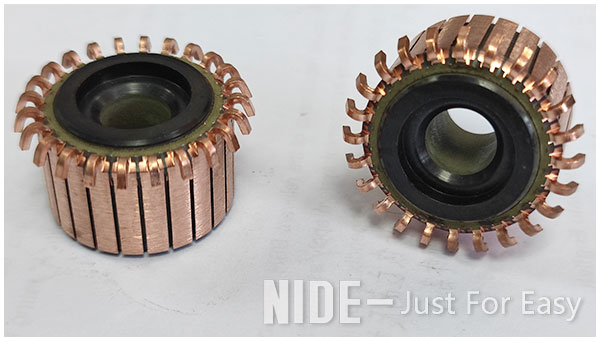

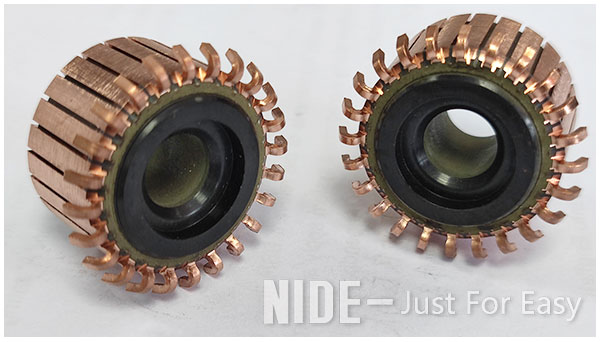

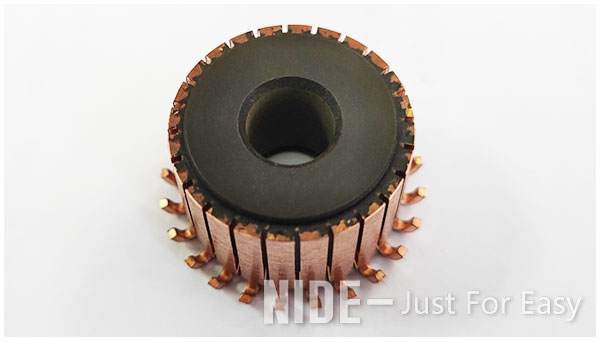

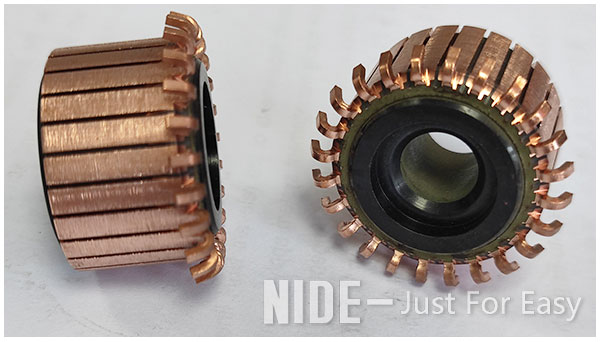

4. Commutator Picture

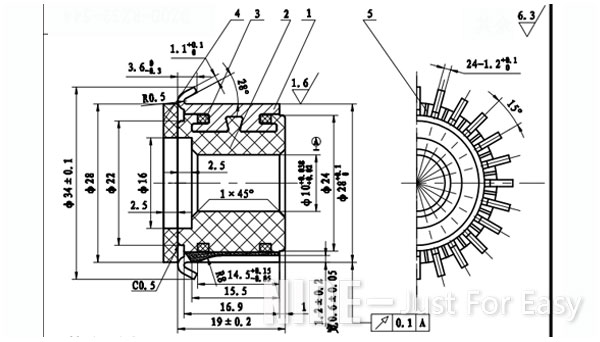

5. Commutator Drawing
Information needed for commutator inquiry:
It will be better if customer could send us detailed drawing including below information.
1. Commutator dimension: OD, ID, total height, and copper height, bar number.
2. Commutator type: hook type, raiser type or planner
3. Copper material: Agcu/ Cu
4. Commutator applications
5. Required quantity
6. Copper bush needed or not
7. Other technical requirement.
Nide produces more than 1200 different types of motor commutator, including hook type, riser type, shell type, planar type, ranging from OD 4mm to OD 150mm and we are professional in manufacturing commutator for many years. The commutators are widely applied to automotive industry, power tools, household appliances, and other motors.If our existing models are not suitable for you, we could also develop new tooling according to your drawing and samples.
Besides, we can supply the full range of motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper material, shaft, magnet, fan, motor cover,etc.
