Model:NDPJ-HXQ-1007
The commutator is suitable for car radiator cooling fan motor.
Categoryes: Commutator

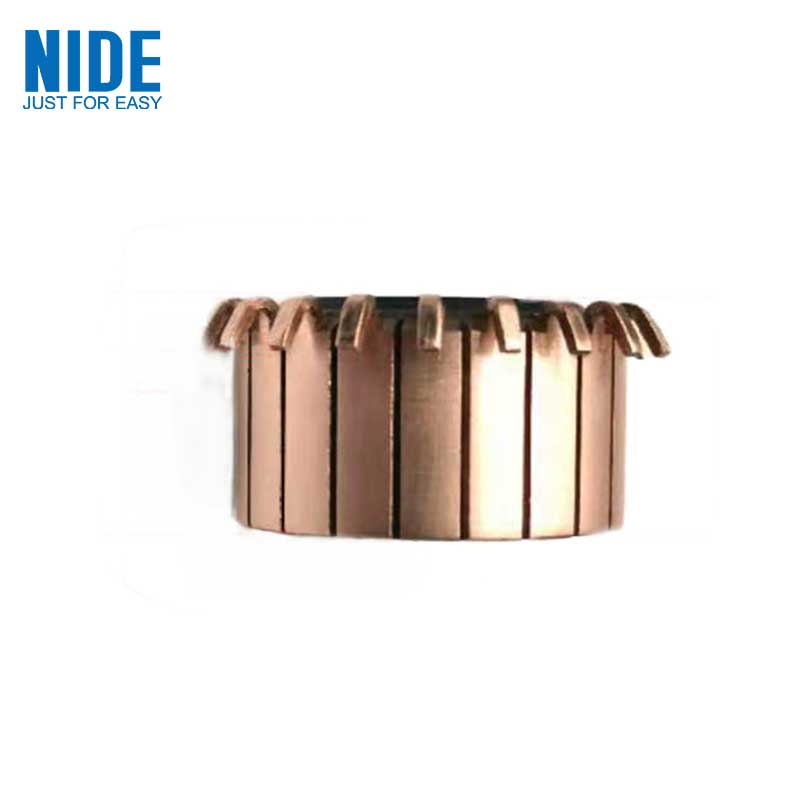

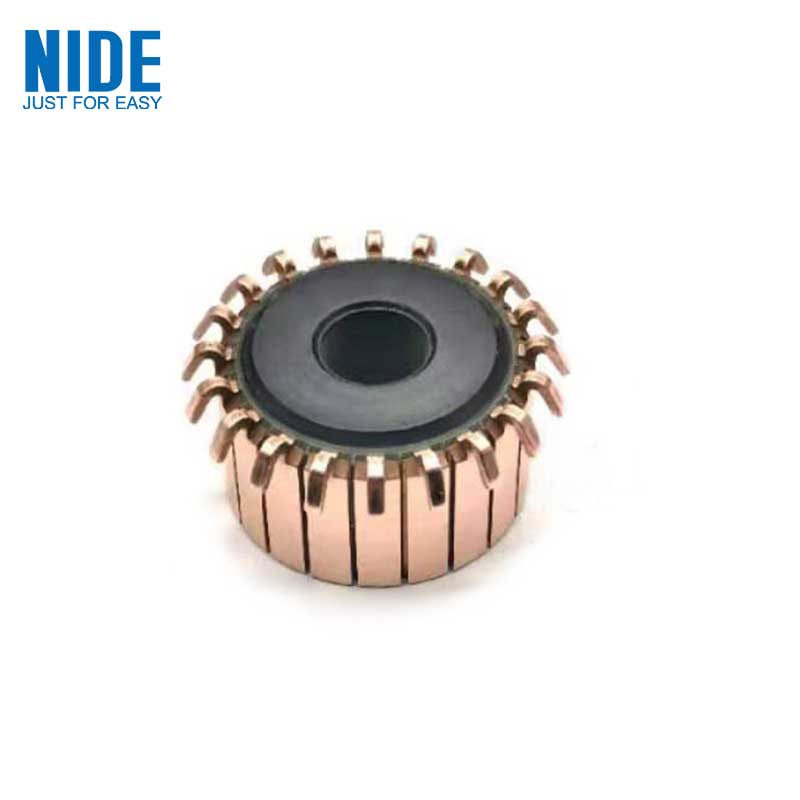

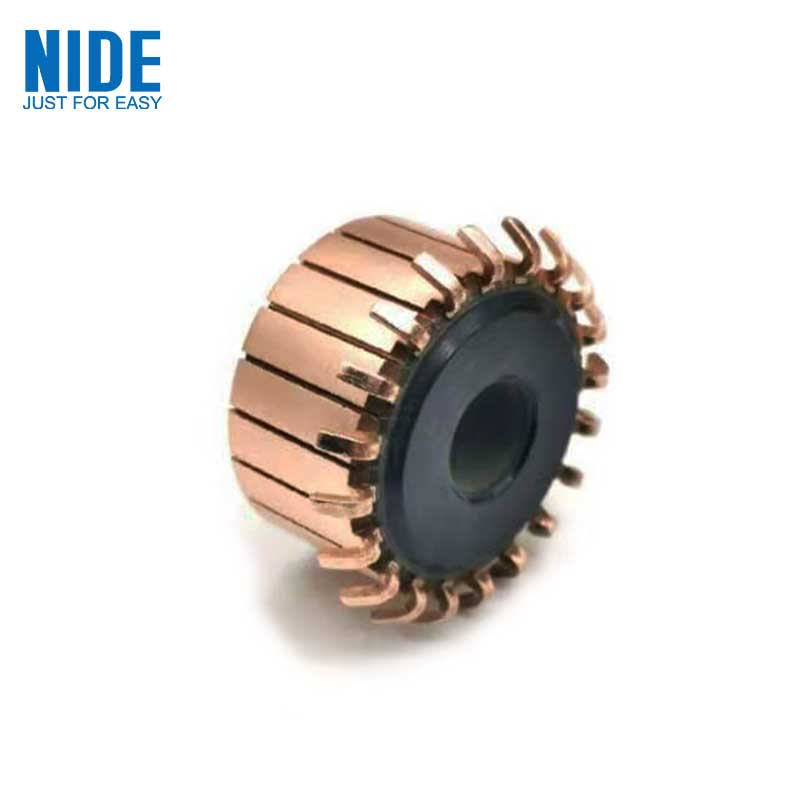

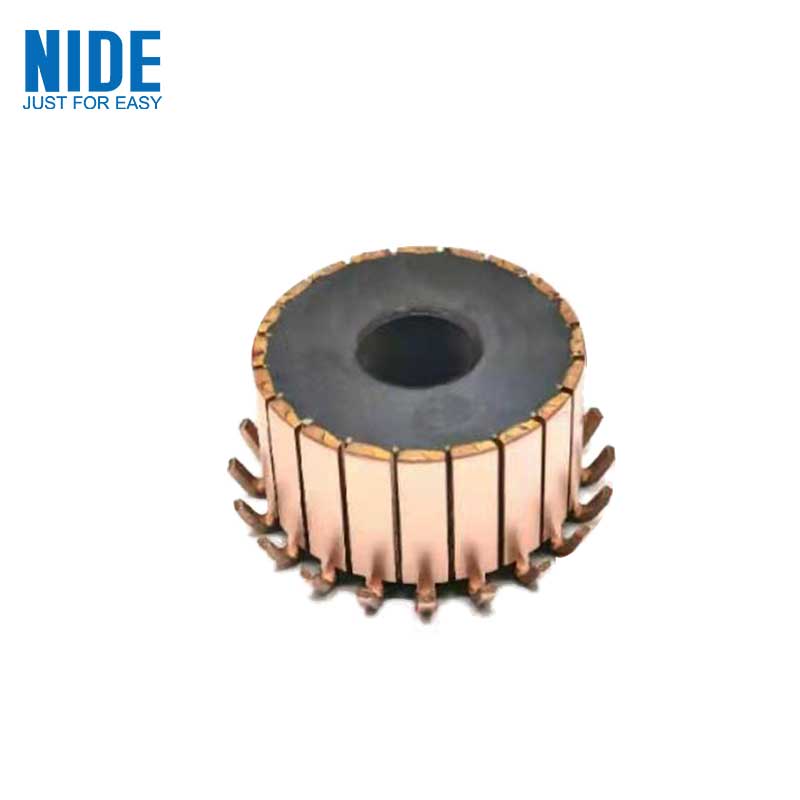

Car radiator cooling fan motor commutator for automobile DC motor spare part
The commutator is suitable for car radiator cooling fan motor.NIDE provides more than 1200 kinds of commutator manufacturing, which are widely used in household machines, automotive motor industry, power tools, industrial motors, etc.
Commutator parameters
| Product: | Car radiator cooling fan motor Hook Commutator |
| Dimensions: | 25x8x22.8 |
| Bars: | 20P |
| Material: | Silver/Copper/Bakelite |
| MOQ: | 10000 |
| Type: | Hook type commutator |
| Application | Home Appliance Spare Parts |
Product advantages:
High dielectric strength between chips,
no breakdown or flicker occurs;
insulation resistance ≥ 100MΩ,
AC frequency at 50HZ / 60HZ,
excellent electrical and mechanical properties,
stable structure,
high dimensional accuracy,
small uniform angular error of commutator,
high product hardness ,
Good abrasion resistance,
high tensile strength,
stable thermal performance and long service life.

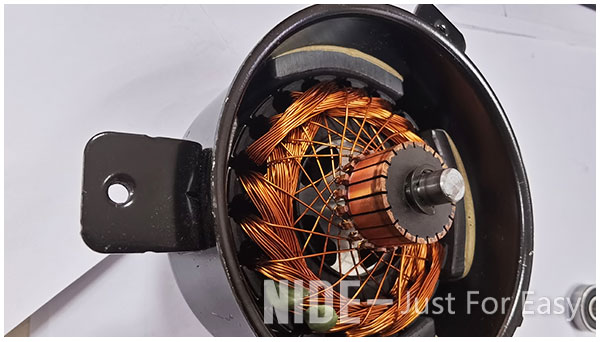

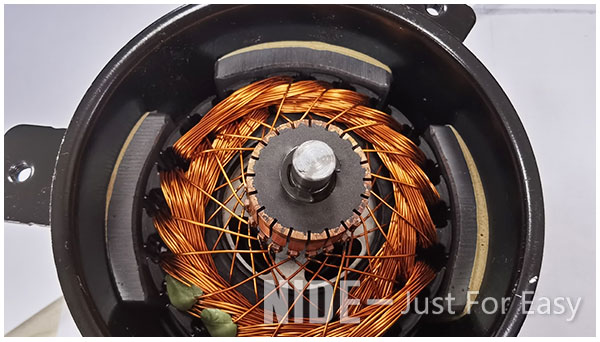

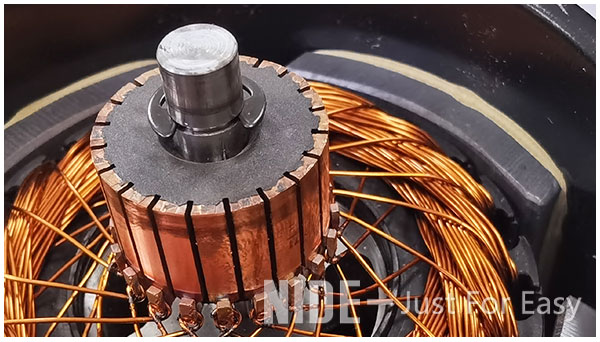

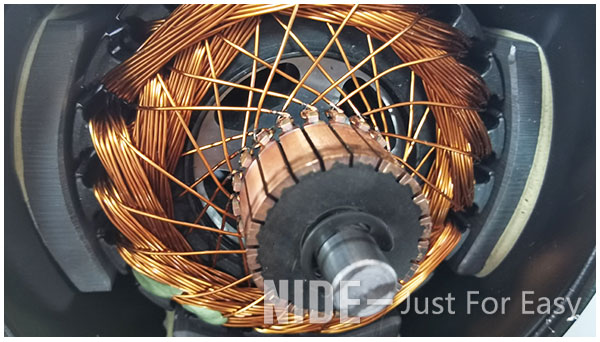

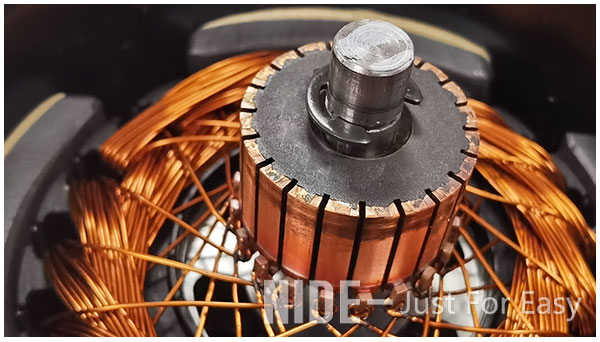

Picture show:
NIDE specializes in the production of various motor commutators. We have rich experience in commutator production, strong technical force, advanced production equipment, strict control of commutator raw materials, and complete management system.
The treadmill DC Motor commutator products produced by our company have high precision, the quality is stable and the sales are wide.
We serve customers around the world in various industry sectors, including aircraft, railway, transit systems, industrial mechanical,power tools , marine, elevators, household appliances and other fields.
Information needed for commutator inquiry:
It will be better if customer could send us detailed drawing including below information.
1. Commutator dimension: OD, ID, total height, and copper height, bar number.
2. Commutator type: hook type, raiser type or planner
3. Copper material: Agcu/ Cu
4. Commutator applications
5. Required quantity
6. Copper bush needed or not
7. Other technical requirement.
If possible, it will better if customer could send us samples.
Nide produces more than 1200 different types of motor commutator, including hook type, riser type, shell type, planar type, ranging from OD 4mm to OD 150mm and we are professional in manufacturing commutator for many years. The commutators are widely applied to automotive industry, power tools, household appliances, and other motors.If our existing models are not suitable for you, we could also develop new tooling according to your drawing and samples.
Besides, we can supply the full range of motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper material, shaft, magnet, fan, motor cover,etc.
