Your current location:Home > Products > Carbon brush > electric part Carbon brush

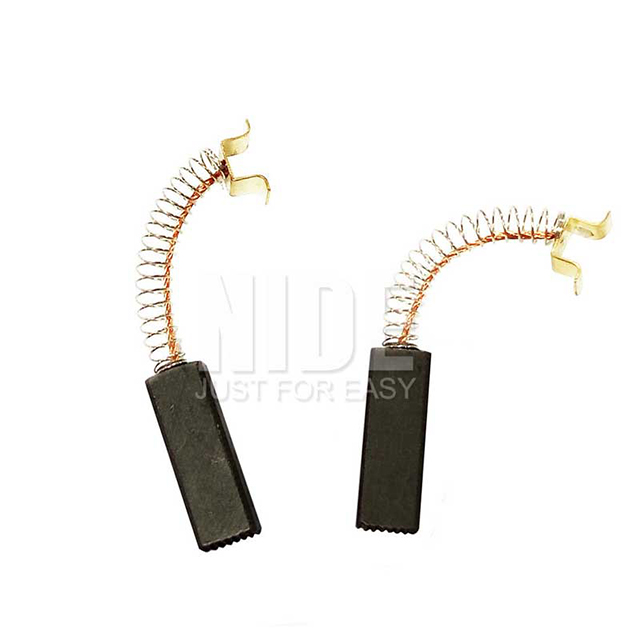

electric part Carbon brush

NDPJ-TS-1

CONTACT US
Details

Nide is specialized in carbon brush produce. Nide possess a complete set of advanced and special equipment for carbon brush production and inspection to guarantee our quality. Nide team will provide customers with advanced technology, first class quality and best service, will be always at your service.



Technical requirement

Material

Model

resistance

Bulk density

Rated current density

Rockwell hardness

loading

Natural graphite



S3

11±30%

1.66±10%

11

77(-60%~+22%)

60KG

G4

15±30%

1.73±10%

11

83(-60%~+22%)

60KG

Advantage:    running stable, temperature rising slow

Application: suitable for 80-120V DC motor



 Carbon brush features

1) Good quality

2) small spark

3) low noise

4) long duration

5) good lubrication performance

6) good electric conductivity



Information needed for carbon brush inquiry:

It will be better if customer could send us detailed drawing including below information.

1. Carbon brush dimension: length, width, height, lead wire length

2. Carbon brush material:

3. Carbon brush voltage and current requirement.

4. Carbon brush applications

5. Required quantity

6. Other technical requirement.

 If possible, it will better if customer could send us samples.



We have a wide range of carbon brush. Our carbon brush has a wide application, such as automotive industry, household appliances, hammers, planers and etc. We directly supply our carbon brushes to many countries, like USA, France, Turkey, Iran, India, Brazil, Argentina, Mexico etc. We could customize carbon brush for our customer.

carbon brush

motor carbon brush


About Motor component and  accessories

NIDE can supply the full range of electric motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.

motor part, motor components, motor accessories
