Electric AC Motor Armature Commutator

 Model:NDPJ-HXQ-1013

Our Commutator mainly has hook type, groove type, plane type and other specifications, using high-quality raw materials, widely used in power tools, automobiles, household appliances, motorcycle motor and other fields.



Categoryes: Commutator

CONTACT US
Details

Electric AC Motor Armature Commutator 8X18.9X15.65mm



NIDE can supply various types of motor armature commutators, including mechanical commutators, semi - plastic commutators, plastic commutators. Our Commutator mainly has hook type, groove type, plane type and other specifications, using high-quality raw materials, widely used in power tools, automobiles, household appliances, motorcycle motor and other fields.



Commutator Parameters

Product Name:  12P Electric AC Motor Armature Commutator
Material:  Copper
Type:  Hook Commutator
Hole diameter  : 8mm
Outer diameter: 18.9mm
Height : 15.65mm
Slices : 12P
MOQ: 10000P



Commutator Application

The Commutator is mainly used for DC motor ,generator, series motor, universal motor.

In an electric motor, the commutator applies current to the windings. The direction of the current in the rotating winding is twisted every half turn to produce a stable rotating moment.

In a generator, the commutator reverses the direction of current with each turn and acts as a mechanical rectifier to convert alternating current in the windings to unidirectional direct current in the external load circuit.

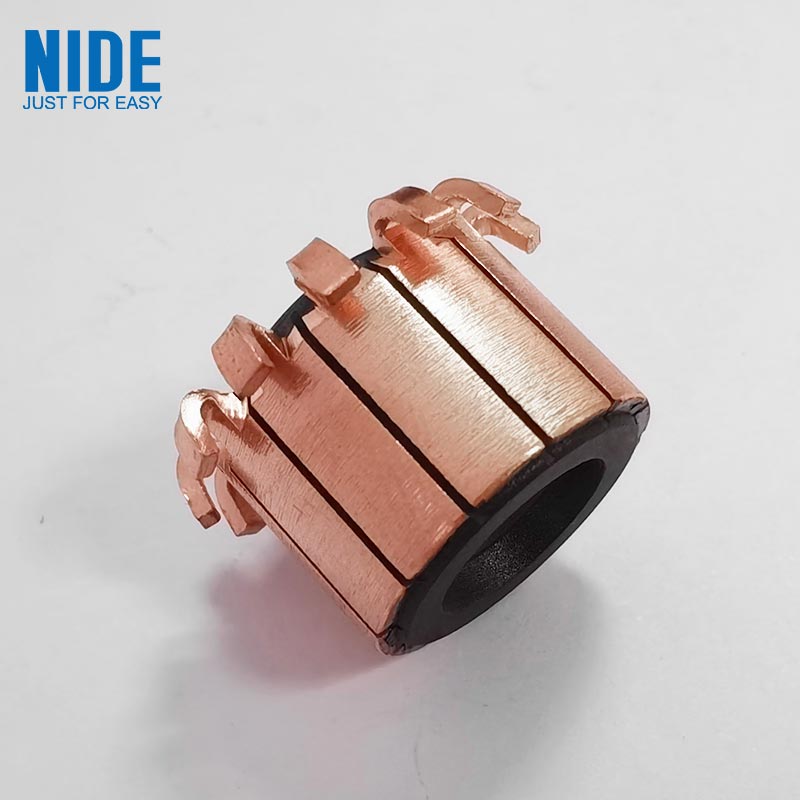

Commutator Picture





Information needed for commutator inquiry:
It will be better if customer could send us detailed drawing including below information.
1. Commutator dimension: OD, ID, total height, and copper height, bar number.
2. Commutator type: hook type, raiser type or planner
3. Copper material: Agcu/ Cu
4. Commutator applications
5. Required quantity
6. Copper bush needed or not

7. Other technical requirement.



Nide produces more than 1200 different types of motor commutator, including hook type, riser type, shell type, planar type, ranging from OD 4mm to OD 150mm and we are professional in manufacturing commutator for many years. The commutators are widely applied to automotive industry, power tools, household appliances, and other motors.If our existing models are not suitable for you, we could also develop new tooling according to your drawing and samples.





Besides, we can supply the full range of motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper material, shaft, magnet, fan, motor cover,etc.
