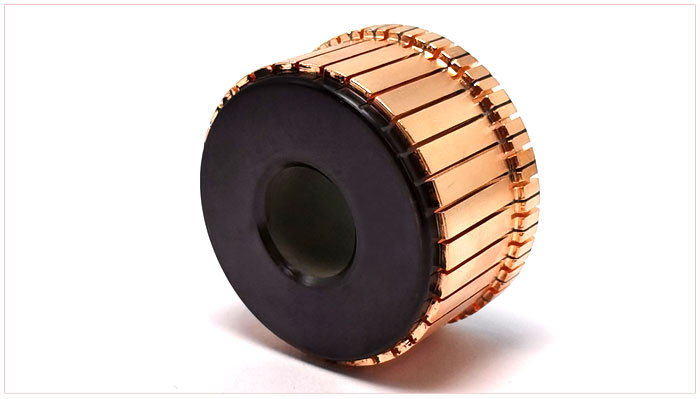

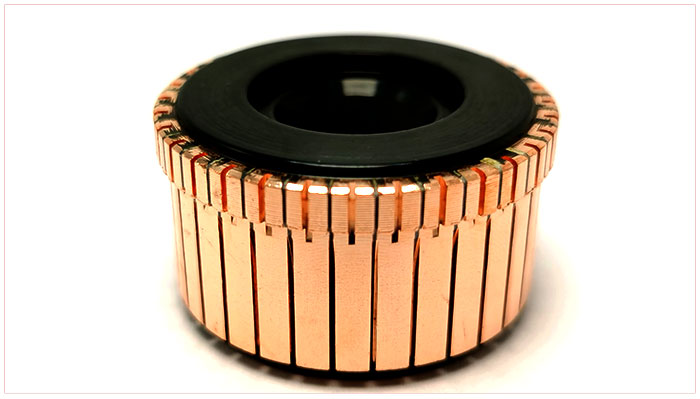

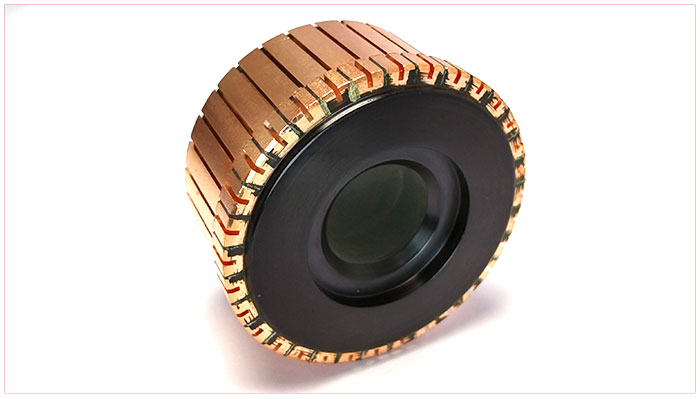

Wholesale Household Fitness Equipment Motor Rotor Segment Commutator 32P

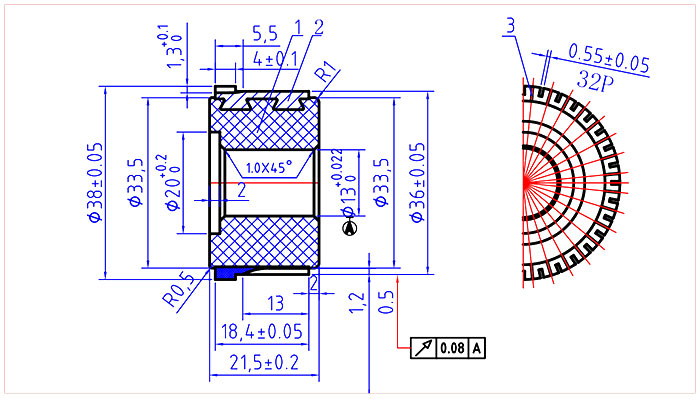

Commutator parameters

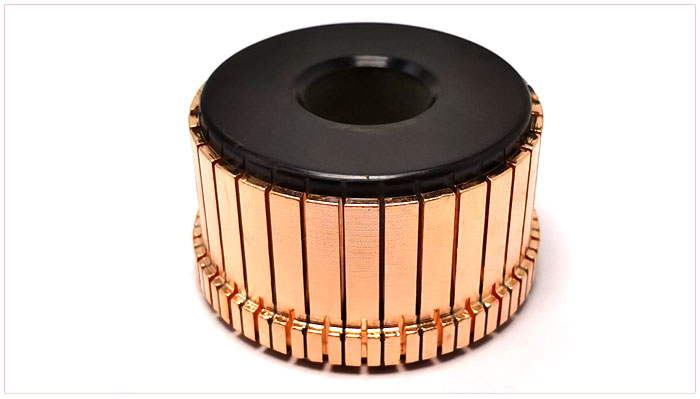

Product name: Household Fitness Equipment Motor Armature Commutator

OD 36mm

ID 13mm

Height 21.5mm

Bar NO 32P

Competitive advantages:
1.We could customize commutator for our customer.
2. Our commutator has a wide application, such as automotive industry, household appliances, hammers, planers and etc.
3. We have a wide range of commutator. Nide produces more than 1200 different types of commutator, including hook type, riser type, shell type, planar type, ranging from OD 4mm to OD 150mm.

We could design and manufacture accoring your requirements.Welcome to your kind inquiry.

Part No.	O.D (D)	I.D (d)	Total O.D (D1)	Bar No.(N)	Bar length (L1)	Total length (L)
JZQA-RS12-00B	42	17	56.5	27	34	37
JZQA-RS12-08	48	16	52	63	27	30
JZQA-RS12-19	36	14.5		19
JZQA-RS11-20	84	28	91	69	36.5	38.5
JZQA-RS31-20B	82	28	91	69	36.5	38.5
JZQA-RS31-20C	82	28	91	69	36.5	38.5
JZQA-RS11-21	61	20	64	72	27.4	31
JZQB-RS31-22	38.6	15.5	54	23	35.5	41
JZQA-RS11-23	33	13	47	25	27	29.5
JZQA-RS12-24	28.5	13	39	21	23	26
JZQA-RS12-24B	28.5	13	39	21	23	26
JZQA-RS11-25	37	15	47	27	31	34
JZQA-RS11-25	37	15	47	27	31	34
JZQA-RS11-26	37	15	52	23	36.3	39
JZQA-RS11-26B	39.5	15	52	23	36	39
JZQA-RS11-26C	37	15	52	23	36.3	39
JZQA-RS11-26D	37.5	14	52.5	23	36.3	38.5
JZQA-RS12-32	42	18	45	42	27	30
JZQA-RS12-32B	42.5	18	45	42	27	30
JZQA-RS12-32C	42	18	45	42	27	30
JZQA-RS12-37	34	13	51	28	23	26
JZQA-RS12-37B	33	13.1	51	28	23	26
JZQA-RS12-38	34	13	51	28	27	30
JZQA-RS12-38B	33	13.1	51	28	27	30
JZQA-RS12-39	46.5	17	52	40	25	30
JZQA-RS12-39B	46	17	52.5	40	25	30
JZQA-RS12-39C	46	17	52.5	40	24	26
JZQA-RS12-40	46.5	17	56	40	25	30
JZQA-RS12-40B	46.5	17	56	40	25	30
JZQA-RS11-46	36	15.74	46	19	21	23.5
JZQA-RS11-46B	36	15.8	46	19	21	23.5
JZQA-RS11-46C	36	15.8	46	19	21	23.5
JZQB-RS11-48	115	39.5	138	56	88	141
JZQA-RS12-49	35.5	16	38.5	42	27	29.5
JZQA-RS11-50	51.5	20	56	72	22	24
JZQA-RS11-50B	51.5	20	56	72	22	24
JZQA-RS12-51	55.6	18	60.5	63	30	35.5
JZQA-RS12-51B	58	17.6	60.5	63	30	32
JZQA-RS12-52	61.5	18	64	56	45	55
JZQA-RS12-53	81	25	87	72	51	61
JZQA-RS11-61	39	15	52	23	36.3	39
JZQA-RS11-62	40	15.5	58.5	21	35.5	40
JZQA-RS11-62B	40	15	58	21	35.5	40
JZQB-RS11-62C	40	15	58	21	35.5	40
JZQB-RS11-62D	40	15.5	58.5	21	35.5	40
JZQA-RS11-63	33	10	45.5	25	27	31
JZQA-RS11-66	33.5	16	47	25	21	24.8

Nide produces more than 1200 different types of motor commutator, including hook type, riser type, shell type, planar type, ranging from OD 4mm to OD 150mm and we are professional in manufacturing commutator for many years. The commutators are widely applied to automotive industry, power tools, household appliances, and other motors.If our existing models are not suitable for you, we could also develop new tooling according to your drawing and samples.





Besides, we can supply the full range of motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper material, shaft, magnet, fan, motor cover,etc.
