Customized Garden machinery slot commutator

Model:NDPJ-HXQ-B40

Categoryes: Commutator

CONTACT US
Details

Customized Garden machinery slot commutator industrial motor armature commutator

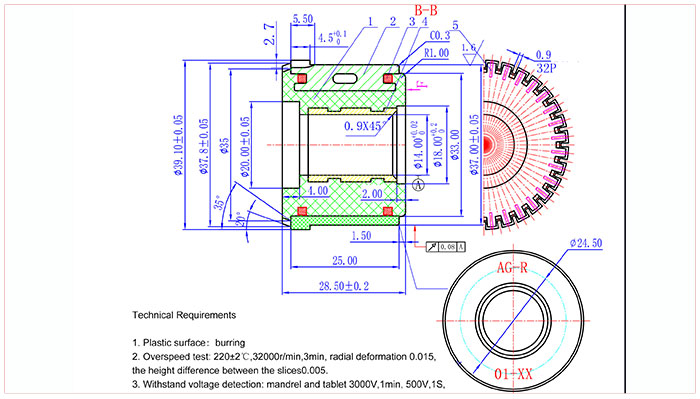

Commutator parameters

Product name: Garden machinery Motor Armature Commutator
OD: 37mm
ID : 14mm
Height : 28.5mm
Bar : 32P



We produce more than 1200 different type of commutator, including hook type, riser type, shell type,planar type, ranging from OD 4mm to OD 150mm, which widely apply to automotive industry, power tools, household appliances, and other motors, we should be highly appreciated if any specified inquiry from you, and sincerely wish there is a chance to be of service.

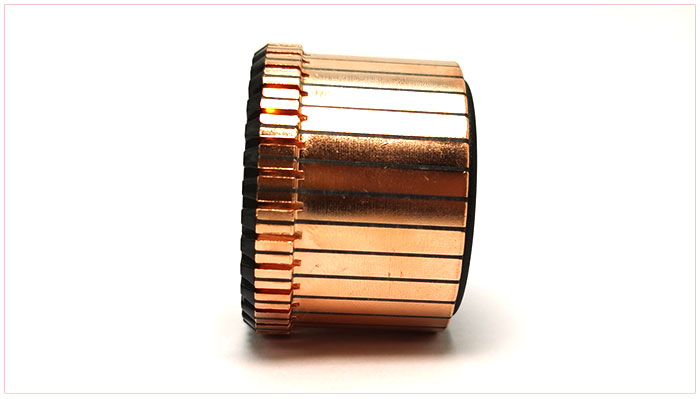

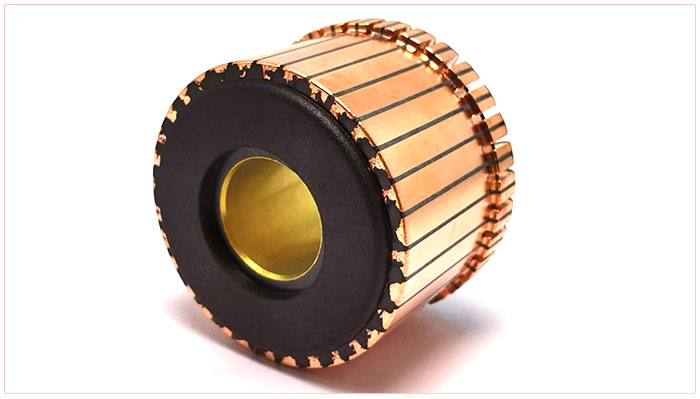

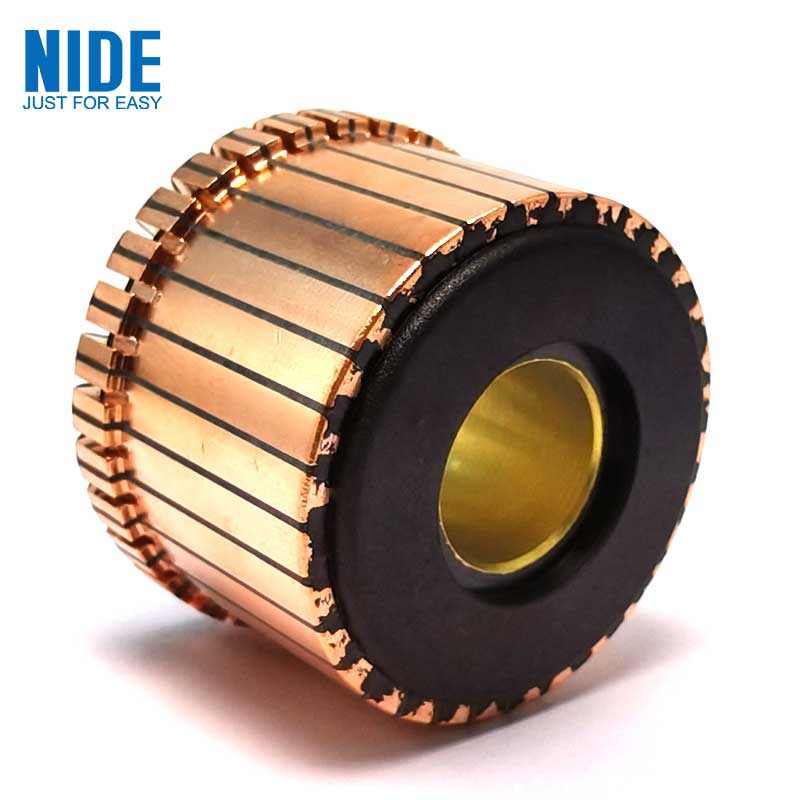

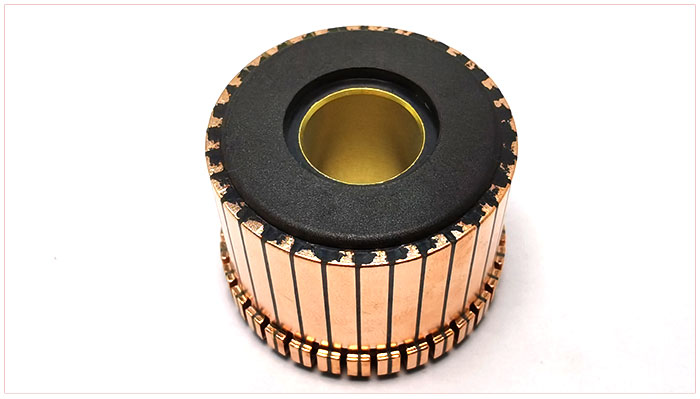

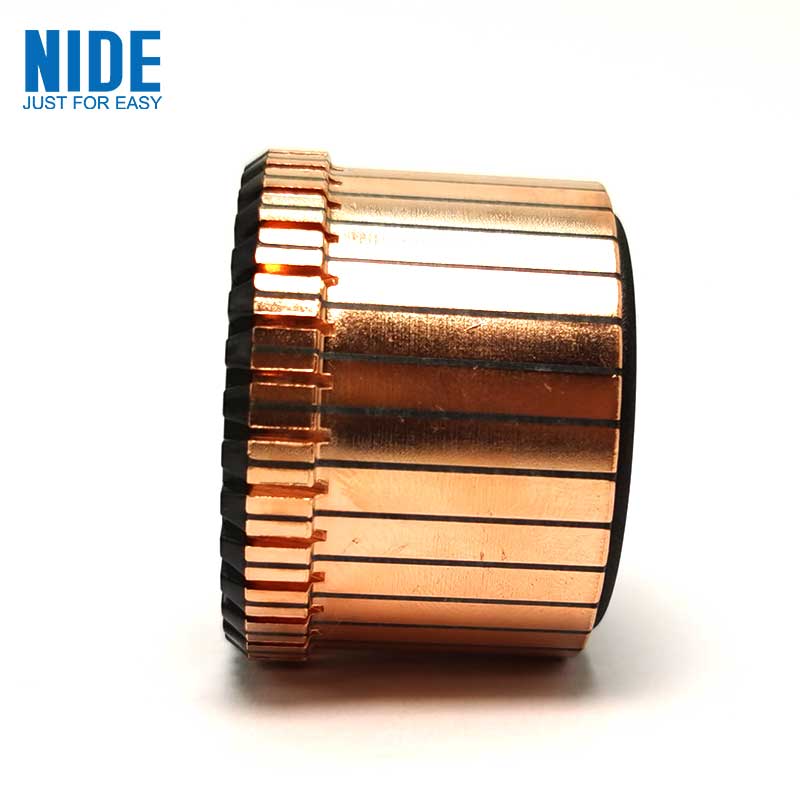

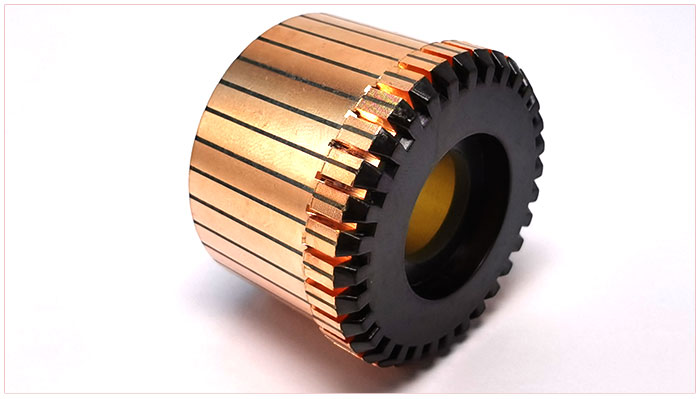

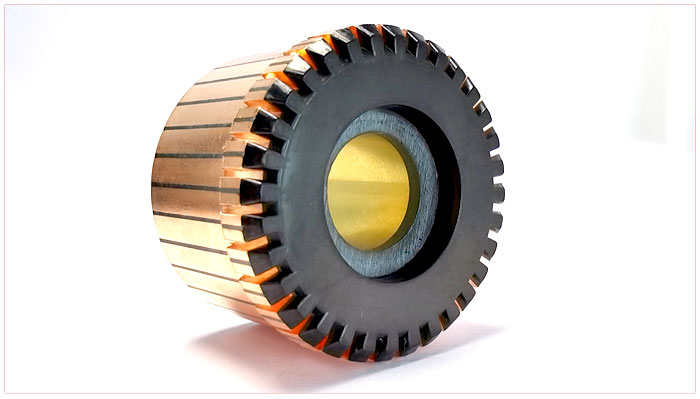

Picture show:

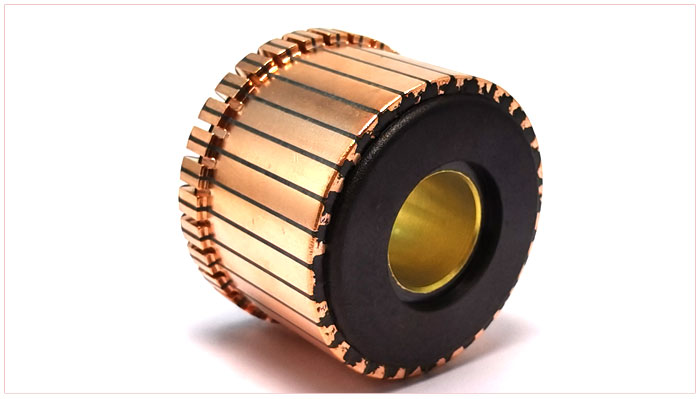

Garden machinery slot commutator

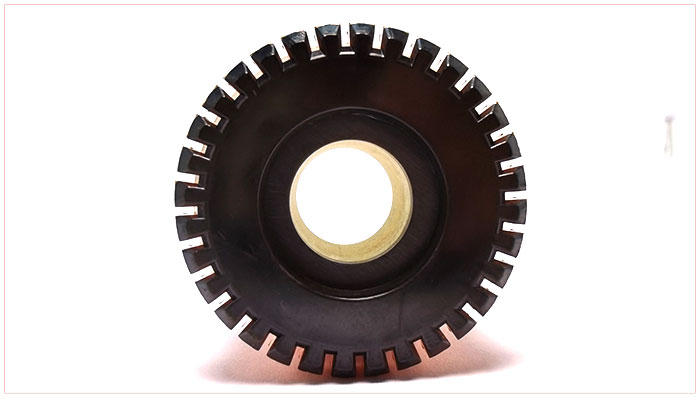

Garden machinery slot commutator supplier

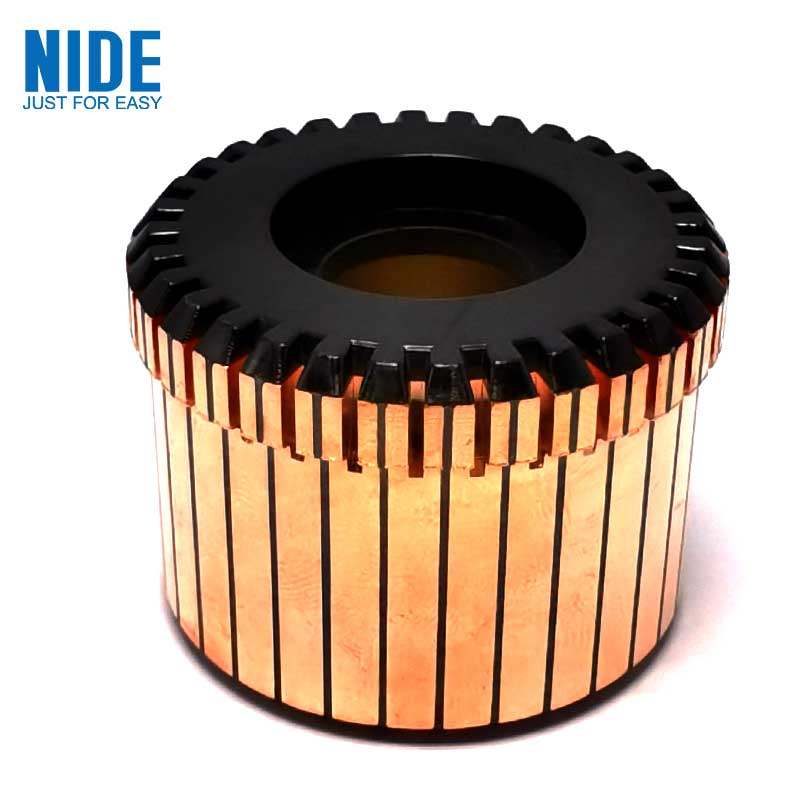

Garden machinery slot commutator manufacturer

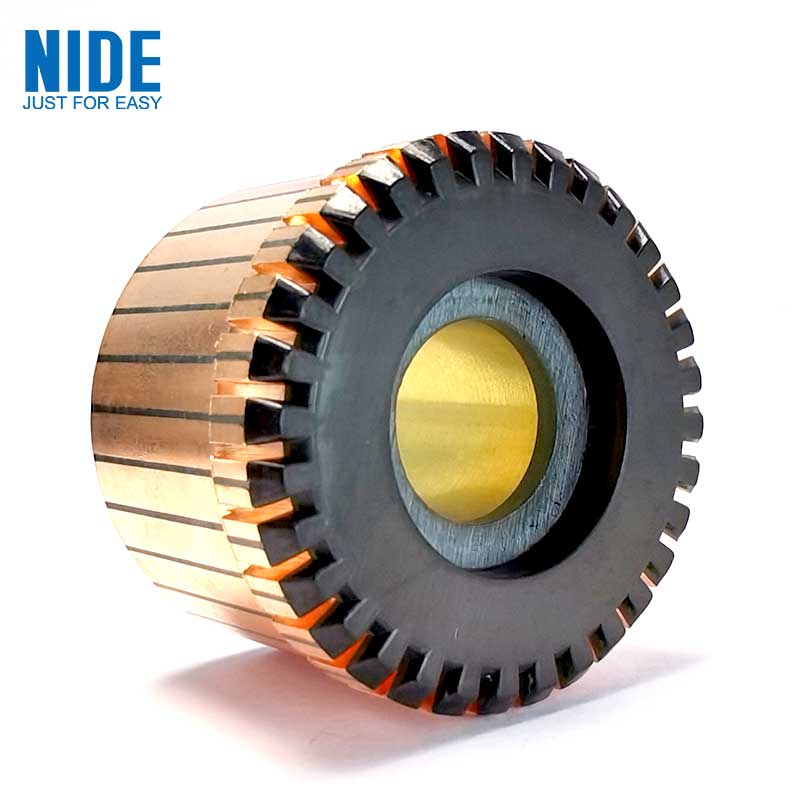

Garden machinery slot commutator custom

Garden machinery slot commutator wholesale

industrial motor commutator Garden machinery slot commutator

Garden machinery slot commutator factory

Garden machinery slot commutator collector
Competitive advantages:
1.We could customize commutator for our customer.
2. Our commutator has a wide application, such as automotive industry, household appliances, hammers, planers and etc.
3. We have a wide range of commutator. Nide produces more than 1200 different types of commutator, including hook type, riser type, shell type, planar type, ranging from OD 4mm to OD 150mm.

We could design and manufacture accoring your requirements.Welcome to your kind inquiry.

Part No.

O.D (D)

I.D (d)

Total O.D (D1)

Bar No.(N)

Bar length (L1)

Total length (L)

JZQA-RS12-00B

42

17

56.5

27

34

37

JZQA-RS12-08

48

16

52

63

27

30

JZQA-RS12-19

36

14.5



19





JZQA-RS11-20

84

28

91

69

36.5

38.5

JZQA-RS31-20B

82

28

91

69

36.5

38.5

JZQA-RS31-20C

82

28

91

69

36.5

38.5

JZQA-RS11-21

61

20

64

72

27.4

31

JZQB-RS31-22

38.6

15.5

54

23

35.5

41

JZQA-RS11-23

33

13

47

25

27

29.5

JZQA-RS12-24

28.5

13

39

21

23

26

JZQA-RS12-24B

28.5

13

39

21

23

26

JZQA-RS11-25

37

15

47

27

31

34

JZQA-RS11-25

37

15

47

27

31

34

JZQA-RS11-26

37

15

52

23

36.3

39

JZQA-RS11-26B

39.5

15

52

23

36

39

JZQA-RS11-26C

37

15

52

23

36.3

39

JZQA-RS11-26D

37.5

14

52.5

23

36.3

38.5

JZQA-RS12-32

42

18

45

42

27

30

JZQA-RS12-32B

42.5

18

45

42

27

30

JZQA-RS12-32C

42

18

45

42

27

30

JZQA-RS12-37

34

13

51

28

23

26

JZQA-RS12-37B

33

13.1

51

28

23

26

JZQA-RS12-38

34

13

51

28

27

30

JZQA-RS12-38B

33

13.1

51

28

27

30

JZQA-RS12-39

46.5

17

52

40

25

30

JZQA-RS12-39B

46

17

52.5

40

25

30

JZQA-RS12-39C

46

17

52.5

40

24

26

JZQA-RS12-40

46.5

17

56

40

25

30

JZQA-RS12-40B

46.5

17

56

40

25

30

JZQA-RS11-46

36

15.74

46

19

21

23.5

JZQA-RS11-46B

36

15.8

46

19

21

23.5

JZQA-RS11-46C

36

15.8

46

19

21

23.5

JZQB-RS11-48

115

39.5

138

56

88

141

JZQA-RS12-49

35.5

16

38.5

42

27

29.5

JZQA-RS11-50

51.5

20

56

72

22

24

JZQA-RS11-50B

51.5

20

56

72

22

24

JZQA-RS12-51

55.6

18

60.5

63

30

35.5

JZQA-RS12-51B

58

17.6

60.5

63

30

32

JZQA-RS12-52

61.5

18

64

56

45

55

JZQA-RS12-53

81

25

87

72

51

61

JZQA-RS11-61

39

15

52

23

36.3

39

JZQA-RS11-62

40

15.5

58.5

21

35.5

40

JZQA-RS11-62B

40

15

58

21

35.5

40

JZQB-RS11-62C

40

15

58

21

35.5

40

JZQB-RS11-62D

40

15.5

58.5

21

35.5

40

JZQA-RS11-63

33

10

45.5

25

27

31

JZQA-RS11-66

33.5

16

47

25

21

24.8

Nide produces more than 1200 different types of motor commutator, including hook type, riser type, shell type, planar type, ranging from OD 4mm to OD 150mm and we are professional in manufacturing commutator for many years. The commutators are widely applied to automotive industry, power tools, household appliances, and other motors.If our existing models are not suitable for you, we could also develop new tooling according to your drawing and samples.





Besides, we can supply the full range of motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper material, shaft, magnet, fan, motor cover,etc.
