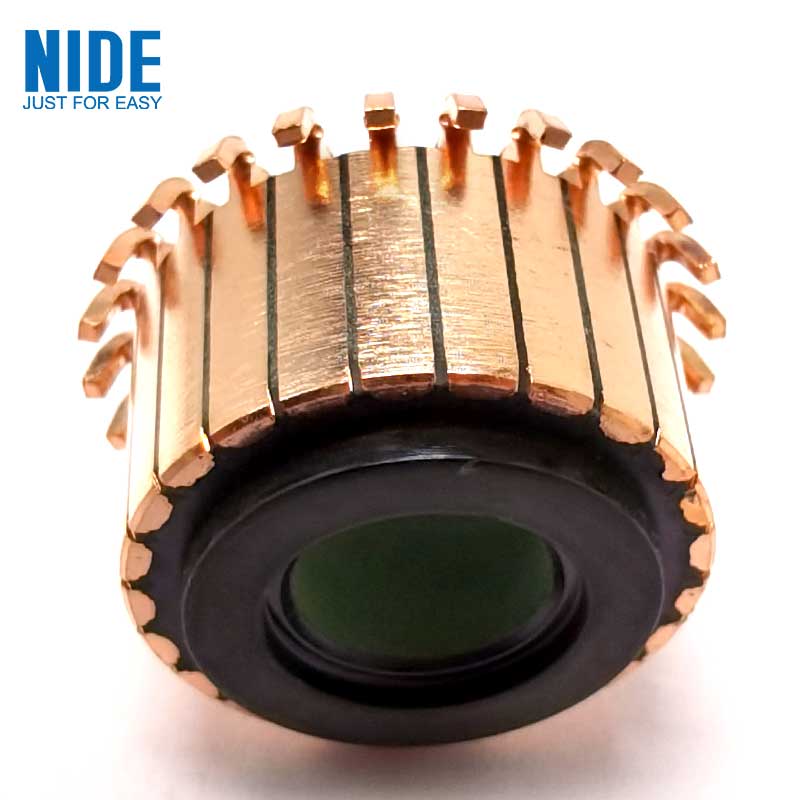

Power Tool Commutator Electric Drill Motor Commutator

The power tool commutator is suitable for grinders, electric drills, electric hammers, electric circular saws, jigsaws, electric planers, and other power tools.

DC Motor Commutator Details

Product Name:	Electric Drill Motor Commutator for Power Tool
Material :	silver /copper /mica/ plastic
Color :	Standed color
Type:	Hook Commutator, Segmented Commutator, Plane Commutator
MOQ:	5000 Piece
Delivery time	According to the order quantity



Commutators are widely used in various types of DC motors and series motors, covering motor fields such as automobiles, motorcycles, power tools, and household appliances industries. Commutators (collectors) mainly include hook-type, slot-type, flat-type, and more than 1,200 specifications of blade-type and rolled-plate motor commutators, which are made of imported high-quality raw materials.

Commutator types include: mechanical commutator, semi-plastic commutator, and full plastic commutator. The commutators used in automobile starters mainly use mechanical arch commutators and plastic commutators.

     Hook type commutator (8 pieces, 10 pieces, 12 pieces, 14 pieces, 16 pieces, 18 pieces, 20 pieces, 22 pieces, 24 pieces, 26 pieces, 28 pieces, 30 pieces, 32 pieces, 34 pieces, 36 pieces , 38 pieces, 40 pieces)

     Slot type commutator (8 pieces, 10 pieces, 12 pieces, 14 pieces, 16 pieces, 18 pieces, 20 pieces, 22 pieces, 24 pieces, 26 pieces, 28 pieces, 30 pieces, 32 pieces, 34 pieces, 36 pieces , 38 pieces, 40 pieces)

    Planar commutator (8 pieces, 10 pieces, 12 pieces, 14 pieces, 16 pieces, 18 pieces, 20 pieces, 22 pieces, 24 pieces, 26 pieces, 28 pieces, 30 pieces, 32 pieces, 34 pieces, 36 pieces, 38 pieces, 40 pieces)

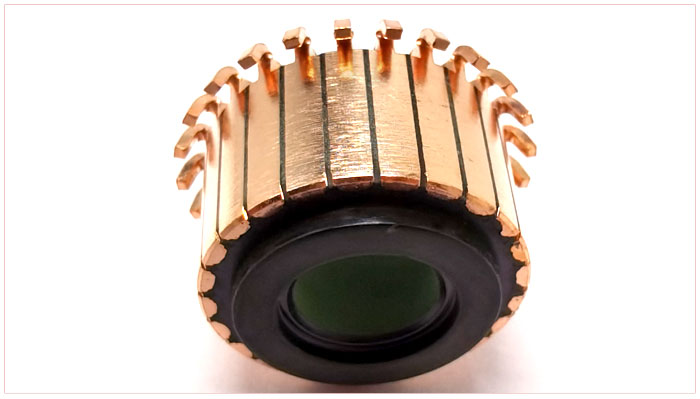

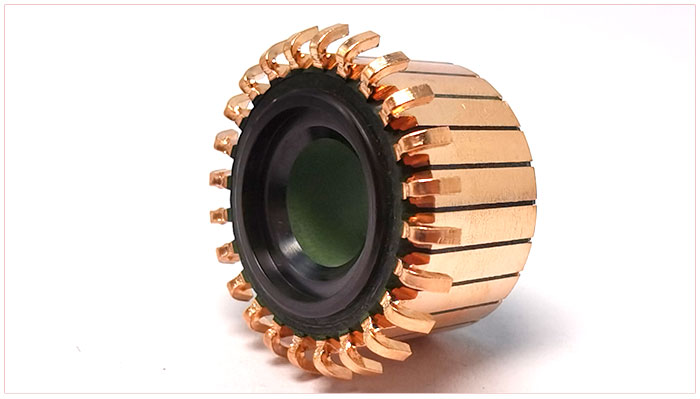

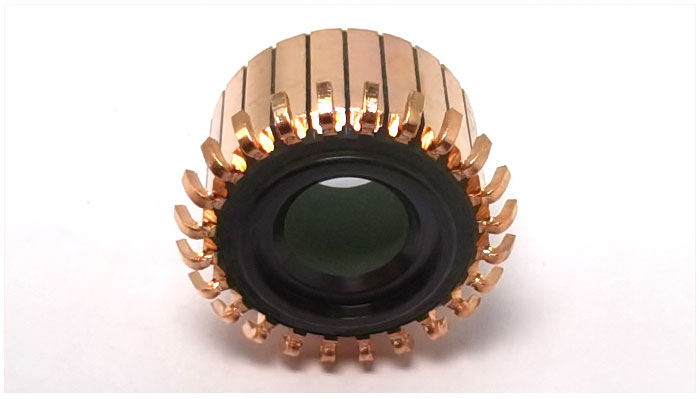

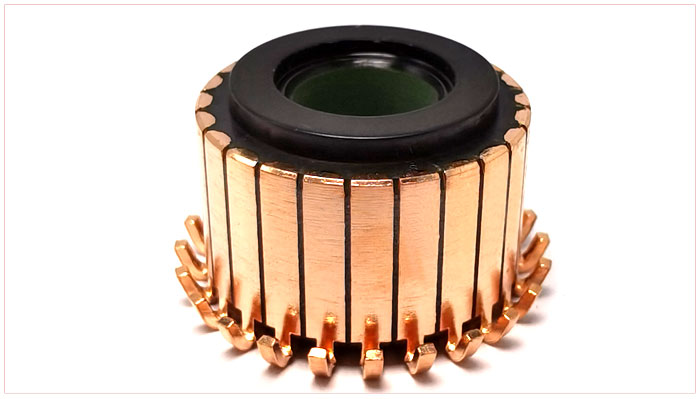

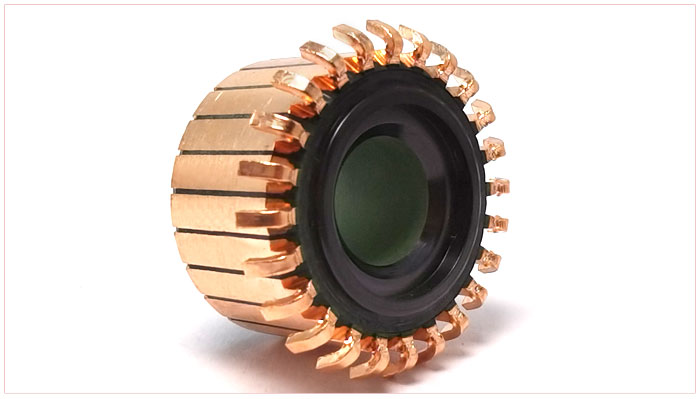

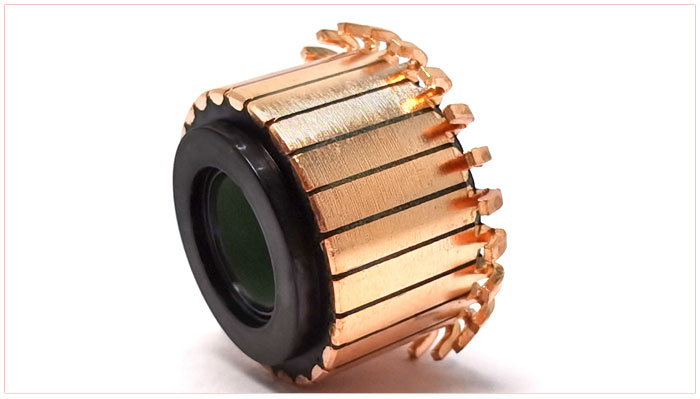

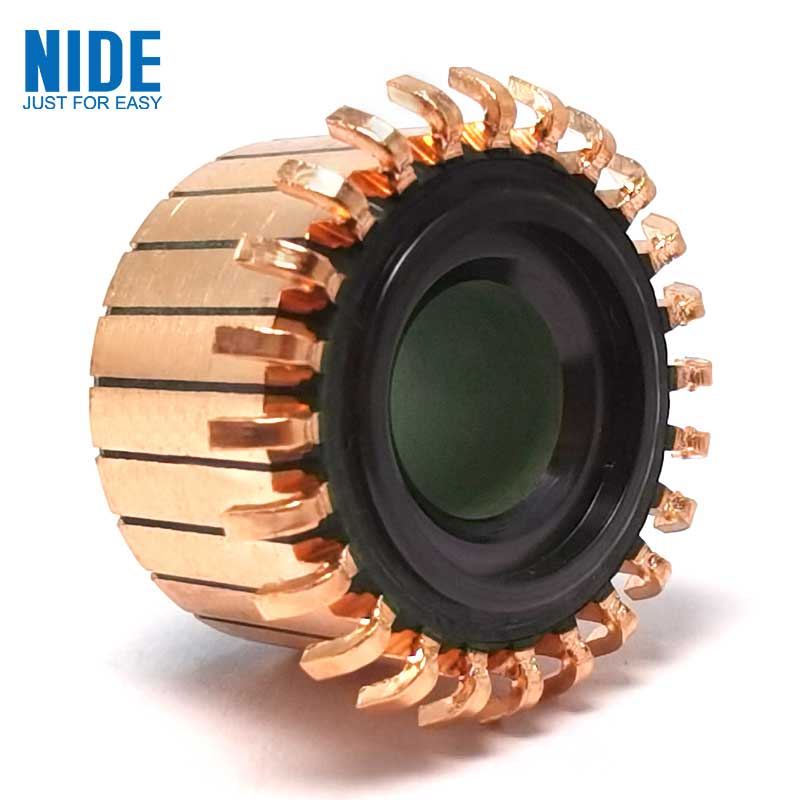

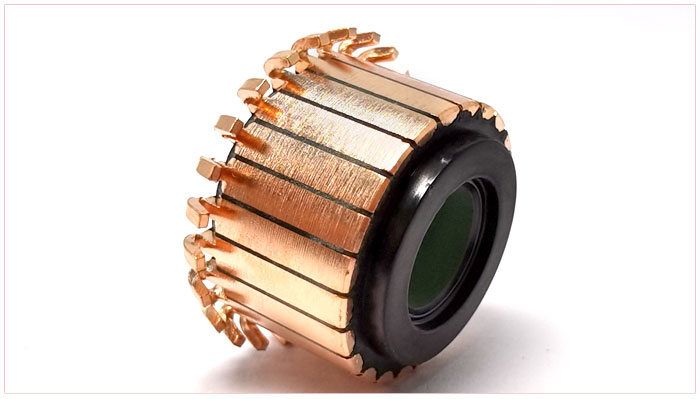

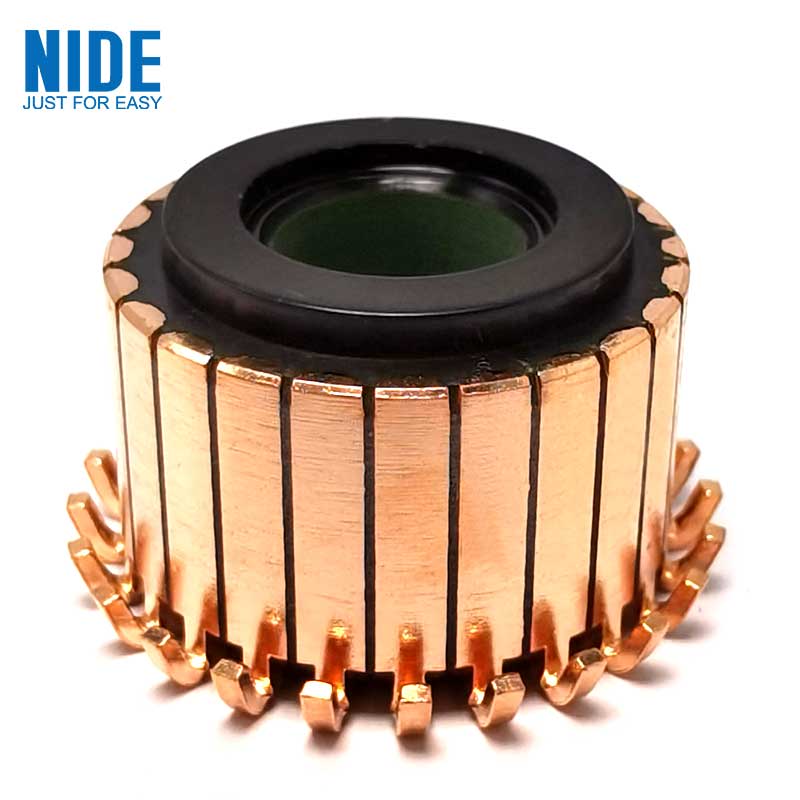

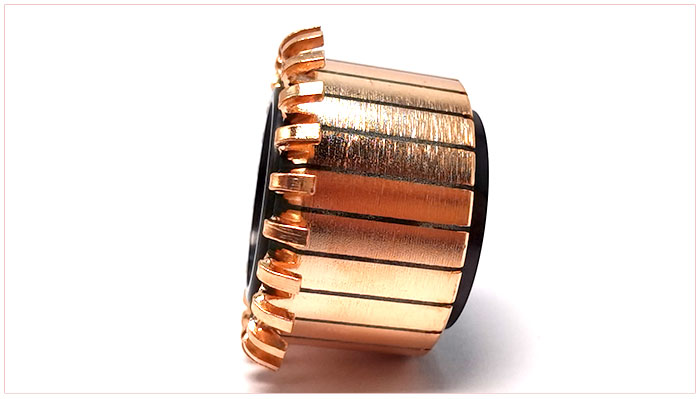

DC Motor Commutator Pictures

Information needed for commutator inquiry:
It will be better if customer could send us detailed drawing including below information.
1. Commutator dimension: OD, ID, total height, and copper height, bar number.
2. Commutator type: hook type, raiser type or planner
3. Copper material: Agcu/ Cu
4. Commutator applications
5. Required quantity
6. Copper bush needed or not

7. Other technical requirement.



Nide produces more than 1200 different types of motor commutator, including hook type, riser type, shell type, planar type, ranging from OD 4mm to OD 150mm and we are professional in manufacturing commutator for many years. The commutators are widely applied to automotive industry, power tools, household appliances, and other motors.If our existing models are not suitable for you, we could also develop new tooling according to your drawing and samples.





Besides, we can supply the full range of motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper material, shaft, magnet, fan, motor cover,etc.
