Custom 100-240V Electric Motor Carbon Brushes for Mixer and Angle Grinder 6*6*17mm

The main materials used for carbon brushes in product applications include graphite, impregnated graphite, and metallic (including copper and silver) graphite. Widely used in many electrical equipment.

The function of carbon brushes:

(1) In a commutator motor, the brushes also play a reversing role, which can change the direction of the current;

(2) Grounding carbon brush can output current and introduce static charges on the main shaft into the ground through the carbon brush;

(3) Apply external current (excitation current) to the rotating rotor (input current) through the carbon brush of the motor;

(4) Lead the main shaft (ground) to the protection device for rotor grounding protection and measurement of rotor positive and negative. The ground voltage commutator consists of an electric brush and a commutation ring, and a carbon brush is one type of electric brush.

We can supply motor parts such as carbon brushes, electric brushes, carbon brush holders, slip rings, collector rings, etc. The products are used in electric tools, generator sets, railway transportation, automation equipment, papermaking, coal mines, metallurgy, automobiles and many other industries.

Carbon brush parameters

Size: 6*6*17mm or customized

Material: Graphite/Copper

Colour: Black

Application: Electric tool motor.

Customized: Customized

Packing: box + carton

MOQ: 10000

Carbon brush features

1. Low noise

2. Small sparks

3. Long service life

4. Graphite is preferred, with good reversibility

5. Easy to use

6. High hardness

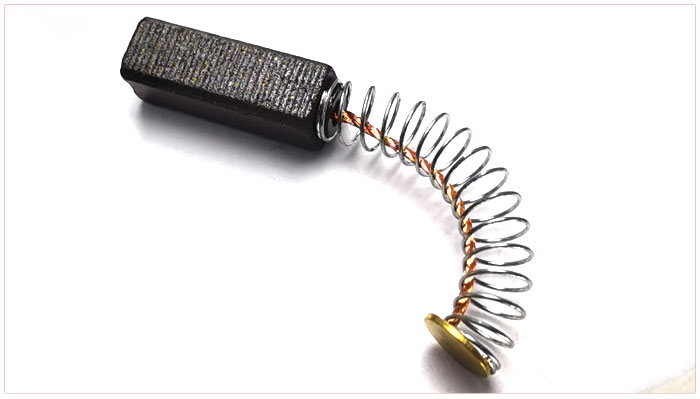

Carbon brush pictures

If possible, it will better if customer could send us samples.

We can produce a wide range of carbon brush. Our carbon brush is  widely suitable for automotive industry, household appliances, hammers, planers and etc. We could customize carbon brush for our customer and directly supply our carbon brushes to more than 50 countries around the world.

About Motor component and  accessories

NIDE can supply the full range of electric motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.

​
