Customized Large Garden machinery slot commutator DC motor collector  spare partCommutator parameters

Product name: Garden machinery DC Motor Collector Commutator
ID : 13mm

OD: 35.4mm
Height : 27.3mm
Bar : 32P

We produce more than 1200 different type of commutator, including hook type, riser type, shell type,planar type, ranging from OD 4mm to OD 150mm, which widely apply to automotive industry, power tools, household appliances, and other motors, we should be highly appreciated if any specified inquiry from you, and sincerely wish there is a chance to be of service.

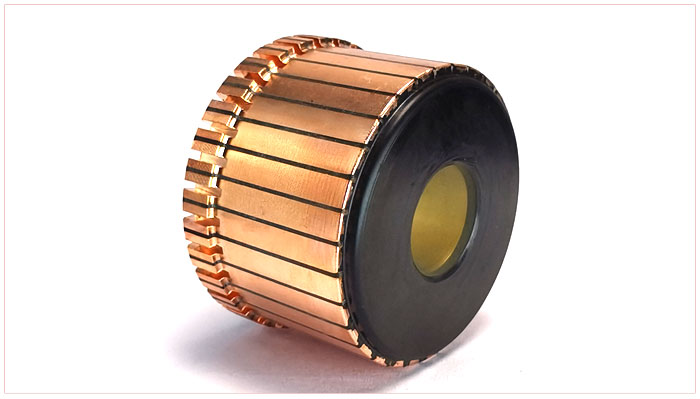

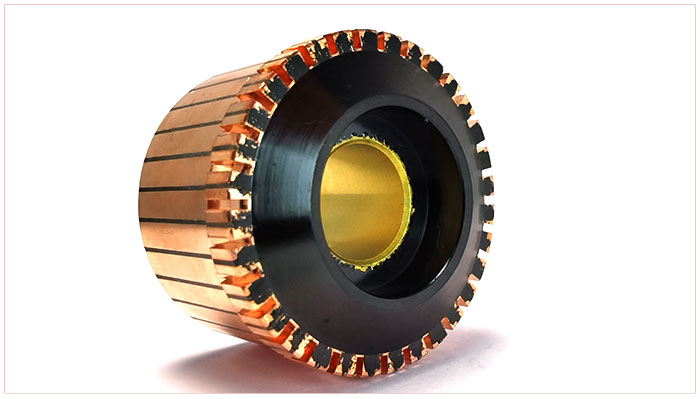

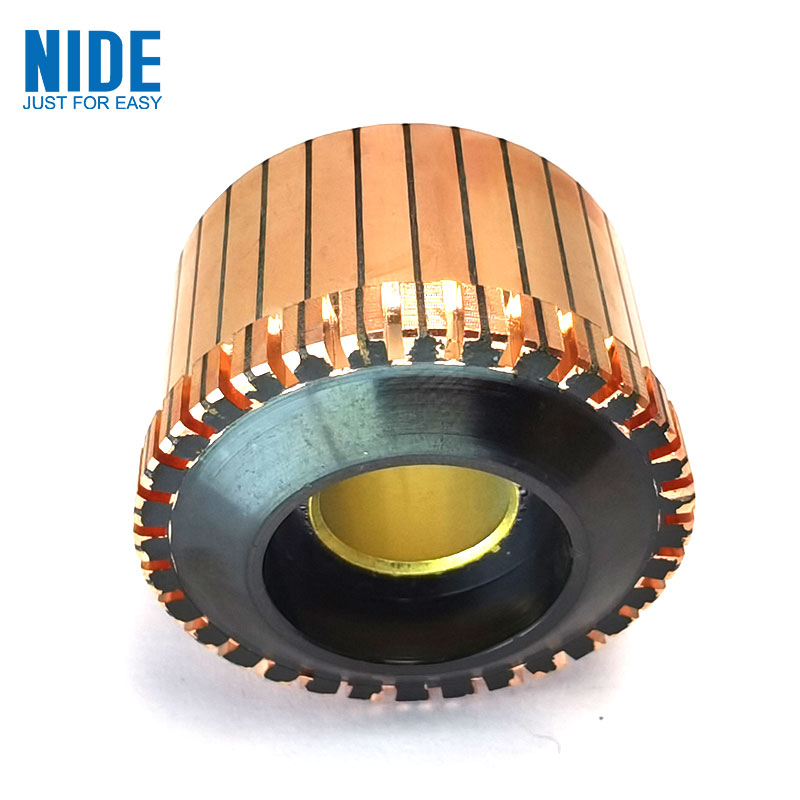

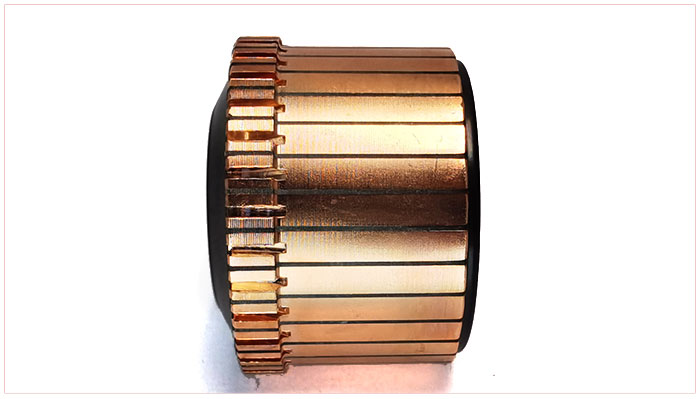

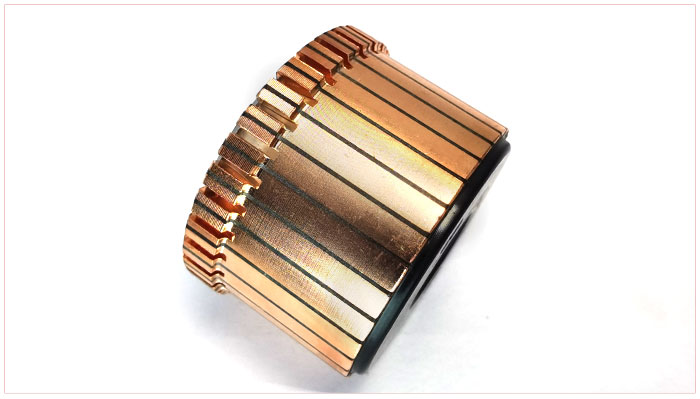

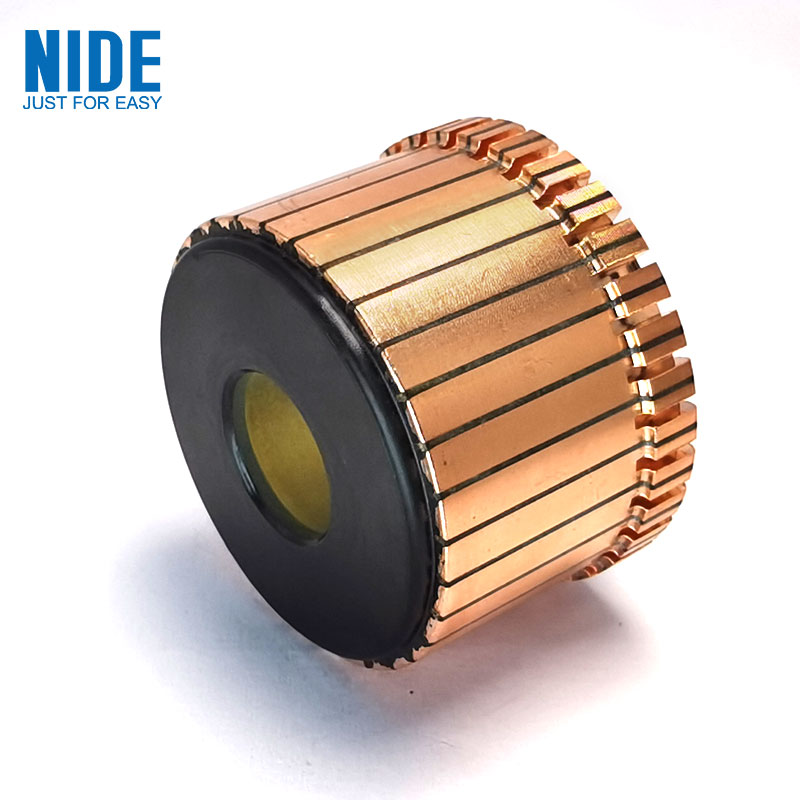

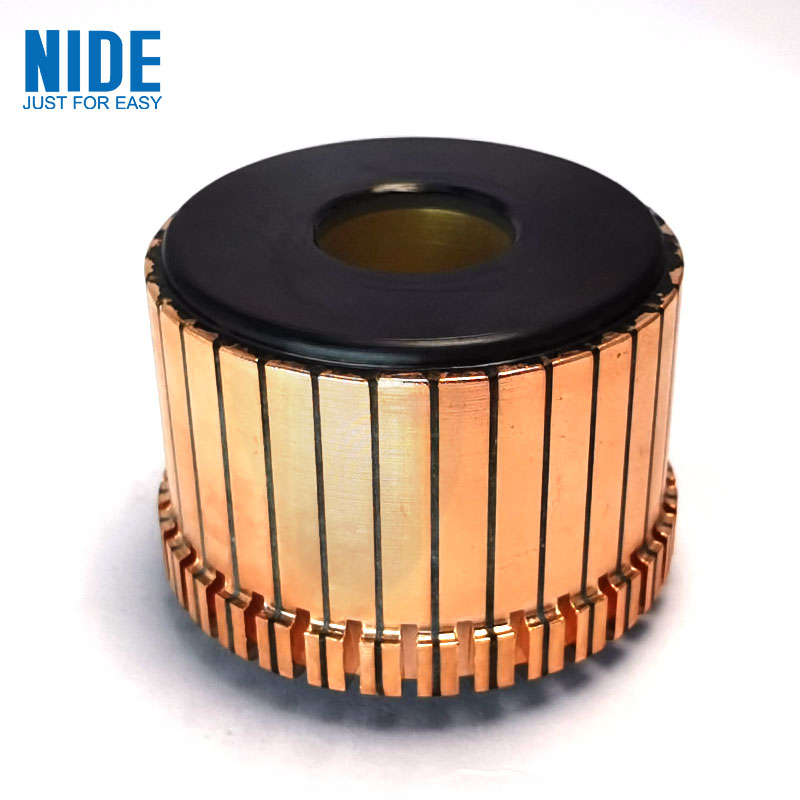

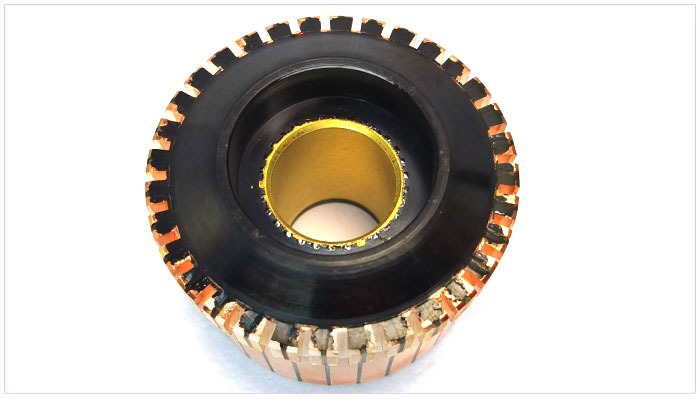

Picture show:

It will be better if customer could send us detailed drawing including below information.

Nide produces more than 1200 different types of electric motor stator and armature rotor brush commutator, including hook type, riser type, shell type, planar type, ranging from OD 4mm to OD 150mm and we are professional in manufacturing commutator for many years. The commutators are widely applied to automotive industry, power tools, household appliances, and other motors.If our existing models are not suitable for you, we could also develop new tooling according to your drawing and samples.
