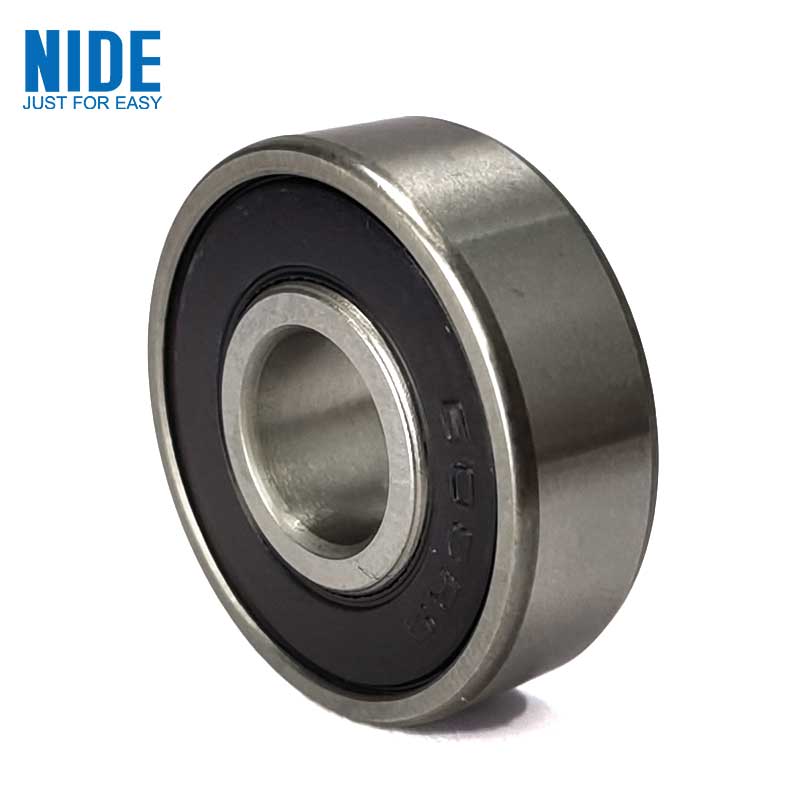

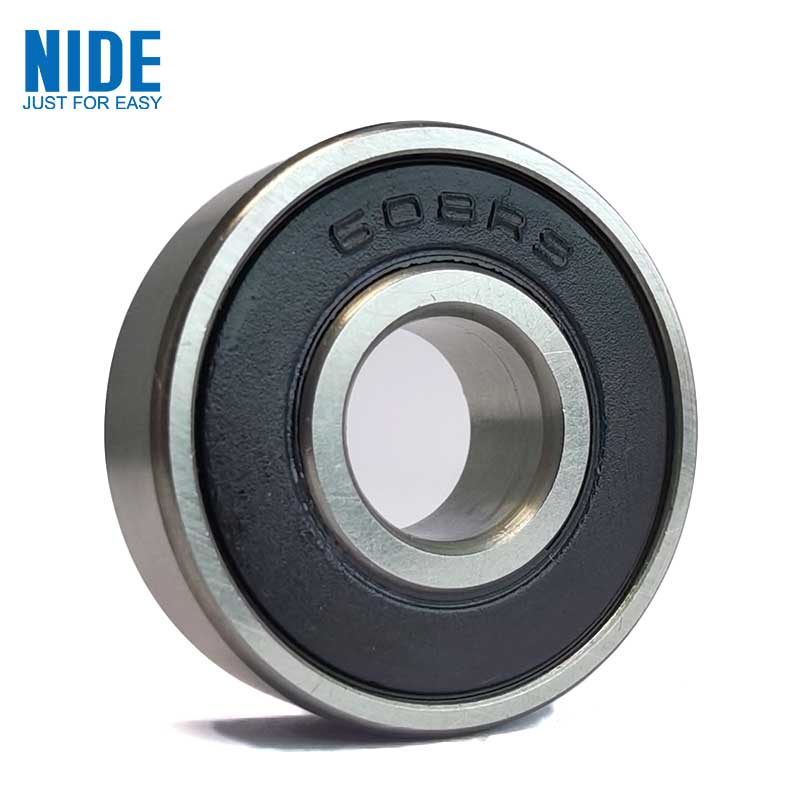

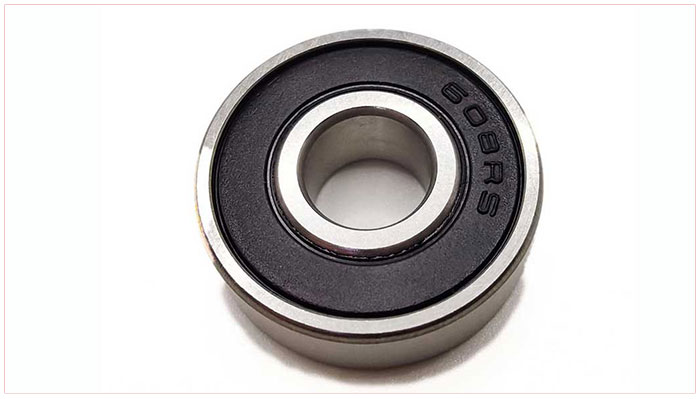

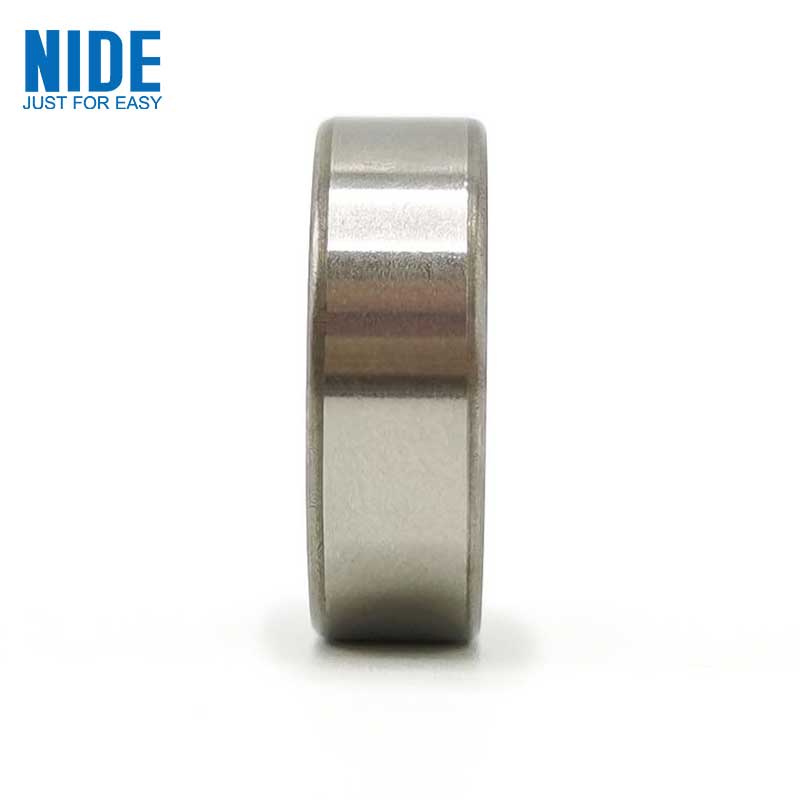

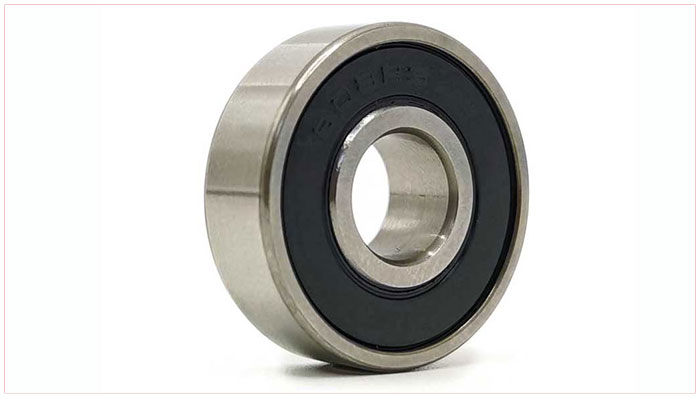

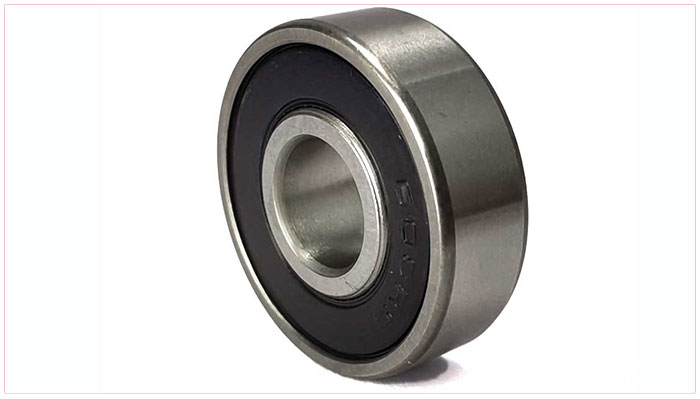

Customized 608 Deep Groove Ball Bearings with rubber shielded cover 608RS 608ZZ

608 deep groove ball bearing, inner diameter: 8mm, outer diameter: 22mm, thickness: 7 mm, is a miniature bearing.

608 deep groove ball bearings are compact and suitable for installation in limited spaces.
608 bearing material. GCr15 or GCr15SiMn steel is usually used, these materials have excellent wear resistance and impact resistance.
608 bearing load capacity. The maximum axial load capacity is 0.0013KN and the maximum radial load capacity is 0.0056KN.
608 bearing application range. Widely used in motors, air conditioners, scooters, fidget spinners, wiper motor, mixer motors, fan motor, electronic accessories, casters, pulley sets, strollers, roller skates, speed reducers, rails, automatic pumps, fans, ATM machines, drones, intelligent robots, etc
608 bearings sealed and lubricated. There are versions with and without dust cover. The dust cover can prevent dust from intruding into the inside of the bearing. The cage is made of various materials, including stainless steel, copper, steel plate, nylon, etc.
608 bearing cage. Usually stamped corrugated cages, machined solid cages, and sometimes nylon cages are used.
Since 608 bearings are precision parts, attention should be paid to rust prevention and lubrication during storage and use.
