Wholesale KW Series Thermal Protector 50-155 Degree Thermal Protector

KW series thermal protector is a temperature automatic response device.When the heat generated by the increasing temperature from the protected appliances transmits to bimetal disc,and reaching the rated temperature, The bimetal disc will trip immediately so that the contact will be switched off and the circuit will be cut off.When the temperature decreases to the rated,the moving contact will be closed and the circuit will be ON. The metal case is electtiferous,so this series thermal protector equips with sleeve.

KW series thermal protectors are mainly used in air conditioning motors, washing machine motors, pump motors, battery pack, heater, lamps, ballast and so on.

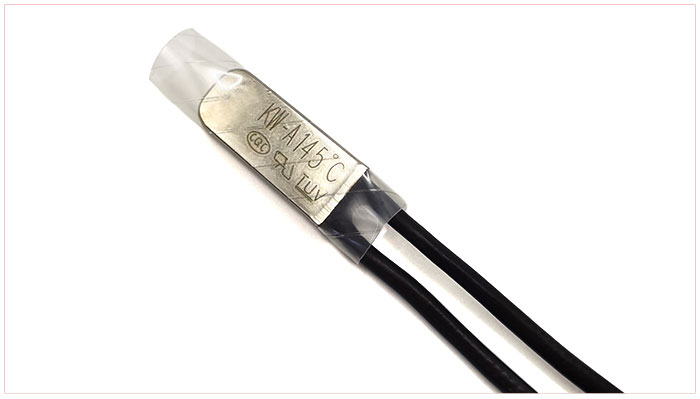

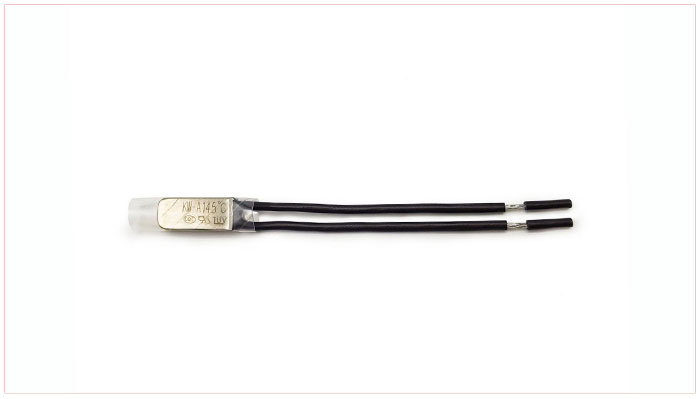

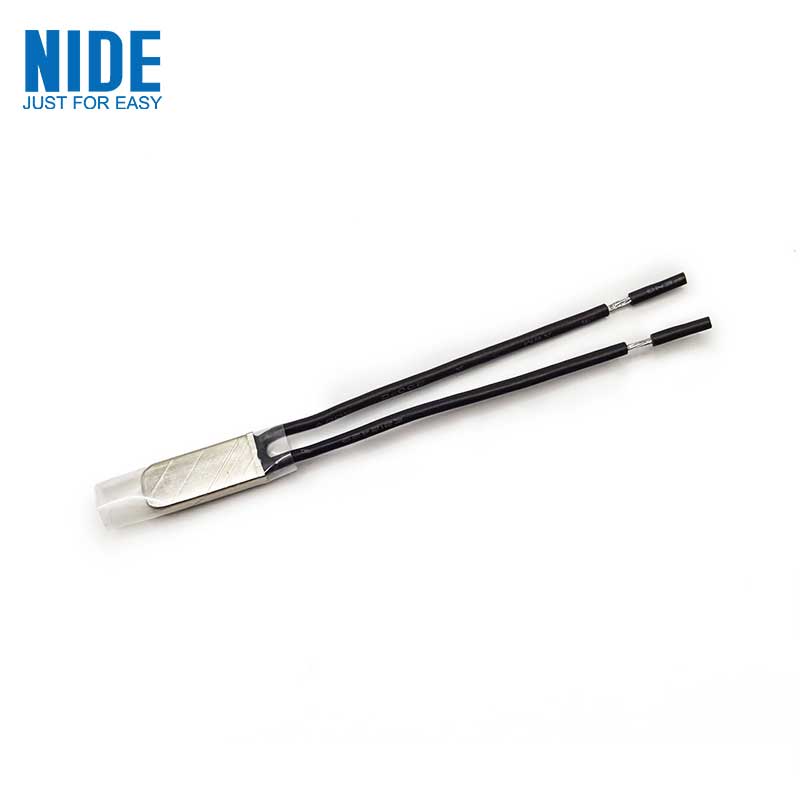

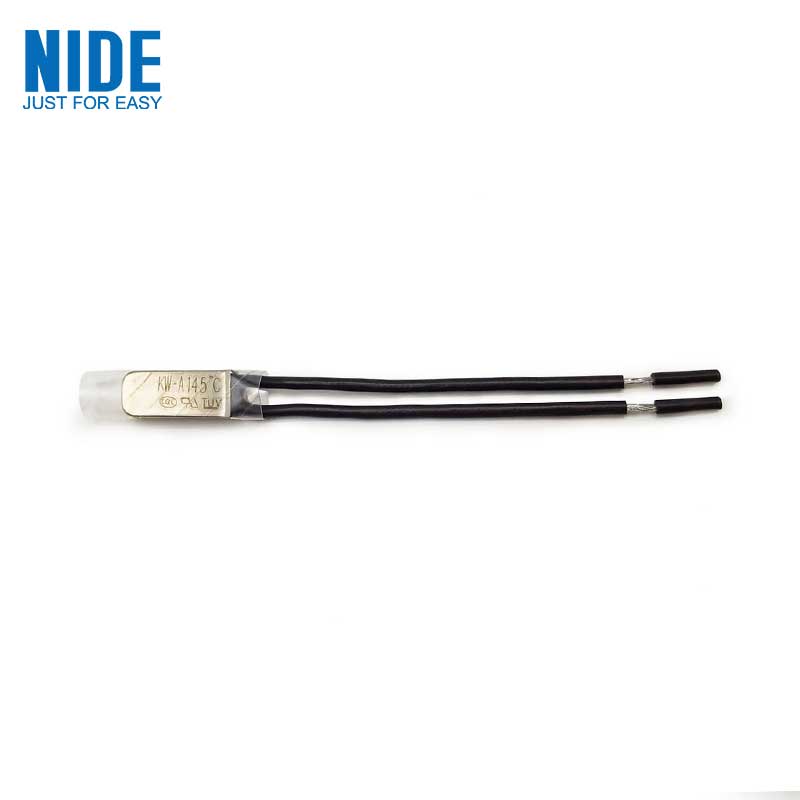

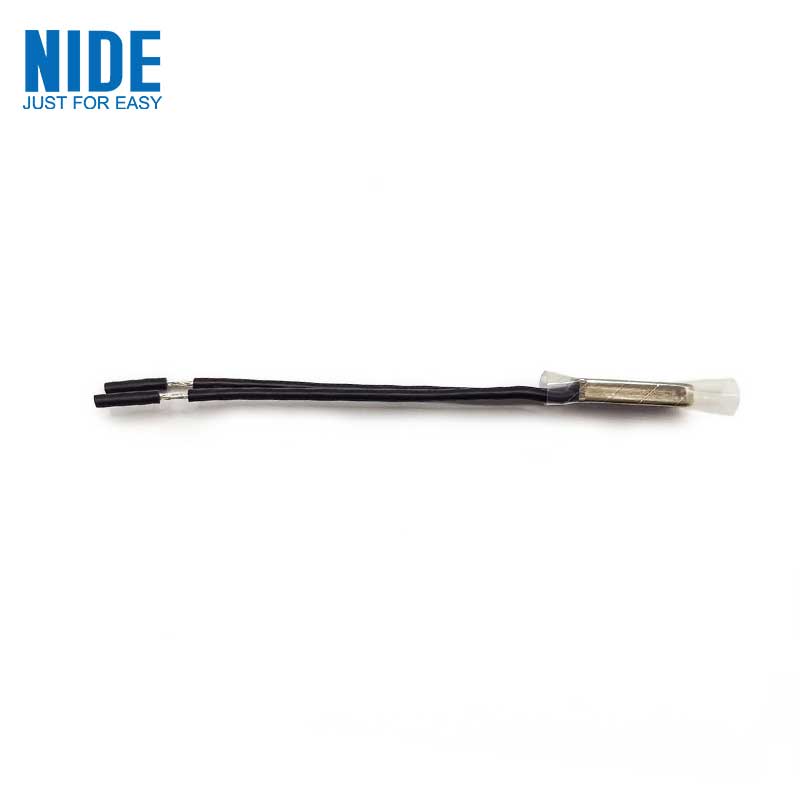

Thermal protector picture

Notes:

1 The heating rate of action temperature detection should be controlled to 1 °C/1min;

2 The protector shell shall not withstand strong impact and pressure during use.

Customized Thermal Protector Structure:

1. Customized lead wire: Customized wire material, length and color according to customer needs

2. Customized metal shell: Customize different material shells according to customer needs, including plastic shells, iron shells, stainless steel shells, and other metal shells.

3. Customized heat shrinkable sleeve: Customize different high temperature resistant polyester heat shrinkable sleeves according to customer needs

About Motor component and  accessories

NIDE can supply the full range of electric motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
