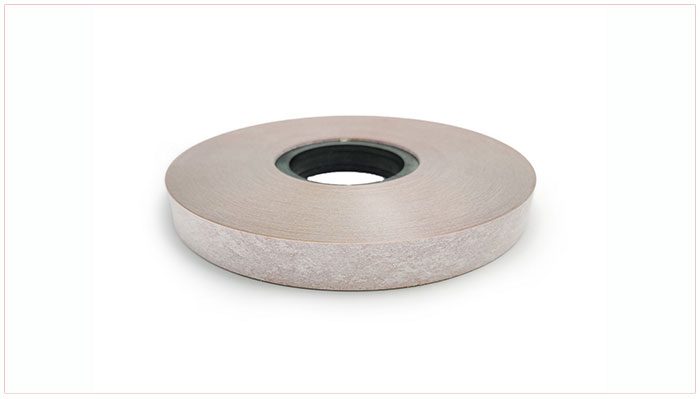

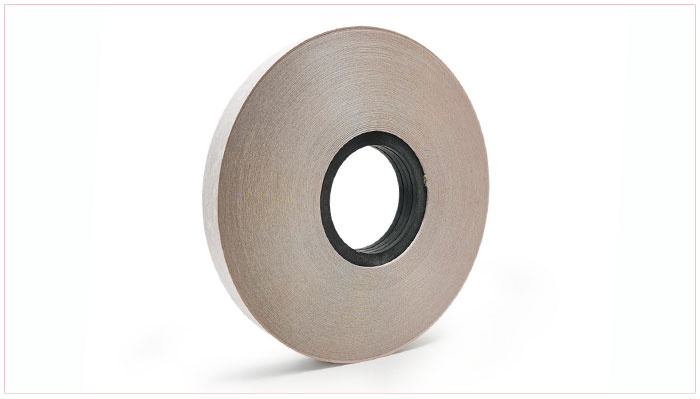

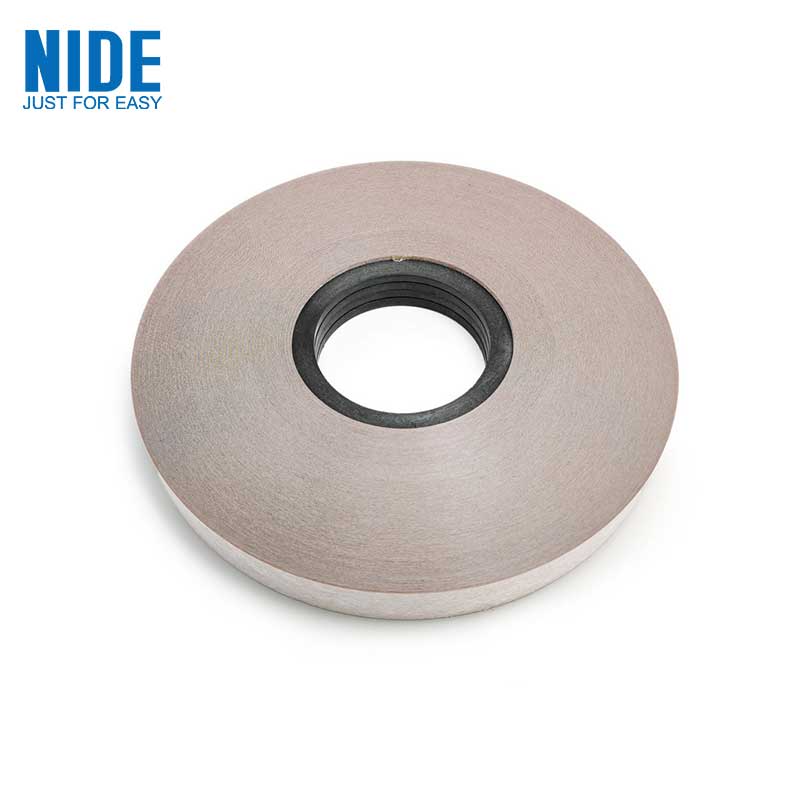

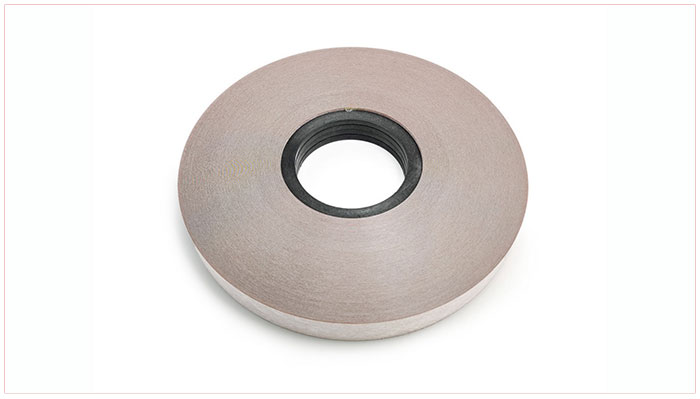

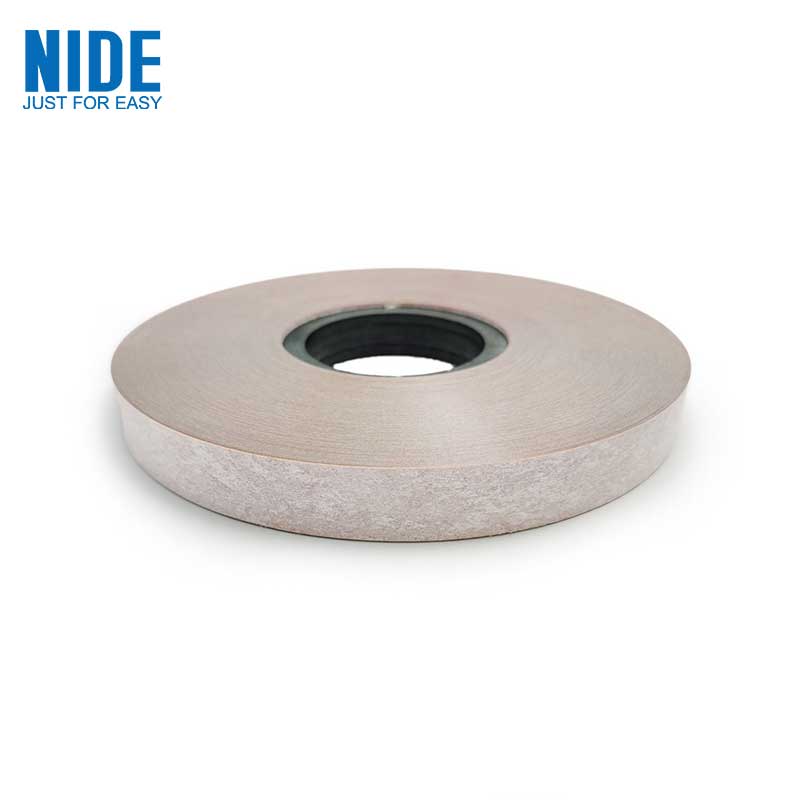

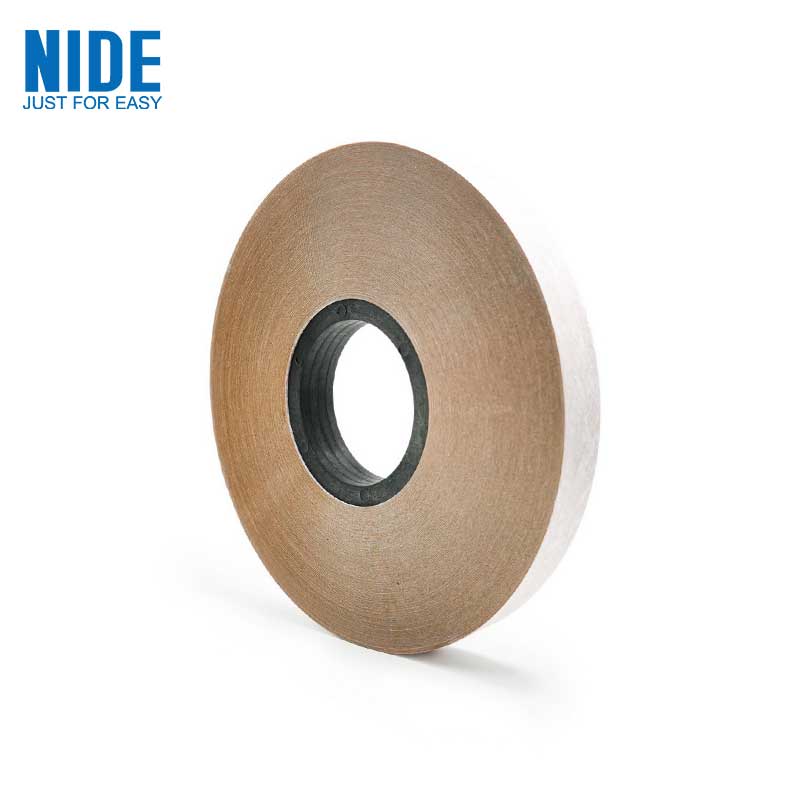

High Quality Heat Resistant Class H AHA Insulation Paper NHN 6650 Electrical Paper Material

NDPJ-JYZ-AHA-6650

6650 AHA insulation paper is suitable for slot insulation, turn-to-turn insulation and pad insulation for H-class motors and special parts of electrical appliances, and is suitable for various harsh working environments.

Details

High Quality Heat Resistant Class H AHA Insulation Paper NHN 6650 Electrical Paper Material

AHA soft composite material

Technical Parameters

Type: AHA 6650 Insulation Paper

Thickness : 0.15-0.35mm

Color : Brown

Class: H

Temperature: 180℃

6650 (AHA) polyimide film polyaramid fiber paper composite material is bonded and compounded by two layers of polyaramid fiber paper and one layer of polyimide film.

It has excellent heat resistance and good mechanical properties and is a reliable H-class insulation material.

It is suitable for slot insulation, turn-to-turn insulation and pad insulation for H-class motors and special parts of electrical appliances, and is suitable for various harsh working environments.

6650 insulation paper

6650 insulation paper supplier

6650 insulation paper manufacturer

Properties	Unit	Parameter
Insulation paper thickness	MM	0.09	0.11	0.15	0.19	0.20	0.23	0.25	0.30	0.36	0.41
Thickness deviation	MM	±0.01	±0.01	±0.02	±0.02	±0.02	±0.02	±0.03	±0.03	±0.04	±0.04
Grammage and deviation	GSM	93±9	113±11	183±18	218±22	253±25	288±29	308±31	393±39	463±46	533±53
Film thickness	MM	0.036	0.050	0.100	0.125	0.150	0.175	0.190	0.250	0.300	0.350
Breakdown voltage	KV	≥5	≥6	≥9	≥10	≥11	≥13	≥14	≥16	≥18	≥22
Tensile strength (MD)	N/CM	≥60	≥80	≥150	≥190	≥220	≥250	≥280	≥330	≥350	≥380
Tensile strength (TD)	N/CM	≥40	≥70	≥110	≥140	≥150	≥160	≥180	≥280	≥300	≥330
Tensile strength after folding (MD)	N/CM	≥40	≥70	≥110	≥140	≥165	≥190	≥240	≥280	≥300	≥330
Tensile strength after folding (TD)	N/CM	≥20	≥50	≥90	≥110	≥115	≥120	≥130	≥180	≥200	≥230

Information needed for insulation material inquiry

It will be better if customer could send us detailed drawing including below information.

a. Insulation material type: insulation paper, wedge, (including DMD,DM, polyester film, PMP,PET, NHN , NMN ,PM ,Red Vulcanized Fiber,)

b. Insulation material dimension: width, thickness, tolerance.

c. Insulation material thermal class: Class F, Class E, Class B, Class H , Class C

d. Insulation material applications

e. Required quantity: normally its weight

f. Other technical requirement.

We also supply different types of electrical insulation materials for stator or armatures, such as insulation paper and insulation wedge with different class degree. DMD Class B/F, DM Class B/F, Polyester film Class E, Red Vulcanized Fiber Class A, NH& NHN, etc

Besides, we can supply the full range of motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper material, shaft, magnet, fan, motor cover,etc.
