NDPJ-JYZ-AMA-6640
6640 AMA insulation material is suitable for slot insulation, inter-turn insulation and pad insulation in special parts of H-class motors and electrical appliances, and is suitable for various harsh working environments.

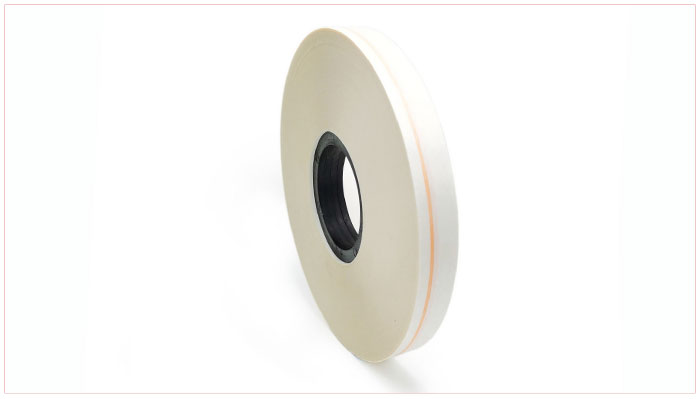

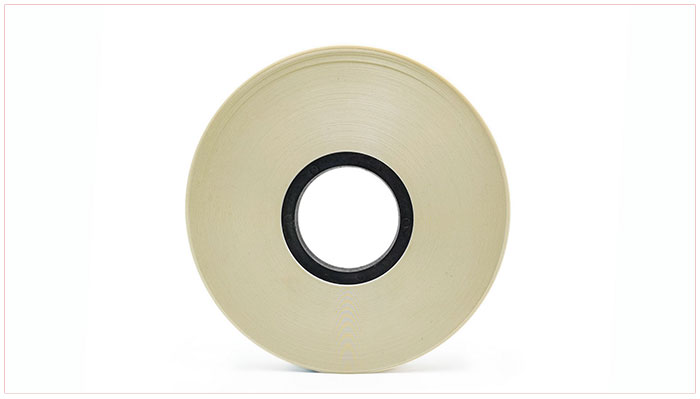

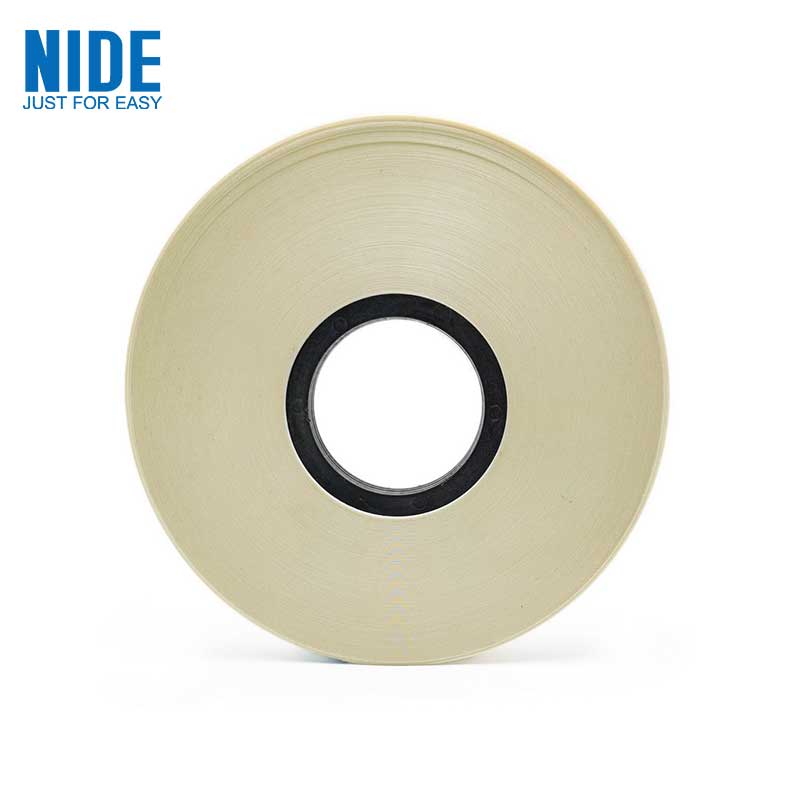

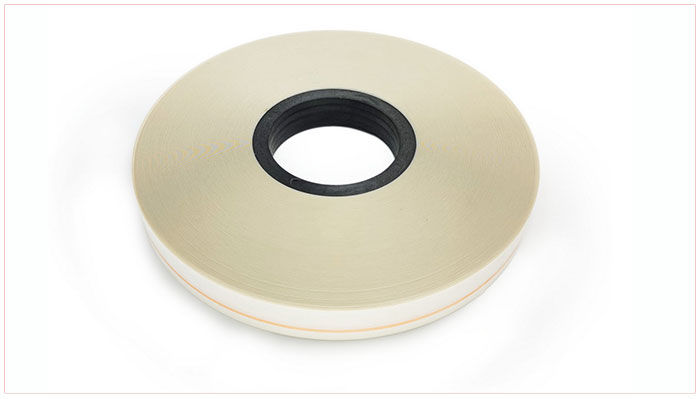

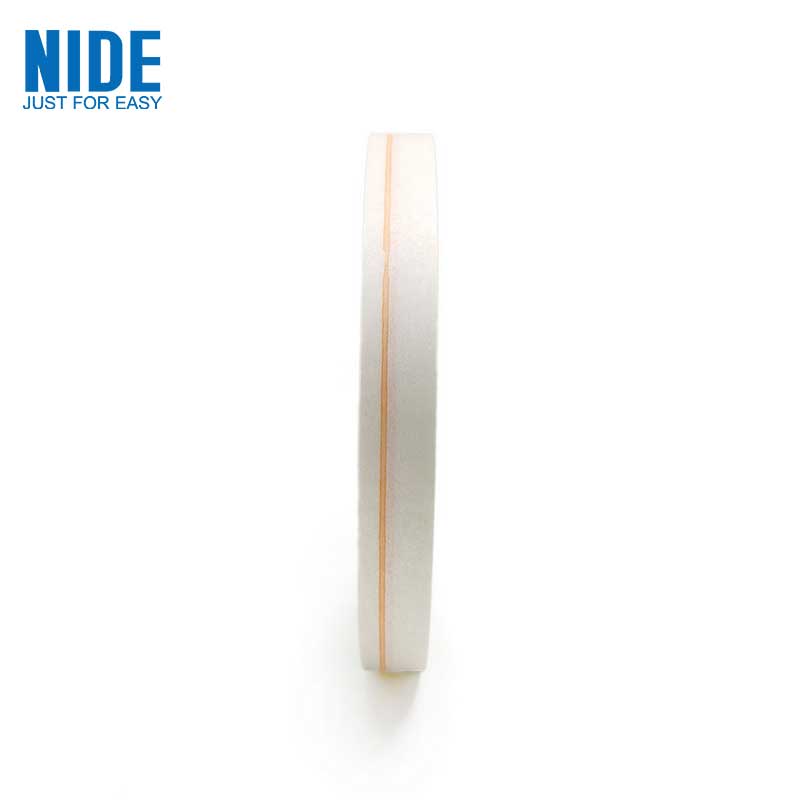

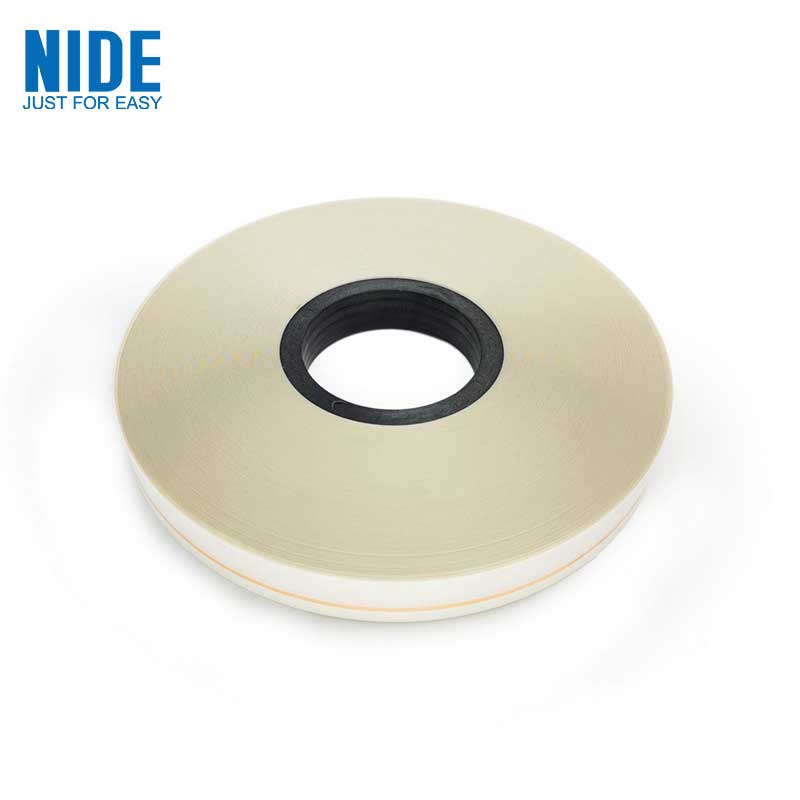

Class H AMA Insulation Paper NMN 6640 Electrical Paper Material
AMA soft composite insulation
6640 AMA insulation material is suitable for slot insulation, inter-turn insulation and pad insulation in special parts of H-class motors and electrical appliances, and is suitable for various harsh working environments.
Technical Parameters
Type: AMA 6640 Insulation Paper
Thickness : 0.13-0.51mm
Color : White
Class: H
Temperature: 180℃
6640 AMA polyester film polyaramid fiber paper soft composite material is bonded and compounded by two layers of polyaramid fiber paper and one layer of polyester film.
It has excellent mechanical properties, dielectric properties and good heat resistance, tear resistance and paint absorption ability.
It is suitable for slot insulation, turn-to-turn insulation and pad insulation for special F-class motors and special parts of electrical appliances, and is suitable for various harsh working environments.
|
Properties |
Unit |
Parameter |
|||||||||
|
Insulation paper thickness |
MM |
0.09 |
0.11 |
0.15 |
0.19 |
0.20 |
0.23 |
0.25 |
0.30 |
0.36 |
0.41 |
|
Thickness deviation |
MM |
±0.01 |
±0.01 |
±0.02 |
±0.02 |
±0.02 |
±0.02 |
±0.03 |
±0.03 |
±0.04 |
±0.04 |
|
Grammage and deviation |
GSM |
93±9 |
113±11 |
183±18 |
218±22 |
253±25 |
288±29 |
308±31 |
393±39 |
463±46 |
533±53 |
|
Film thickness |
MM |
0.036 |
0.050 |
0.100 |
0.125 |
0.150 |
0.175 |
0.190 |
0.250 |
0.300 |
0.350 |
|
Breakdown voltage |
KV |
≥5 |
≥6 |
≥9 |
≥10 |
≥11 |
≥13 |
≥14 |
≥16 |
≥18 |
≥22 |
|
Tensile strength (MD) |
N/CM |
≥60 |
≥80 |
≥150 |
≥190 |
≥220 |
≥250 |
≥280 |
≥330 |
≥350 |
≥380 |
|
Tensile strength (TD) |
N/CM |
≥40 |
≥70 |
≥110 |
≥140 |
≥150 |
≥160 |
≥180 |
≥280 |
≥300 |
≥330 |
|
Tensile strength after folding (MD) |
N/CM |
≥40 |
≥70 |
≥110 |
≥140 |
≥165 |
≥190 |
≥240 |
≥280 |
≥300 |
≥330 |
|
Tensile strength after folding (TD) |
N/CM |
≥20 |
≥50 |
≥90 |
≥110 |
≥115 |
≥120 |
≥130 |
≥180 |
≥200 |
≥230 |
Information needed for insulation material inquiry
It will be better if customer could send us detailed drawing including below information.
a. Insulation material type: insulation paper, wedge, (including DMD,DM, polyester film, PMP,PET, NHN , NMN ,PM ,Red Vulcanized Fiber,)
b. Insulation material dimension: width, thickness, tolerance.
c. Insulation material thermal class: Class F, Class E, Class B, Class H , Class C
d. Insulation material applications
e. Required quantity: normally its weight
f. Other technical requirement.
We also supply different types of electrical insulation materials for stator or armatures, such as insulation paper and insulation wedge with different class degree. DMD Class B/F, DM Class B/F, Polyester film Class E, Red Vulcanized Fiber Class A, NH& NHN, etc
Besides, we can supply the full range of motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper material, shaft, magnet, fan, motor cover,etc.
| Contact us
Motor Parts Department
Email : emarketing@nide-group.com;marketing4@nide-group.com
