NDPJ-JYZ-AM
AM insulation paper combines fire-resistant fiber insulation paper with high temperature resistance of 220 ℃ and excellent dielectric strength and mechanical toughness of polyester film. It is widely used in electrical equipment, especially for insulation between slots, phases, turns, and pads of motors.
Wholesale AM Insulation paper H-class Motor Insulation Material

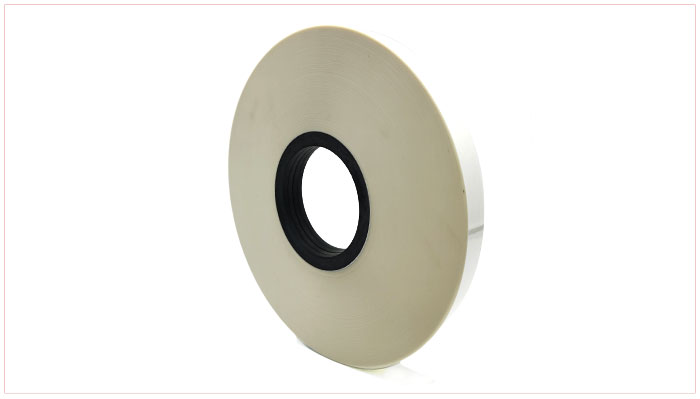

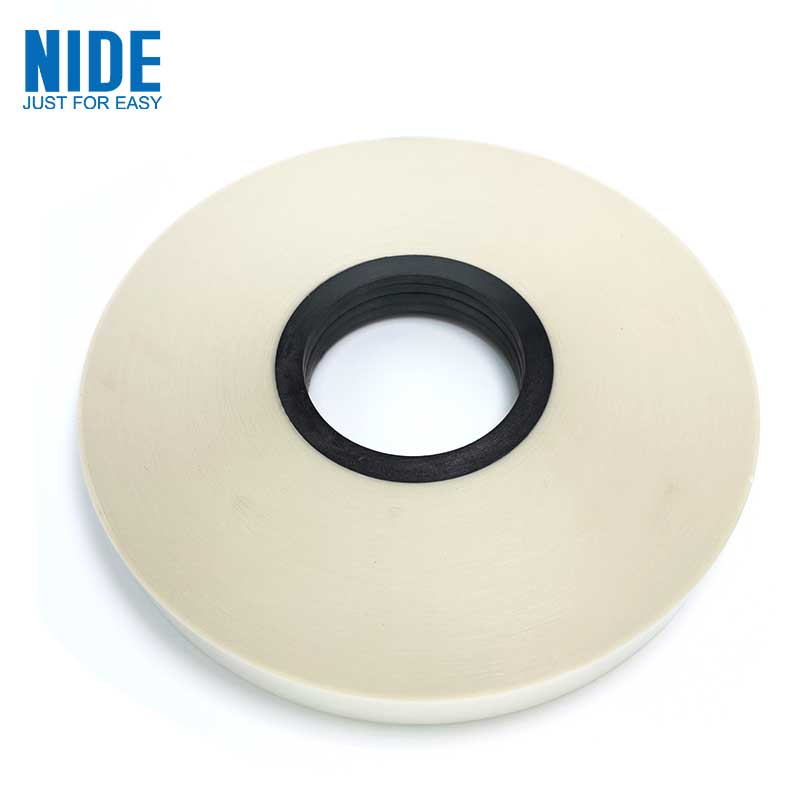

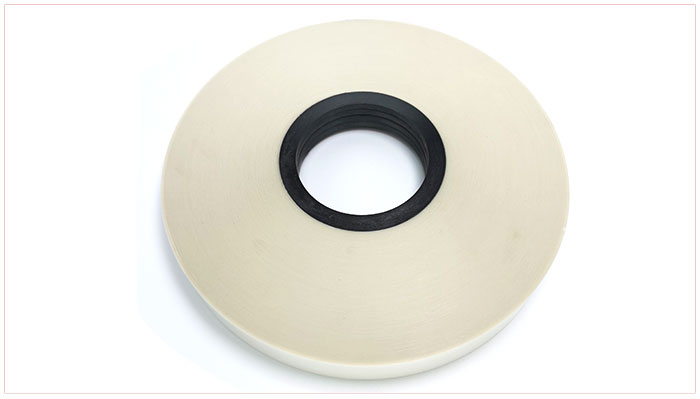

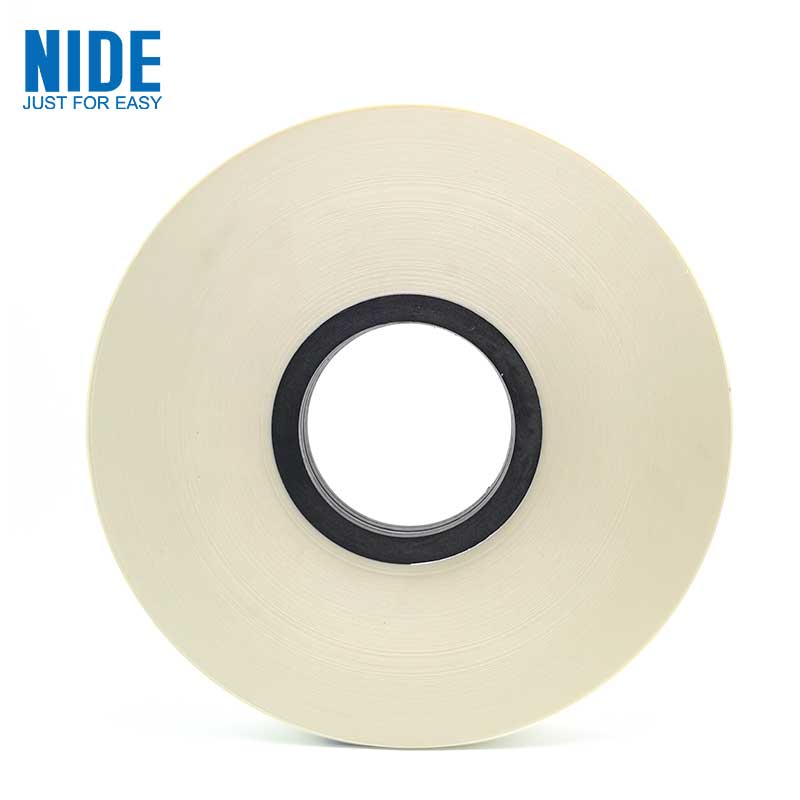

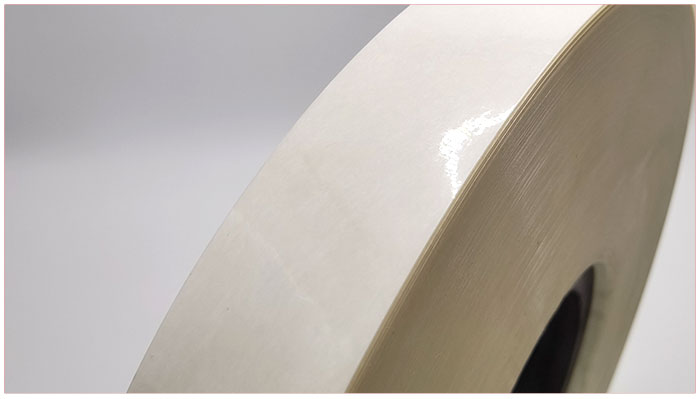

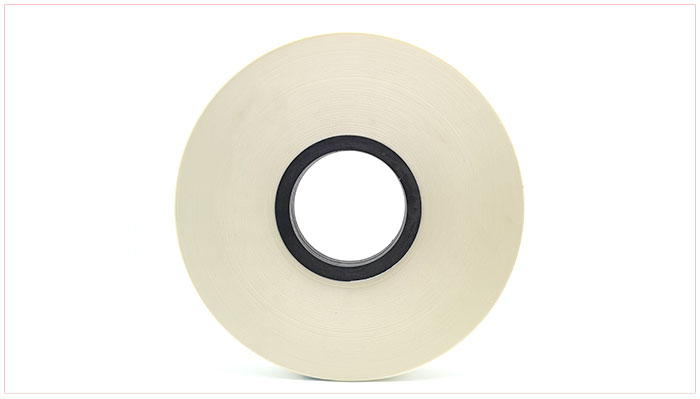

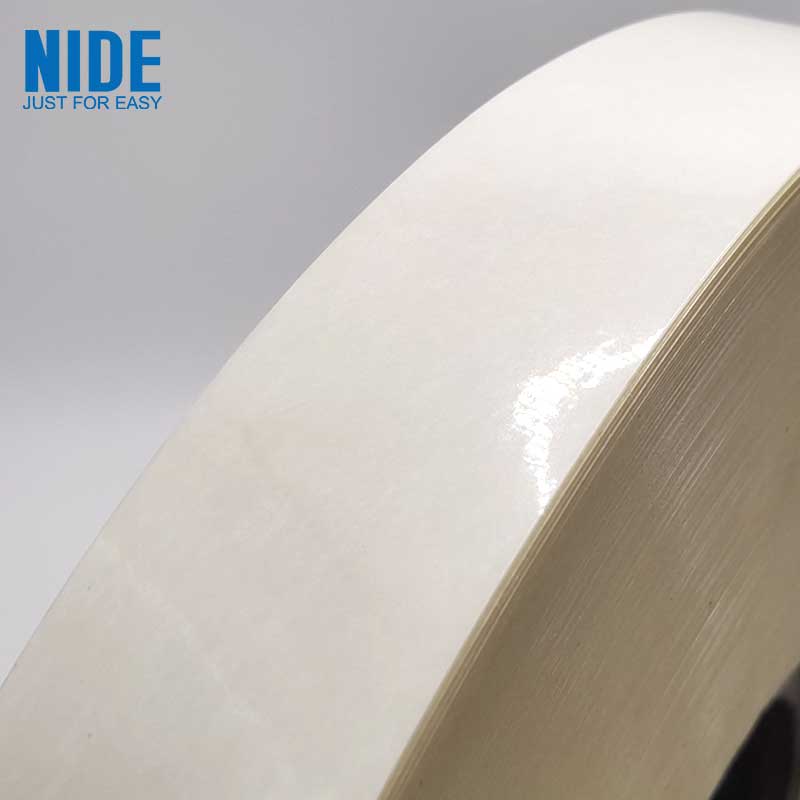

Introduction to AM insulation paper
AM insulation paper is a soft composite material made by coating polyester film with adhesive and bonding two layers of rolled polyamide aromatic fiber paper Nomex
Insulation level: H level, temperature resistance of 180 ℃.
This insulation paper combines fire-resistant fiber insulation paper with high temperature resistance of 220 ℃ and excellent dielectric strength and mechanical toughness of polyester film. It is widely used in electrical equipment, especially for insulation between slots, phases, turns, and pads of motors.
Product specifications:
Product Name: AM insulation paper
Heat resistance level: H
Color: White
Width: 5-1000mm,
Thickness: 0.15-0.40mm
Temperature: 180 ℃
|
Properties |
Unit |
Parameter |
|||||||||
|
Insulation paper thickness |
MM |
0.09 |
0.11 |
0.15 |
0.19 |
0.20 |
0.23 |
0.25 |
0.30 |
0.36 |
0.41 |
|
Thickness deviation |
MM |
±0.01 |
±0.01 |
±0.02 |
±0.02 |
±0.02 |
±0.02 |
±0.03 |
±0.03 |
±0.04 |
±0.04 |
|
Grammage and deviation |
GSM |
93±9 |
113±11 |
183±18 |
218±22 |
253±25 |
288±29 |
308±31 |
393±39 |
463±46 |
533±53 |
|
Film thickness |
MM |
0.036 |
0.050 |
0.100 |
0.125 |
0.150 |
0.175 |
0.190 |
0.250 |
0.300 |
0.350 |
|
Breakdown voltage |
KV |
≥5 |
≥6 |
≥9 |
≥10 |
≥11 |
≥13 |
≥14 |
≥16 |
≥18 |
≥22 |
|
Tensile strength (MD) |
N/CM |
≥60 |
≥80 |
≥150 |
≥190 |
≥220 |
≥250 |
≥280 |
≥330 |
≥350 |
≥380 |
|
Tensile strength (TD) |
N/CM |
≥40 |
≥70 |
≥110 |
≥140 |
≥150 |
≥160 |
≥180 |
≥280 |
≥300 |
≥330 |
|
Tensile strength after folding (MD) |
N/CM |
≥40 |
≥70 |
≥110 |
≥140 |
≥165 |
≥190 |
≥240 |
≥280 |
≥300 |
≥330 |
|
Tensile strength after folding (TD) |
N/CM |
≥20 |
≥50 |
≥90 |
≥110 |
≥115 |
≥120 |
≥130 |
≥180 |
≥200 |
≥230 |
Information needed for insulation material inquiry
It will be better if customer could send us detailed drawing including below information.
a. Insulation material type: insulation paper, wedge, (including DMD,DM, polyester film, PMP,PET, NHN , NMN ,PM ,Red Vulcanized Fiber,)
b. Insulation material dimension: width, thickness, tolerance.
c. Insulation material thermal class: Class F, Class E, Class B, Class H , Class C
d. Insulation material applications
e. Required quantity: normally its weight
f. Other technical requirement.
We also supply different types of electrical insulation materials for stator or armatures, such as insulation paper and insulation wedge with different class degree. DMD Class B/F, DM Class B/F, Polyester film Class E, Red Vulcanized Fiber Class A, NH& NHN, etc
Besides, we can supply the full range of motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper material, shaft, magnet, fan, motor cover,etc.
