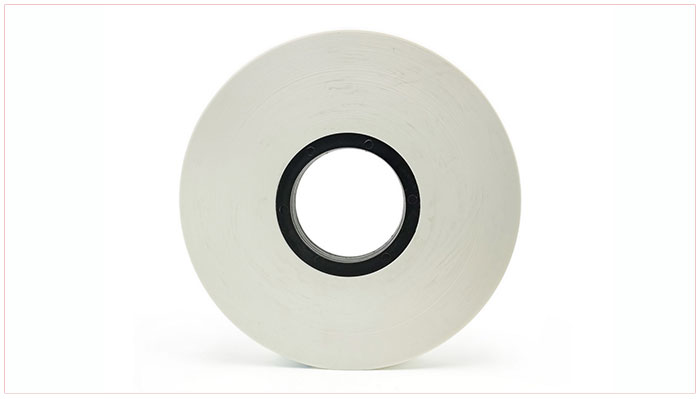

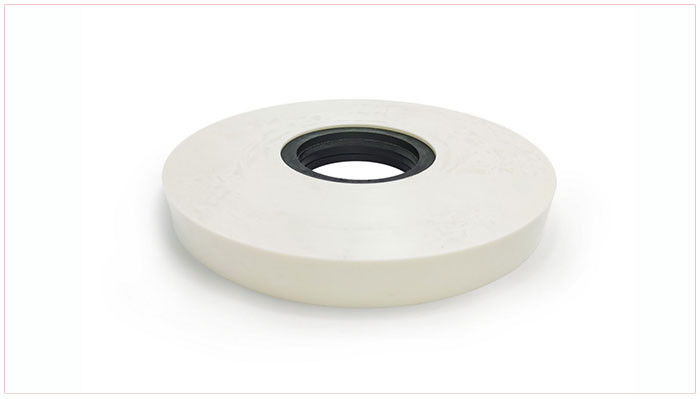

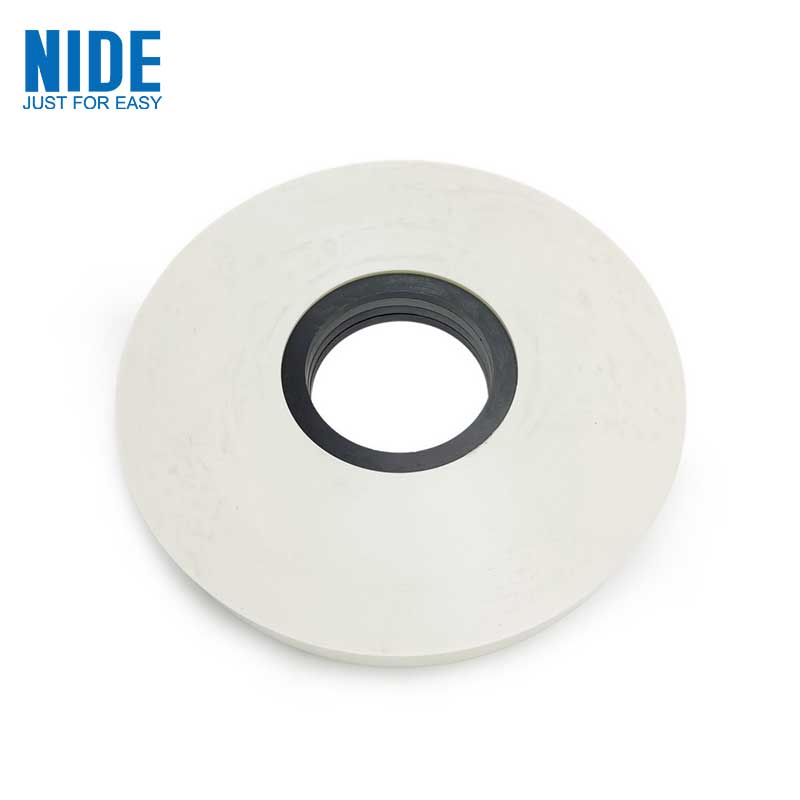

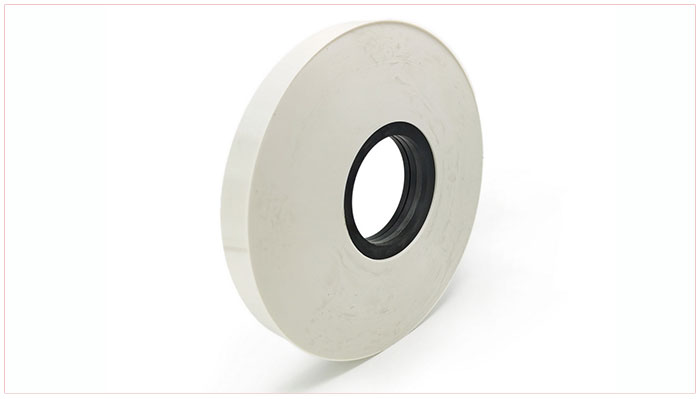

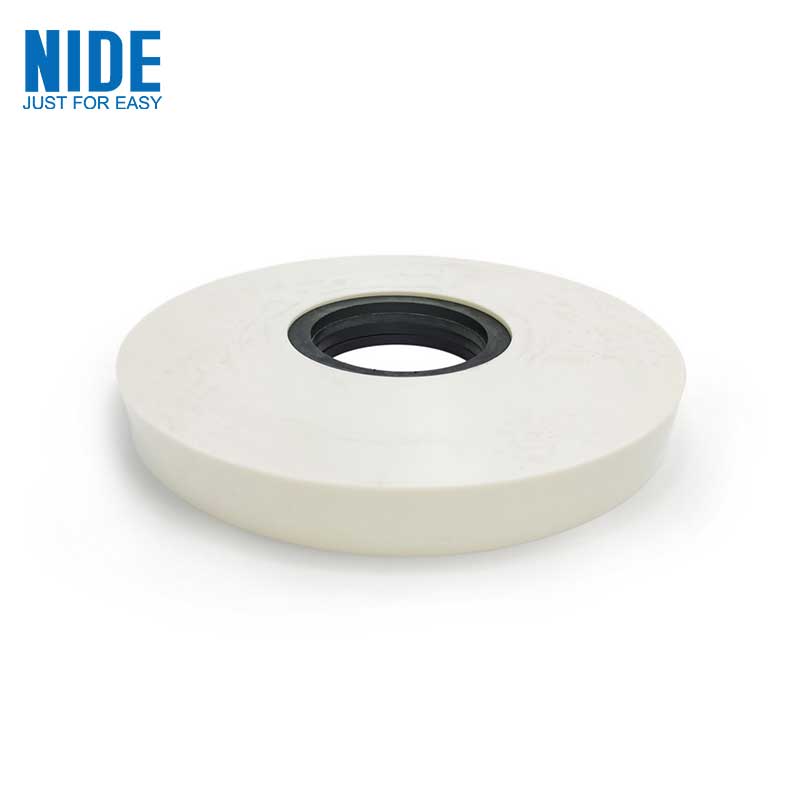

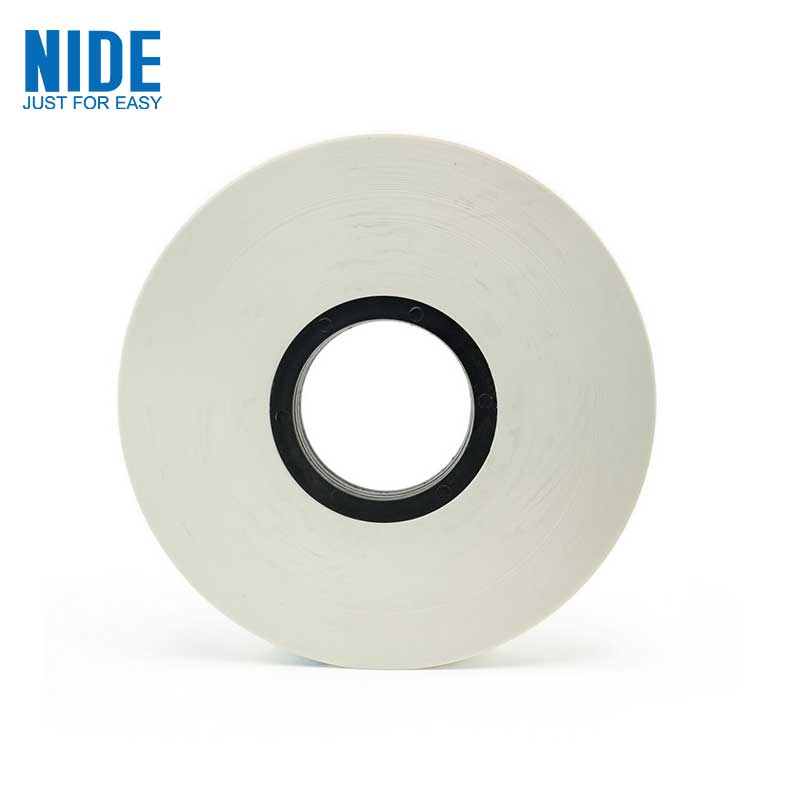

EM6 6021 PET Polyester Film Insulation Paper Material

NDPJ-JYZ-EM6-6021

EM6 6021 insulation paper material has good electrical performance, breakdown resistance, low shrinkage, low moisture absorption, and high heat resistance;

Details

EM6 6021 PET Polyester Film Insulation Paper Material

Basic information

6021 PET polyester film is a soft composite material composed of multiple layers of PET polyester film coated with adhesive.

Product specifications:

Product Name: EM6 6021 PET Insulation Paper

Heat resistance level: F

Color: White

Width: 5-1000mm,

Thickness: 0.13-0.35mm

Temperature: 155 ℃

Characteristics of 6021 PET insulation material products

Has good electrical performance, breakdown resistance, low shrinkage, low moisture absorption, and high heat resistance;

Has good airtightness and fragrance retention; Moderate moisture resistance, with a decrease in moisture permeability at low temperatures.

It has excellent physical and chemical properties, dimensional stability, transparency, and recyclability, and can be widely used in fields such as magnetic recording, photosensitive materials, electronics, electrical insulation, industrial films, packaging decoration, screen protection, optical grade mirror surface protection, etc.

It has excellent mechanical properties, and its strength and toughness are the best among all thermoplastic plastics. Its tensile strength and impact strength are much higher than those of ordinary films; And it has good strength and stable size, suitable for secondary processing such as printing and paper bags.

Has excellent heat and cold resistance, as well as good chemical and oil resistance.

Product storage

The product should be stored in a dry, clean, and well ventilated warehouse with a temperature below 30 ° C, and should not be near fire sources, heat sources, or exposed to sunlight.

EM6 6021 Insulation Paper Supplier

6021 Insulation Paper Manufacturer

6021 Insulation Paper Supplier

Properties	Unit	Parameter
Insulation paper thickness	MM	0.09	0.11	0.15	0.19	0.20	0.23	0.25	0.30	0.36	0.41
Thickness deviation	MM	±0.01	±0.01	±0.02	±0.02	±0.02	±0.02	±0.03	±0.03	±0.04	±0.04
Grammage and deviation	GSM	93±9	113±11	183±18	218±22	253±25	288±29	308±31	393±39	463±46	533±53
Film thickness	MM	0.036	0.050	0.100	0.125	0.150	0.175	0.190	0.250	0.300	0.350
Breakdown voltage	KV	≥5	≥6	≥9	≥10	≥11	≥13	≥14	≥16	≥18	≥22
Tensile strength (MD)	N/CM	≥60	≥80	≥150	≥190	≥220	≥250	≥280	≥330	≥350	≥380
Tensile strength (TD)	N/CM	≥40	≥70	≥110	≥140	≥150	≥160	≥180	≥280	≥300	≥330
Tensile strength after folding (MD)	N/CM	≥40	≥70	≥110	≥140	≥165	≥190	≥240	≥280	≥300	≥330
Tensile strength after folding (TD)	N/CM	≥20	≥50	≥90	≥110	≥115	≥120	≥130	≥180	≥200	≥230

Information needed for insulation material inquiry

It will be better if customer could send us detailed drawing including below information.

a. Insulation material type: insulation paper, wedge, (including DMD,DM, polyester film, PMP,PET, NHN , NMN ,PM ,Red Vulcanized Fiber,)

b. Insulation material dimension: width, thickness, tolerance.

c. Insulation material thermal class: Class F, Class E, Class B, Class H , Class C

d. Insulation material applications

e. Required quantity: normally its weight

f. Other technical requirement.

We also supply different types of electrical insulation materials for stator or armatures, such as insulation paper and insulation wedge with different class degree. DMD Class B/F, DM Class B/F, Polyester film Class E, Red Vulcanized Fiber Class A, NH& NHN, etc

Besides, we can supply the full range of motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper material, shaft, magnet, fan, motor cover,etc.
