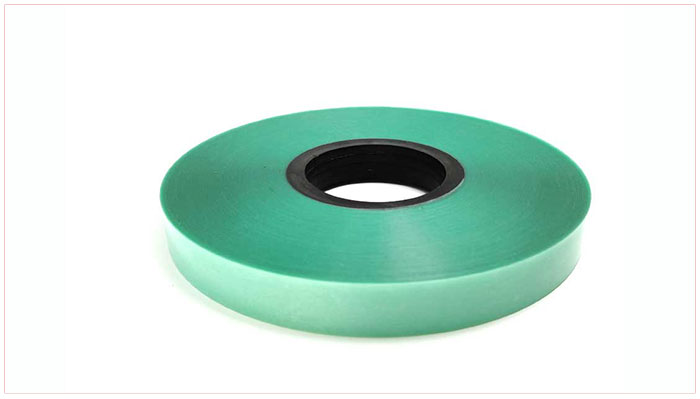

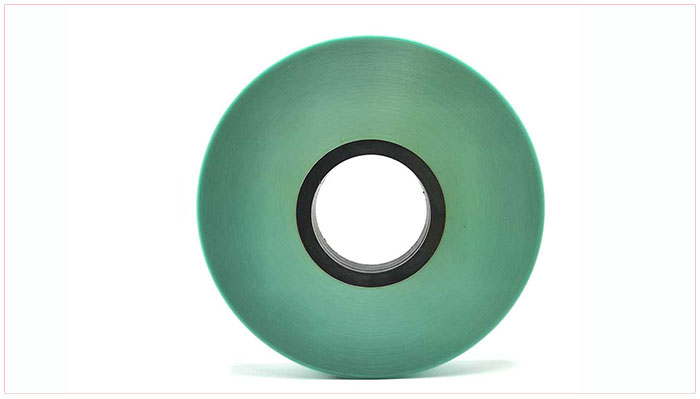

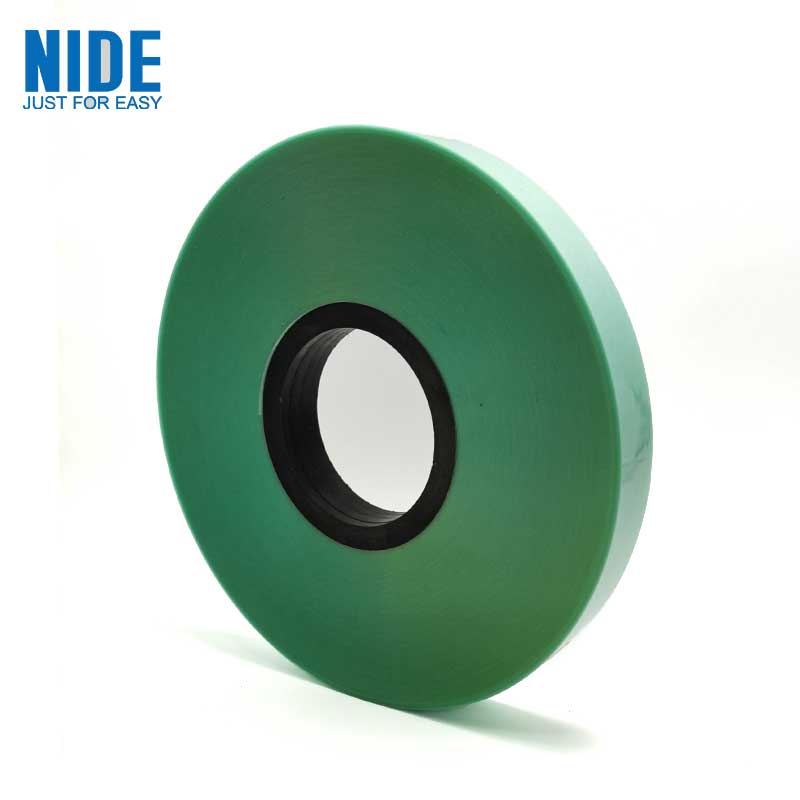

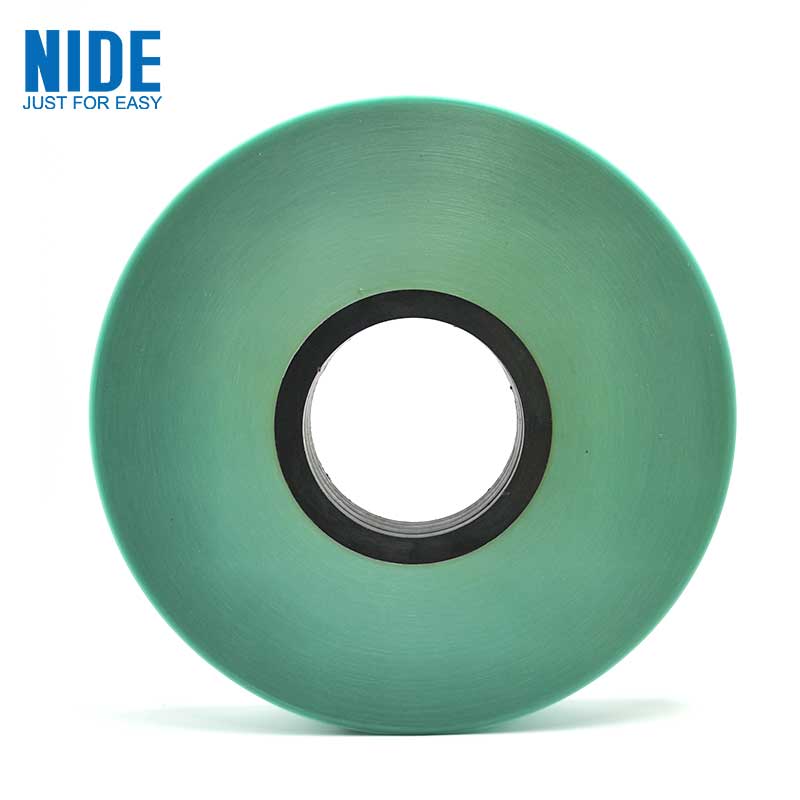

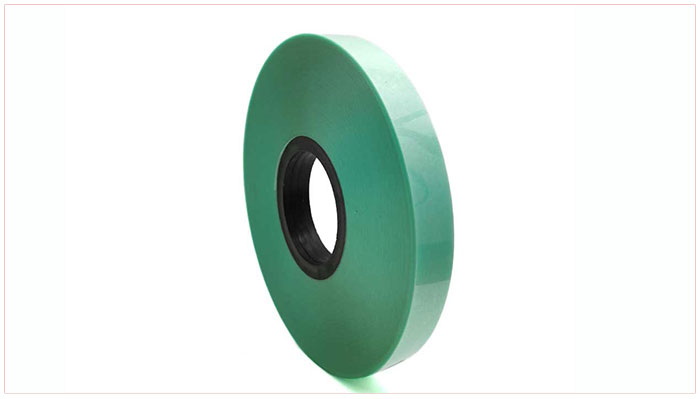

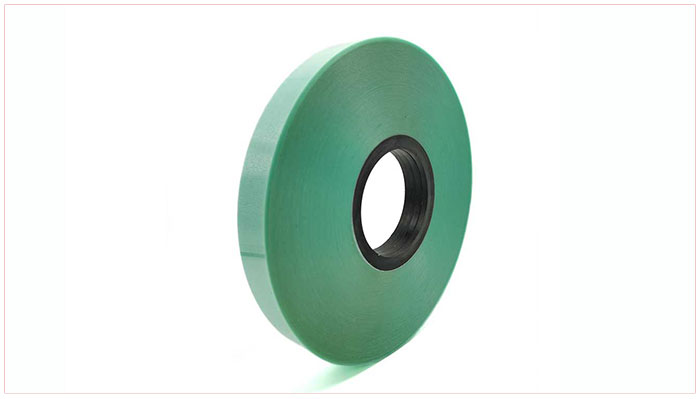

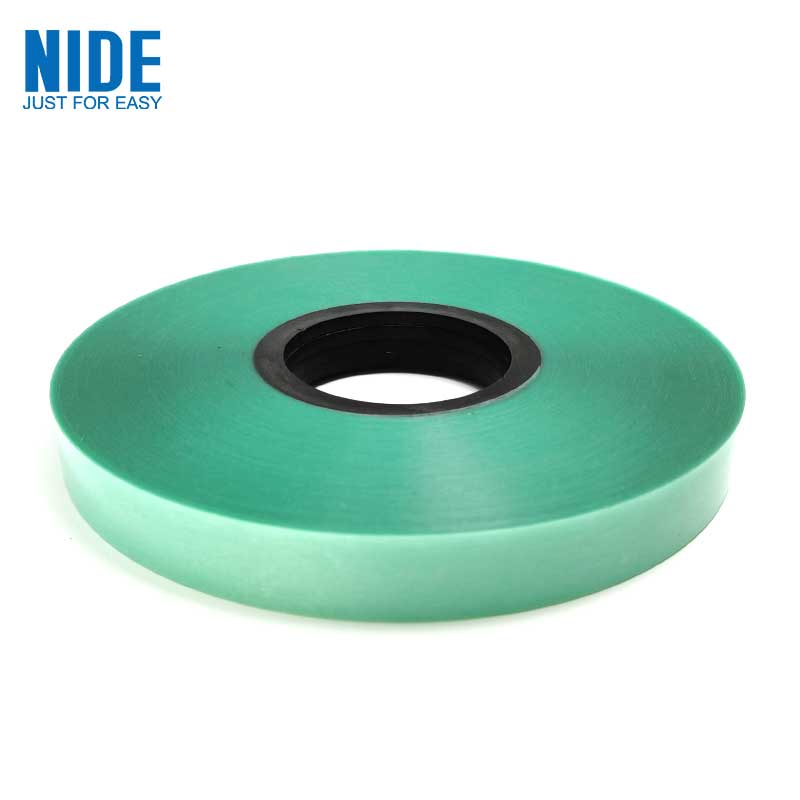

6644 DM F Class Insulation Paper Composite Material For Motor Insulation Winding

NDPJ-JYZ-FDM-6644

6644 FDM insulation paper material is a two-layer soft composite material composed of polyester film single-sided coated with adhesive and bonded with polyester fiber non-woven fabric. The adhesive used is acid free and heat-resistant.

Details

6644 DM F Class Insulation Paper Composite Material For Motor Insulation Winding

6644 FDM insulation paper composite material is suitable for wrapping insulation of motors, transformers, reactors, copper, and aluminum wires.

Product Description:

Has excellent mechanical properties, dielectric properties, and adhesive properties.

Suitable for slot insulation, turn to turn insulation, and pad insulation in motors and electrical appliances.

Product Specifications:

Product Name: 6644 DM Insulation Paper

Heat resistance level: F

Color: Green

Width: 5-1000mm,

Thickness: 0.15-0.40mm

Temperature: 155℃

Characteristics: It has excellent mechanical properties, dielectric properties, and adhesion.

Usage: Suitable for slot insulation, turn to turn insulation, and pad insulation in motors and electrical appliances.

6644 DM Insulation Paper Supplier

6644 DM Insulation Paper Manufacturer

6644 DM Insulation Paper Supplier

6644 DM F Insulation Paper Supplier

Properties	Unit	Parameter
Insulation paper thickness	MM	0.09	0.11	0.15	0.19	0.20	0.23	0.25	0.30	0.36	0.41
Thickness deviation	MM	±0.01	±0.01	±0.02	±0.02	±0.02	±0.02	±0.03	±0.03	±0.04	±0.04
Grammage and deviation	GSM	93±9	113±11	183±18	218±22	253±25	288±29	308±31	393±39	463±46	533±53
Film thickness	MM	0.036	0.050	0.100	0.125	0.150	0.175	0.190	0.250	0.300	0.350
Breakdown voltage	KV	≥5	≥6	≥9	≥10	≥11	≥13	≥14	≥16	≥18	≥22
Tensile strength (MD)	N/CM	≥60	≥80	≥150	≥190	≥220	≥250	≥280	≥330	≥350	≥380
Tensile strength (TD)	N/CM	≥40	≥70	≥110	≥140	≥150	≥160	≥180	≥280	≥300	≥330
Tensile strength after folding (MD)	N/CM	≥40	≥70	≥110	≥140	≥165	≥190	≥240	≥280	≥300	≥330
Tensile strength after folding (TD)	N/CM	≥20	≥50	≥90	≥110	≥115	≥120	≥130	≥180	≥200	≥230

Information needed for insulation material inquiry

It will be better if customer could send us detailed drawing including below information.

a. Insulation material type: insulation paper, wedge, (including DMD,DM, polyester film, PMP,PET, NHN , NMN ,PM ,Red Vulcanized Fiber,)

b. Insulation material dimension: width, thickness, tolerance.

c. Insulation material thermal class: Class F, Class E, Class B, Class H , Class C

d. Insulation material applications

e. Required quantity: normally its weight

f. Other technical requirement.

We also supply different types of electrical insulation materials for stator or armatures, such as insulation paper and insulation wedge with different class degree. DMD Class B/F, DM Class B/F, Polyester film Class E, Red Vulcanized Fiber Class A, NH& NHN, etc

Besides, we can supply the full range of motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper material, shaft, magnet, fan, motor cover,etc.
