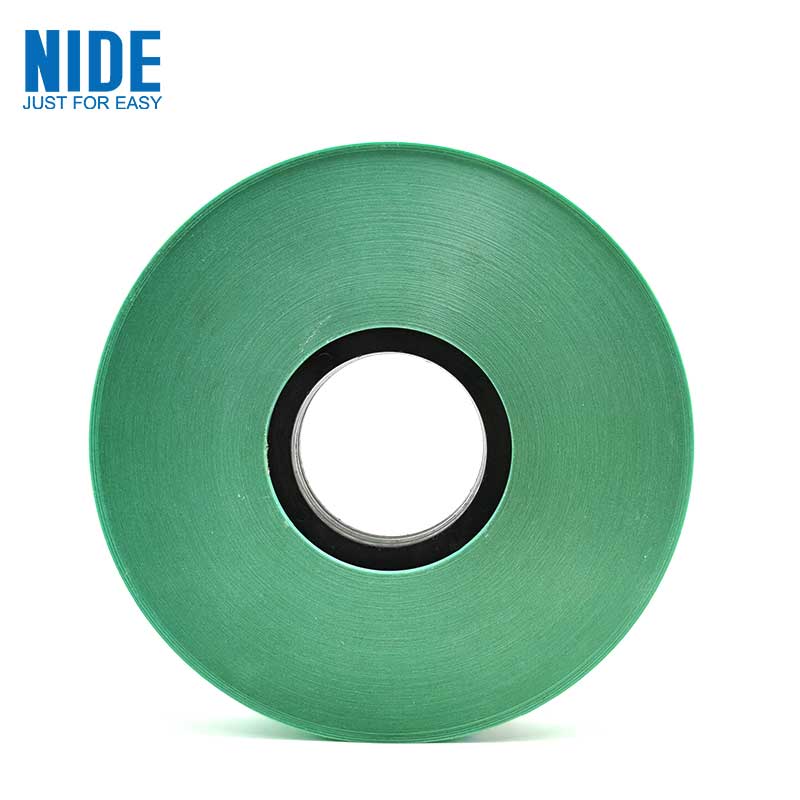

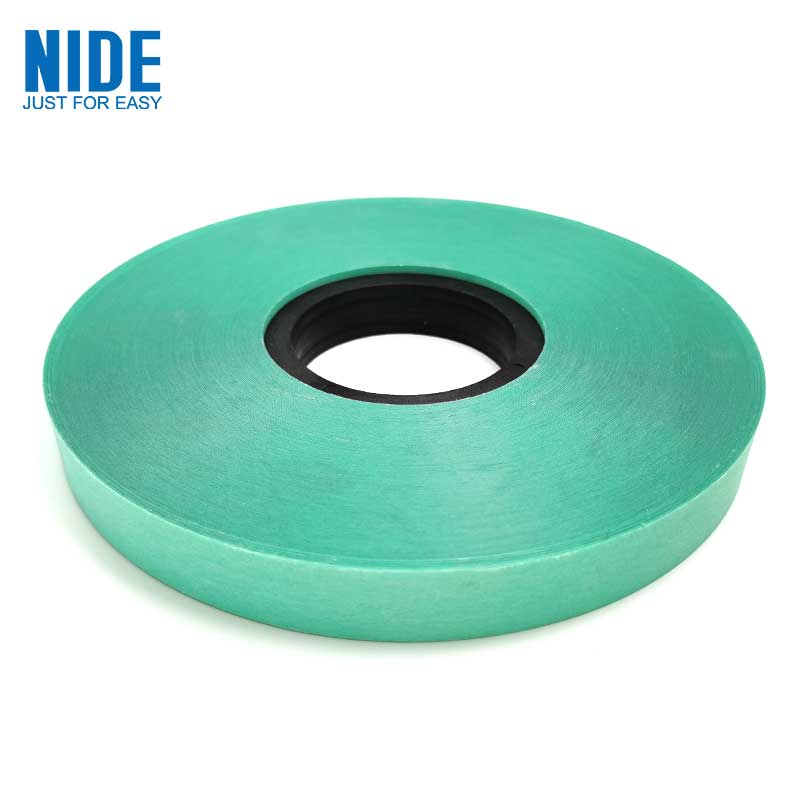

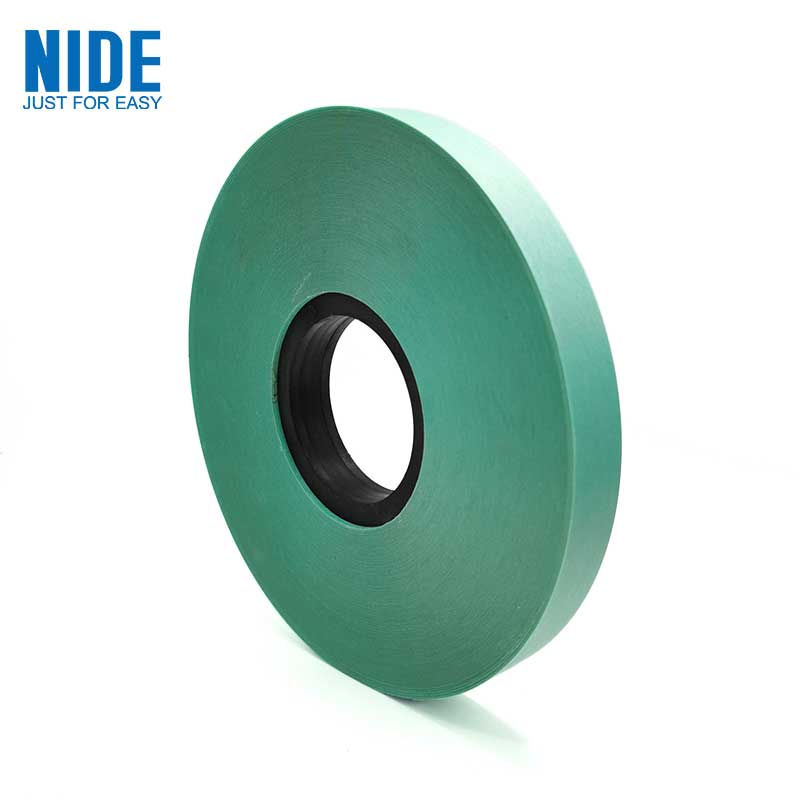

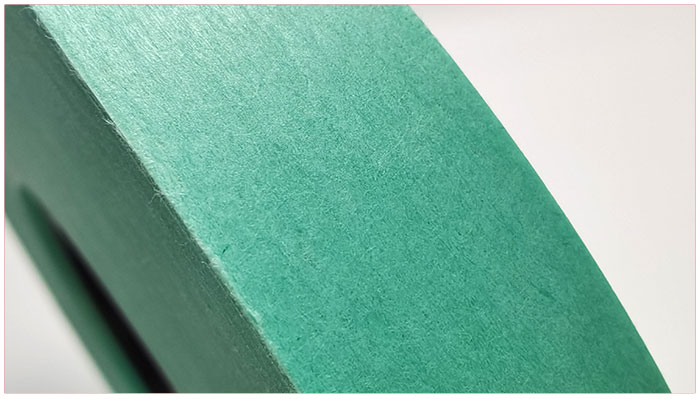

Wholesale F-Class 6641 DMD Polyester Film Polyester Motor Insulation Paper Material

NDPJ-JYZ-FDMD-6641

6641 FDMD insulation paper has good mechanical strength, dielectric properties, and high heat resistance (B and F grades), and is a standardized insulation material for Y series motors.

Details

Wholesale F-Class 6641 DMD Polyester Film Polyester Motor Insulation Paper Material

6641 DMD is a three-layer soft composite material made by coating modified polyester film on both sides with heat-resistant adhesive and bonding polyester fiber non-woven fabric.6641 F-Class DMD insulation paper is used for slot insulation, pad insulation, and turn to turn insulation in stator windings of motors and electrical appliances.

Product Features:

6641 FDMD insulation paper has good mechanical strength, dielectric properties, and high heat resistance (B and F grades), and is a standardized insulation material for Y series motors.

F grade, with good dielectric properties, high heat resistance and mechanical strength;

Suitable for use as insulation for ordinary and wet tropical electrical troughs, inter turn insulation, and pad insulation for Class F insulation, as well as for electrical coil insulation.

It can be used as slot insulation, turn to turn and layer to layer insulation, pad insulation core, and transformer insulation for small and medium-sized motors.

Product specifications:

Product Name: 6641 DMD Insulation Paper

Heat resistance level: F

Color : Green

Width: 5-1000mm,

Thickness: 0.13-0.47mm

Temperature: 155℃

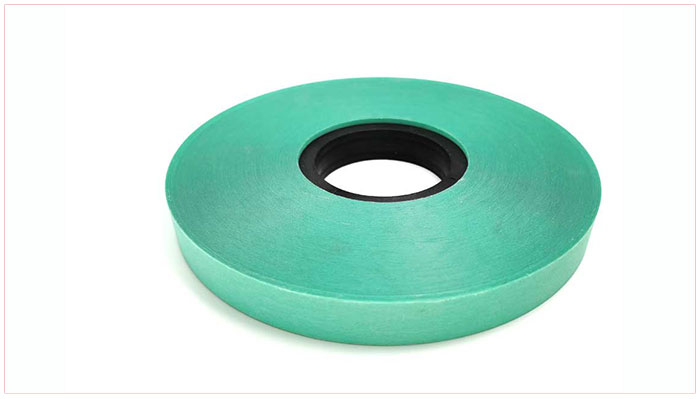

F-Class 6641 DMD Insulation Paper Supplier

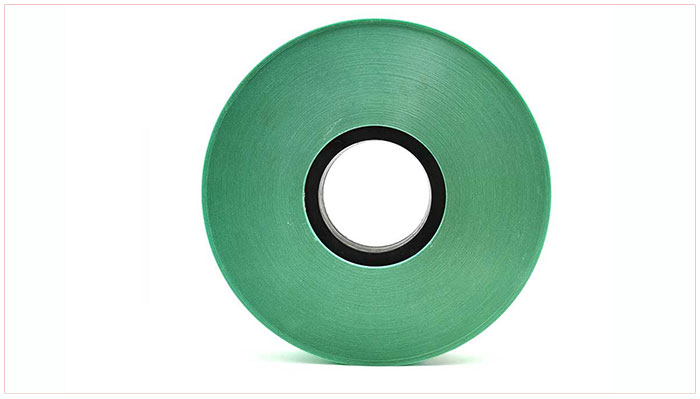

F-Class 6641 DMD Insulation Paper Manufacturer

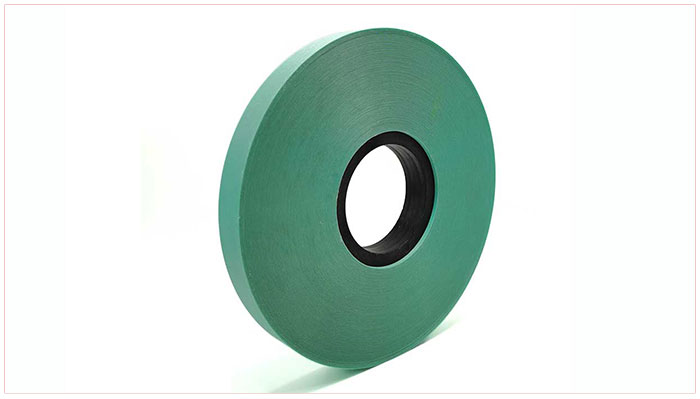

F-Class 6641 DMD Insulation Paper Supplier

Properties	Unit	Parameter
Insulation paper thickness	MM	0.09	0.11	0.15	0.19	0.20	0.23	0.25	0.30	0.36	0.41
Thickness deviation	MM	±0.01	±0.01	±0.02	±0.02	±0.02	±0.02	±0.03	±0.03	±0.04	±0.04
Grammage and deviation	GSM	93±9	113±11	183±18	218±22	253±25	288±29	308±31	393±39	463±46	533±53
Film thickness	MM	0.036	0.050	0.100	0.125	0.150	0.175	0.190	0.250	0.300	0.350
Breakdown voltage	KV	≥5	≥6	≥9	≥10	≥11	≥13	≥14	≥16	≥18	≥22
Tensile strength (MD)	N/CM	≥60	≥80	≥150	≥190	≥220	≥250	≥280	≥330	≥350	≥380
Tensile strength (TD)	N/CM	≥40	≥70	≥110	≥140	≥150	≥160	≥180	≥280	≥300	≥330
Tensile strength after folding (MD)	N/CM	≥40	≥70	≥110	≥140	≥165	≥190	≥240	≥280	≥300	≥330
Tensile strength after folding (TD)	N/CM	≥20	≥50	≥90	≥110	≥115	≥120	≥130	≥180	≥200	≥230

Information needed for insulation material inquiry

It will be better if customer could send us detailed drawing including below information.

a. Insulation material type: insulation paper, wedge, (including DMD,DM, polyester film, PMP,PET, NHN , NMN ,PM ,Red Vulcanized Fiber,)

b. Insulation material dimension: width, thickness, tolerance.

c. Insulation material thermal class: Class F, Class E, Class B, Class H , Class C

d. Insulation material applications

e. Required quantity: normally its weight

f. Other technical requirement.

We also supply different types of electrical insulation materials for stator or armatures, such as insulation paper and insulation wedge with different class degree. DMD Class B/F, DM Class B/F, Polyester film Class E, Red Vulcanized Fiber Class A, NH& NHN, etc

Besides, we can supply the full range of motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper material, shaft, magnet, fan, motor cover,etc.
