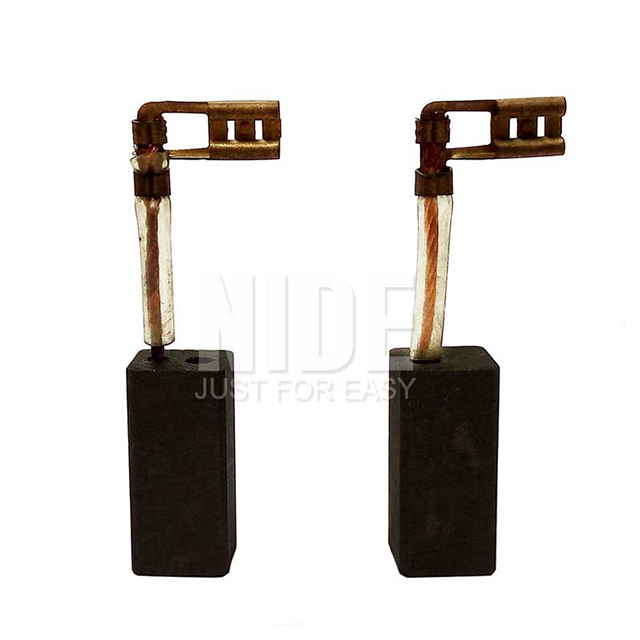

Appliances Application Carbon Brush

NDPJ-TS-16



Categoryes:  Carbon brush

CONTACT US
Details

We make various kinds of carbon brush as per customer’s drawing and samples.

Our carbon brush is widely applied the different industrials.

1)    The carbon brush for power tools: electro motors, grinding machines, drilling machines, hammers, electrical planer ect.

2)    Carbon brush for household appliances: air conditioning, or other household appliances.

3)    Carbon brush for automotive industry: windscreen wipers, fan window lifts, ABS baking systems, etc.

4)    Carbon brush for motors which commutator can not be used.

5)    Carbon brush for small and special motor.



Technical requirement

Material

Model

resistance

Bulk density

Rated current density

Rockwell hardness

loading

Copper
(low content) and graphite

J220

6±50%

2.23±10%

12

90(-46%~+40%)

40KG

J280

7±30%

2.3±10%

12

80(-60%~+30%)

60KG

J203

8.8±50%

2.21±10%

12

75(-60%~+20%)

60KG

Advantage: good lubricity and duration, low   sliding noise, it can form a surface film fast.

Application: suitable for permanent magnet   DC micro motor under 48V, starter motor under 28V.

Competitive advantages

1.We directly supply our carbon brushes to many countries, like USA, France, Turkey, Iran, India, Brazil, Argentina, Mexico etc.

2. Our carbon brush has a wide application, such as automotive industry, household appliances, hammers, planers and etc.

3. We have a wide range of carbon brush.

4. We could customize carbon brush for our customer.

Information needed for carbon brush inquiry:

It will be better if customer could send us detailed drawing including below information.

1. Carbon brush dimension: length, width, height, lead wire length

2. Carbon brush material:

3. Carbon brush voltage and current requirement.

4. Carbon brush applications

5. Required quantity

6. Other technical requirement.





We can produce a wide range of carbon brush. Our carbon brush is  widely suitable for automotive industry, household appliances, hammers, planers and etc. We could customize carbon brush for our customer and directly supply our carbon brushes to more than 50 countries around the world.

carbon brush

motor carbon brush


About Motor component and  accessories

NIDE can supply the full range of electric motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.

motor part, motor components, motor accessories
