6642 DMD Insulation Material H-grade 180 Degree High-Temperature Resistant FDMD Insulation Paper

NDPJ-JYZ-FDMD-6642

6642 FDMD insulation paper combines the excellent impregnation performance of non-woven fabrics and the good dielectric strength of polyester films, with good dielectric properties, high heat resistance, and mechanical strength.

Details

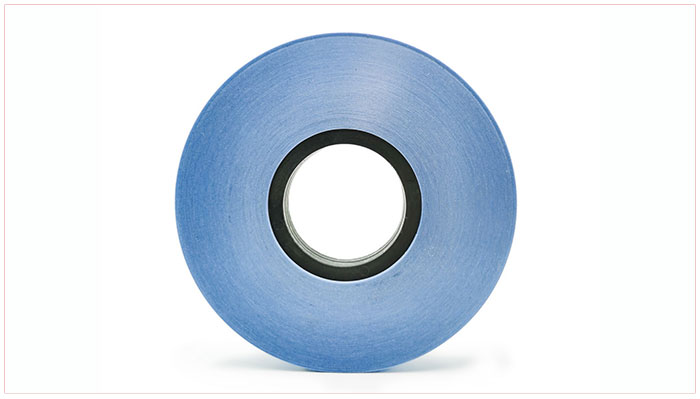

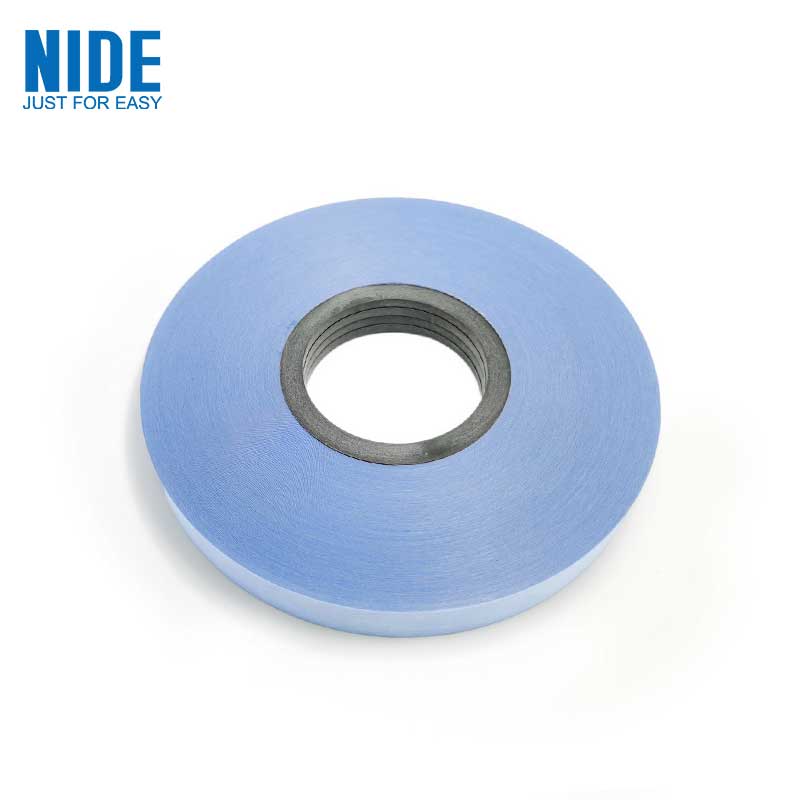

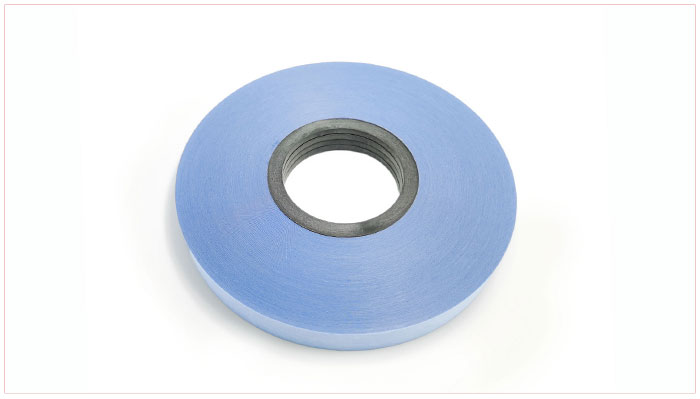

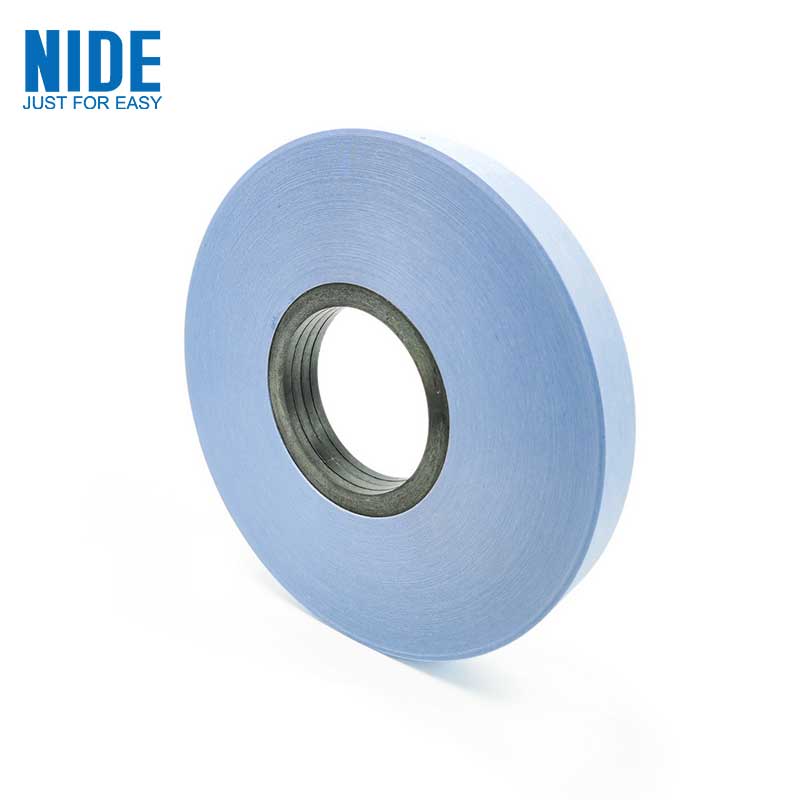

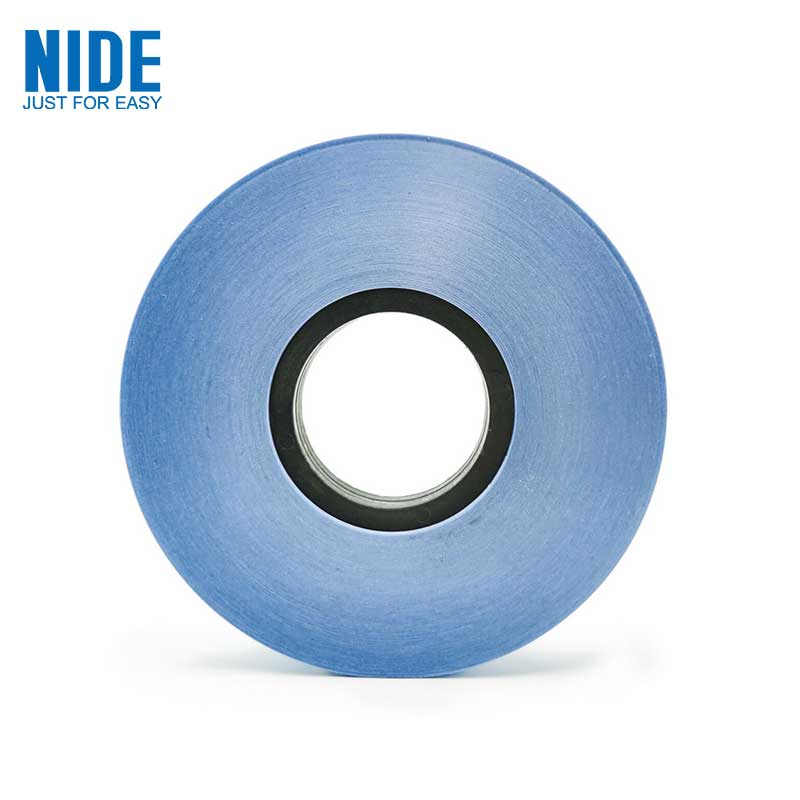

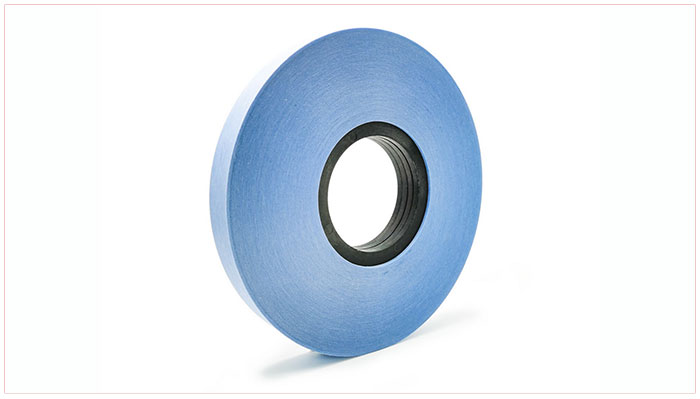

6642 DMD Insulation Material H-grade 180 Degree High-Temperature Resistant FDMD Insulation Paper

Product Description:

6642 DMD insulation paper is a composite material made of polyester film coated with H-grade adhesive on both sides and polyester fiber paper on both sides. H-grade, with good dielectric properties, high heat resistance and mechanical strength;

Product specifications:

Product Name: 6642 FDMD Insulation Paper

Heat resistance level: H

Color: Blue

Width: 5-1000mm,

Thickness: 0.13-0.47mm

Temperature: 180 ℃

Product features:

Widely applicable to electrical equipment, suitable for slot to slot insulation, turn to turn insulation, and pad insulation of H-class motors, and can also be used as insulation for electrical coils.

The appearance surface is uniform, free of pilling, bubbles, pinholes, wrinkles, and defects.

6642 DMD Insulation Paper Supplier

6642 DMD Insulation Paper Manufacturer

6642 DMD Insulation Paper Supplier

Properties	Unit	Parameter
Insulation paper thickness	MM	0.09	0.11	0.15	0.19	0.20	0.23	0.25	0.30	0.36	0.41
Thickness deviation	MM	±0.01	±0.01	±0.02	±0.02	±0.02	±0.02	±0.03	±0.03	±0.04	±0.04
Grammage and deviation	GSM	93±9	113±11	183±18	218±22	253±25	288±29	308±31	393±39	463±46	533±53
Film thickness	MM	0.036	0.050	0.100	0.125	0.150	0.175	0.190	0.250	0.300	0.350
Breakdown voltage	KV	≥5	≥6	≥9	≥10	≥11	≥13	≥14	≥16	≥18	≥22
Tensile strength (MD)	N/CM	≥60	≥80	≥150	≥190	≥220	≥250	≥280	≥330	≥350	≥380
Tensile strength (TD)	N/CM	≥40	≥70	≥110	≥140	≥150	≥160	≥180	≥280	≥300	≥330
Tensile strength after folding (MD)	N/CM	≥40	≥70	≥110	≥140	≥165	≥190	≥240	≥280	≥300	≥330
Tensile strength after folding (TD)	N/CM	≥20	≥50	≥90	≥110	≥115	≥120	≥130	≥180	≥200	≥230

Information needed for insulation material inquiry

It will be better if customer could send us detailed drawing including below information.

a. Insulation material type: insulation paper, wedge, (including DMD,DM, polyester film, PMP,PET, NHN , NMN ,PM ,Red Vulcanized Fiber,)

b. Insulation material dimension: width, thickness, tolerance.

c. Insulation material thermal class: Class F, Class E, Class B, Class H , Class C

d. Insulation material applications

e. Required quantity: normally its weight

f. Other technical requirement.

We also supply different types of electrical insulation materials for stator or armatures, such as insulation paper and insulation wedge with different class degree. DMD Class B/F, DM Class B/F, Polyester film Class E, Red Vulcanized Fiber Class A, NH& NHN, etc

Besides, we can supply the full range of motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper material, shaft, magnet, fan, motor cover,etc.
