6650 NHN H-class insulation material high-temperature resistant insulation paper

NDPJ-JYZ-NHN-6650

6650 NHN insulation paper should be used for slot insulation, pad insulation, turn to turn insulation, slot wedge insulation, and interlayer insulation of transformers in low-voltage motors, electric tools, and electrical appliances.

Details

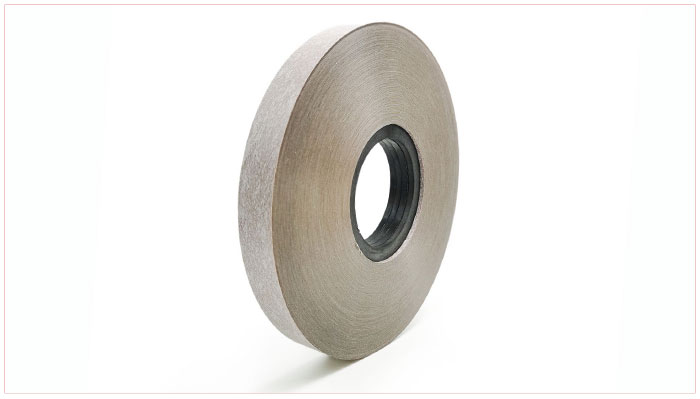

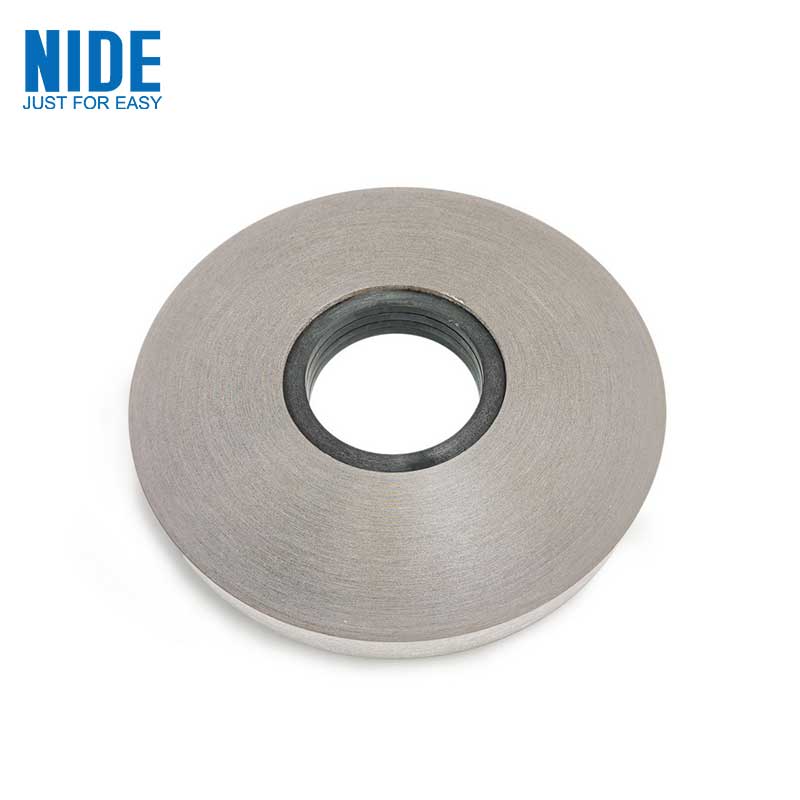

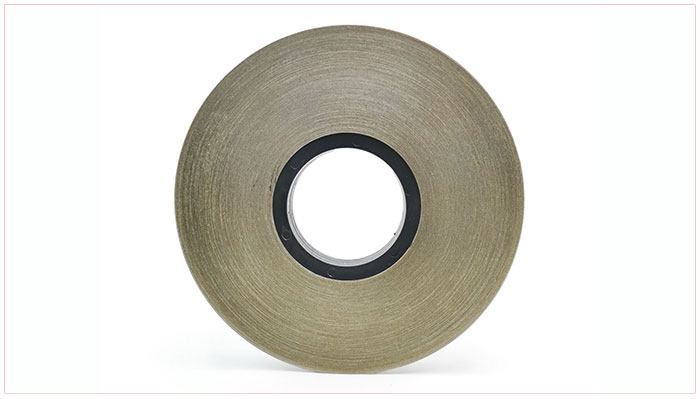

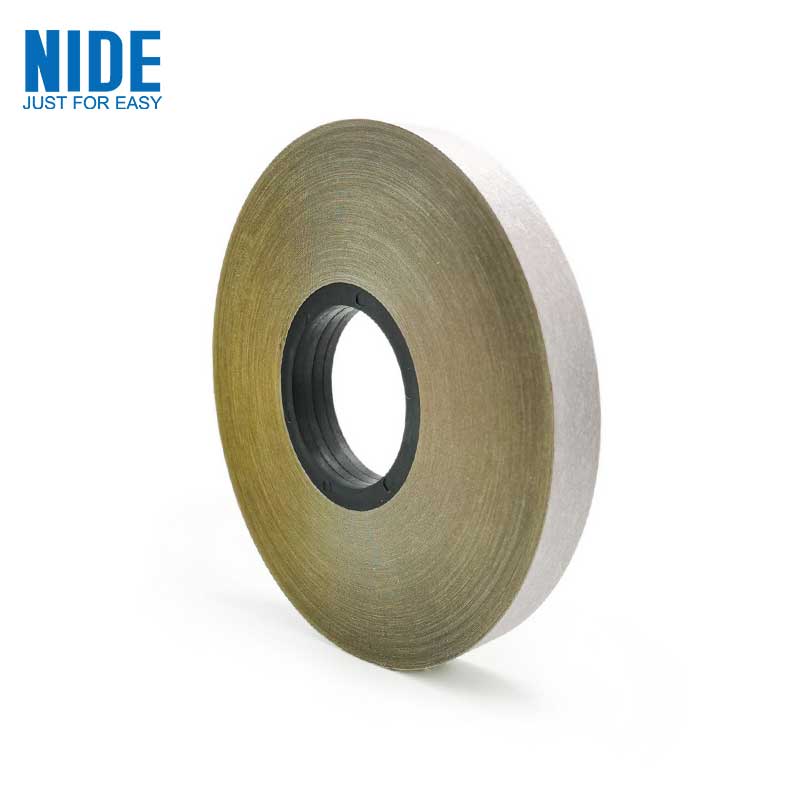

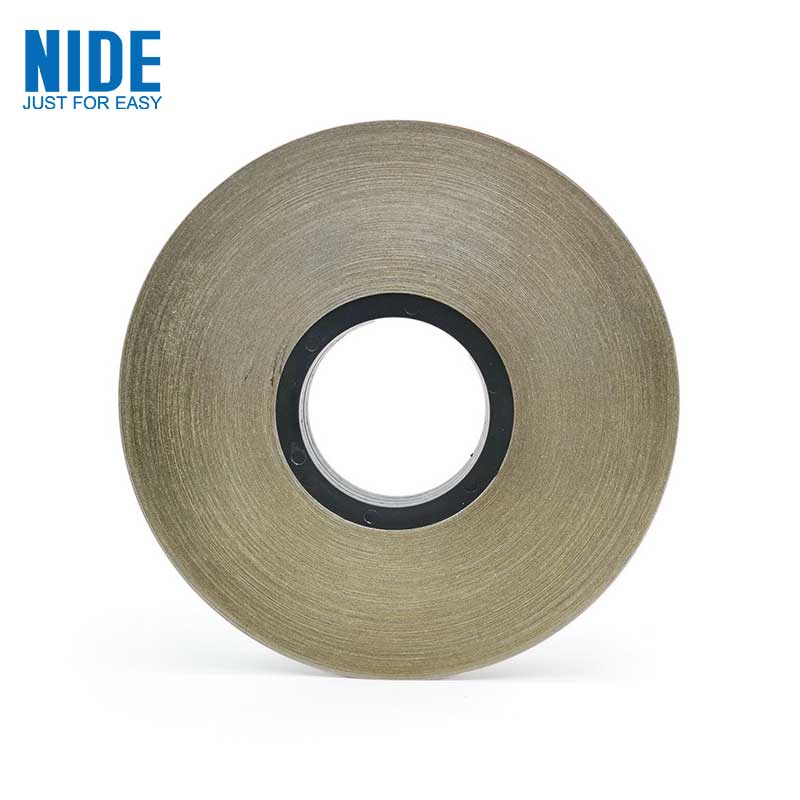

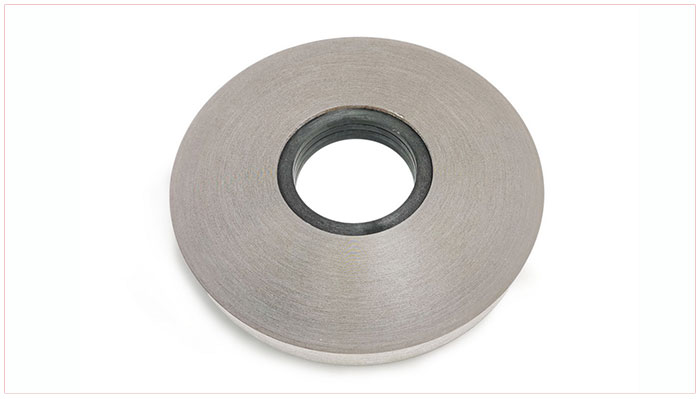

6650 NHN H-class insulation material high-temperature resistant insulation paper

Product Description:

The 6650 (NHN) polyimide film polyarylamide fiber paper composite material is composed of two layers of polyarylamide fiber paper bonded with one layer of polyimide film.

It has good dielectric and mechanical properties, especially outstanding mechanical properties at high temperatures and after being damp.

It has excellent heat resistance and good mechanical properties, making it a reliable H-class insulation material.

Suitable for slot insulation, turn to turn insulation, and pad insulation in special parts of H-class motors and electrical appliances, suitable for various harsh working environments.

Product specifications:

Product Name: 6650 NHN Insulation Paper

Heat resistance level: H

Color: Brown

Width: 5-1000mm,

Thickness: 0.15-0.35mm

Temperature: 180 ℃

Application

The appearance surface is uniform, free of pilling, bubbles, pinholes, wrinkles, and defects.

6650 NHN Insulation Paper Supplier

6650 NHN Insulation Paper Manufacturer

6650 NHN Insulation Paper Supplier

Properties	Unit	Parameter
Insulation paper thickness	MM	0.09	0.11	0.15	0.19	0.20	0.23	0.25	0.30	0.36	0.41
Thickness deviation	MM	±0.01	±0.01	±0.02	±0.02	±0.02	±0.02	±0.03	±0.03	±0.04	±0.04
Grammage and deviation	GSM	93±9	113±11	183±18	218±22	253±25	288±29	308±31	393±39	463±46	533±53
Film thickness	MM	0.036	0.050	0.100	0.125	0.150	0.175	0.190	0.250	0.300	0.350
Breakdown voltage	KV	≥5	≥6	≥9	≥10	≥11	≥13	≥14	≥16	≥18	≥22
Tensile strength (MD)	N/CM	≥60	≥80	≥150	≥190	≥220	≥250	≥280	≥330	≥350	≥380
Tensile strength (TD)	N/CM	≥40	≥70	≥110	≥140	≥150	≥160	≥180	≥280	≥300	≥330
Tensile strength after folding (MD)	N/CM	≥40	≥70	≥110	≥140	≥165	≥190	≥240	≥280	≥300	≥330
Tensile strength after folding (TD)	N/CM	≥20	≥50	≥90	≥110	≥115	≥120	≥130	≥180	≥200	≥230

Information needed for insulation material inquiry

It will be better if customer could send us detailed drawing including below information.

a. Insulation material type: insulation paper, wedge, (including DMD,DM, polyester film, PMP,PET, NHN , NMN ,PM ,Red Vulcanized Fiber,)

b. Insulation material dimension: width, thickness, tolerance.

c. Insulation material thermal class: Class F, Class E, Class B, Class H , Class C

d. Insulation material applications

e. Required quantity: normally its weight

f. Other technical requirement.

We also supply different types of electrical insulation materials for stator or armatures, such as insulation paper and insulation wedge with different class degree. DMD Class B/F, DM Class B/F, Polyester film Class E, Red Vulcanized Fiber Class A, NH& NHN, etc

Besides, we can supply the full range of motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper material, shaft, magnet, fan, motor cover,etc.
