Your current location：Home > Products > Insulation paper > Wholesale H-class NM insulation paper material motor stator and rotor insulation paper

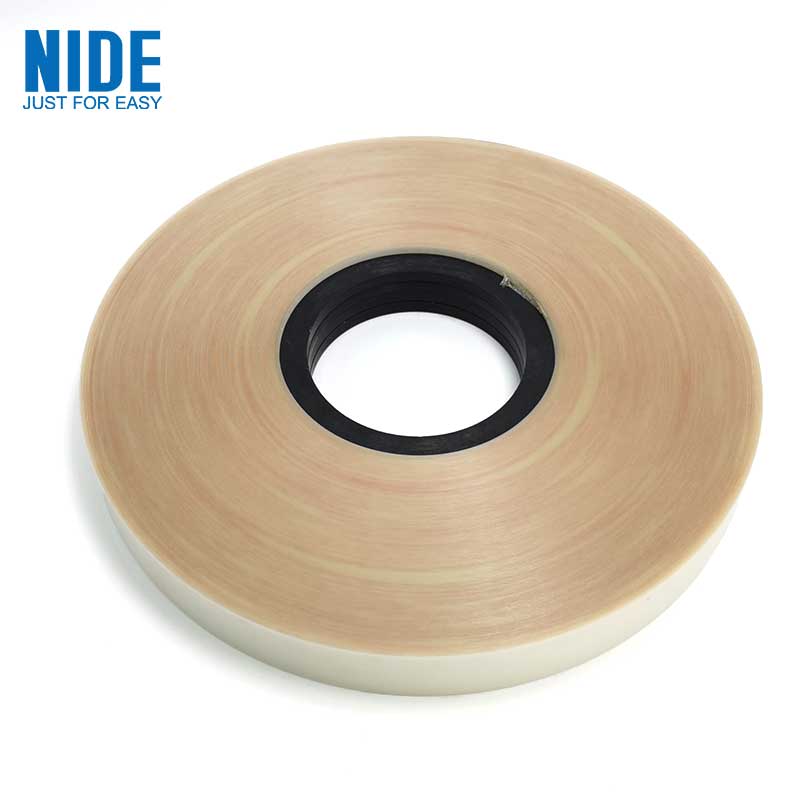

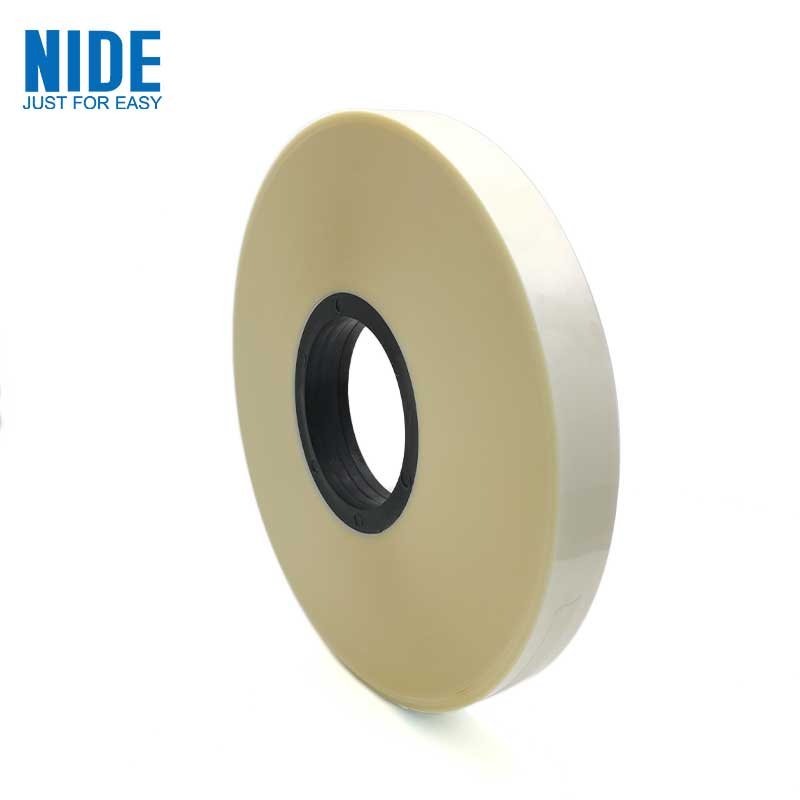

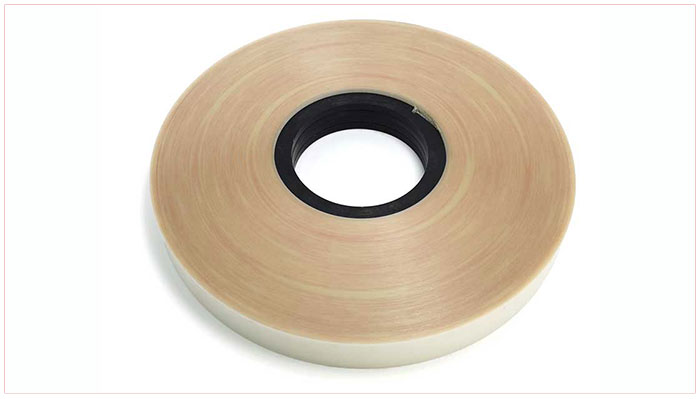

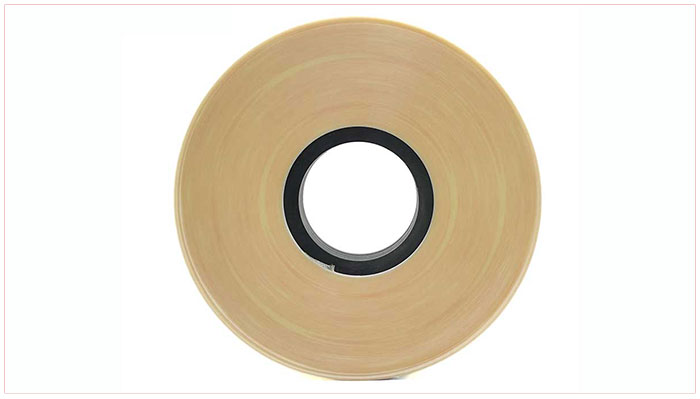

Wholesale H-class NM insulation paper material motor stator and rotor insulation paper

NDPJ-JYZ-NM

NM insulation paper combines fire-resistant fiber insulation paper with high temperature resistance of 220 ℃ and excellent dielectric strength and mechanical toughness of polyester film.

Details

Wholesale H-class NM insulation paper material motor stator and rotor insulation paper

Product specifications:

Product Name: NM insulation paper

Heat resistance level: H

Color: White

Width: 5-1000mm,

Thickness: 0.15-0.40mm

Temperature: 180 ℃

Introduction to NM insulation paper

NM insulation paper is a soft composite material made by coating polyester film with adhesive and bonding two layers of rolled polyamide aromatic fiber paper Nomex on both sides

Insulation level: H level, temperature resistance of 180 ℃.

This insulation paper combines fire-resistant fiber insulation paper with high temperature resistance of 220 ℃ and excellent dielectric strength and mechanical toughness of polyester film. It is widely used in electrical equipment, especially for insulation between slots, phases, turns, and pads of motors.

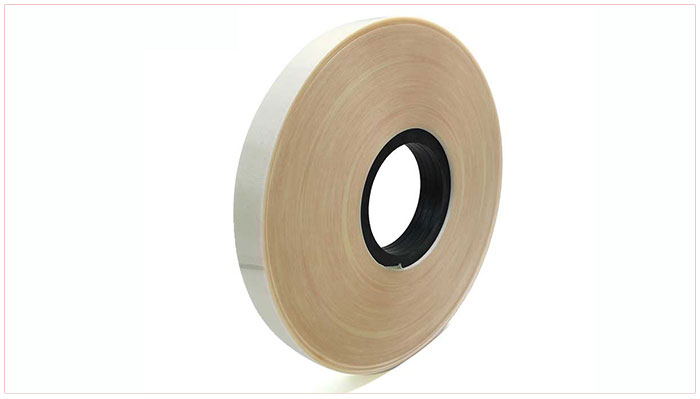

NM Insulation Paper Supplier

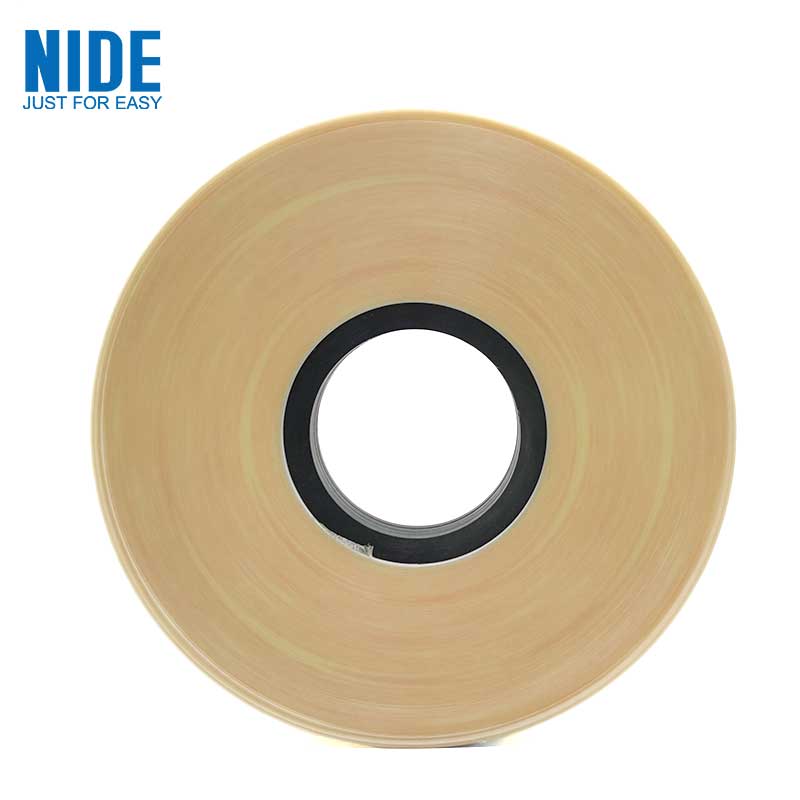

NM Insulation Paper Manufacturer

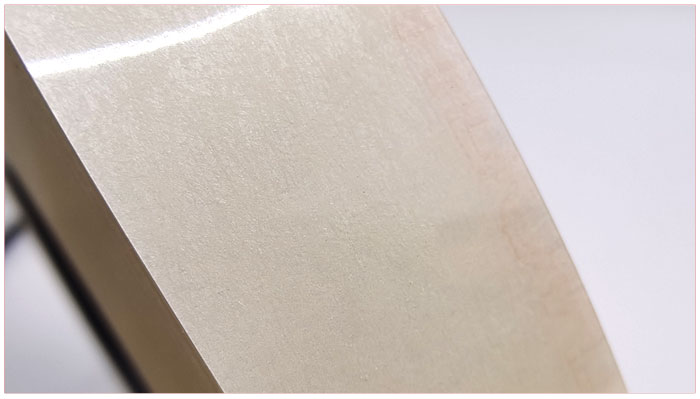

NM Insulation Paper Supplier

NM insulation paper manufacturer

Properties	Unit	Parameter
Insulation paper thickness	MM	0.09	0.11	0.15	0.19	0.20	0.23	0.25	0.30	0.36	0.41
Thickness deviation	MM	±0.01	±0.01	±0.02	±0.02	±0.02	±0.02	±0.03	±0.03	±0.04	±0.04
Grammage and deviation	GSM	93±9	113±11	183±18	218±22	253±25	288±29	308±31	393±39	463±46	533±53
Film thickness	MM	0.036	0.050	0.100	0.125	0.150	0.175	0.190	0.250	0.300	0.350
Breakdown voltage	KV	≥5	≥6	≥9	≥10	≥11	≥13	≥14	≥16	≥18	≥22
Tensile strength (MD)	N/CM	≥60	≥80	≥150	≥190	≥220	≥250	≥280	≥330	≥350	≥380
Tensile strength (TD)	N/CM	≥40	≥70	≥110	≥140	≥150	≥160	≥180	≥280	≥300	≥330
Tensile strength after folding (MD)	N/CM	≥40	≥70	≥110	≥140	≥165	≥190	≥240	≥280	≥300	≥330
Tensile strength after folding (TD)	N/CM	≥20	≥50	≥90	≥110	≥115	≥120	≥130	≥180	≥200	≥230

Information needed for insulation material inquiry

It will be better if customer could send us detailed drawing including below information.

a. Insulation material type: insulation paper, wedge, (including DMD,DM, polyester film, PMP,PET, NHN , NMN ,PM ,Red Vulcanized Fiber,)

b. Insulation material dimension: width, thickness, tolerance.

c. Insulation material thermal class: Class F, Class E, Class B, Class H , Class C

d. Insulation material applications

e. Required quantity: normally its weight

f. Other technical requirement.

We also supply different types of electrical insulation materials for stator or armatures, such as insulation paper and insulation wedge with different class degree. DMD Class B/F, DM Class B/F, Polyester film Class E, Red Vulcanized Fiber Class A, NH& NHN, etc

Besides, we can supply the full range of motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper material, shaft, magnet, fan, motor cover,etc.
