High Quality Class H NMN 6640 Insulation Paper Motor Electrical Insulation Paper Material

NDPJ-JYZ-NMN-6640

NMN 6640 is suitable for use as H-class insulation for ordinary and wet tropical electrical slot insulation, inter turn insulation, and pad insulation, as well as for electrical coil insulation.

Details

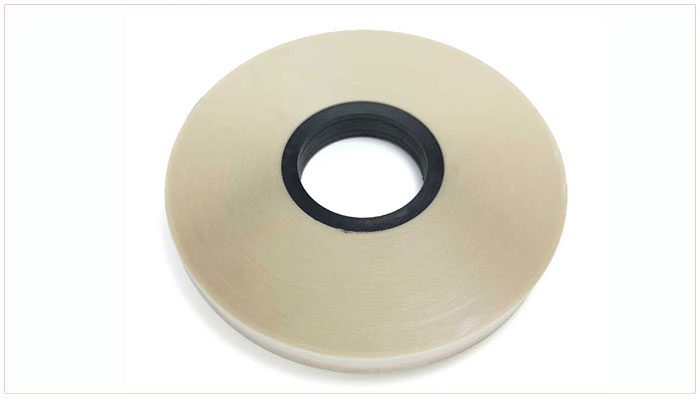

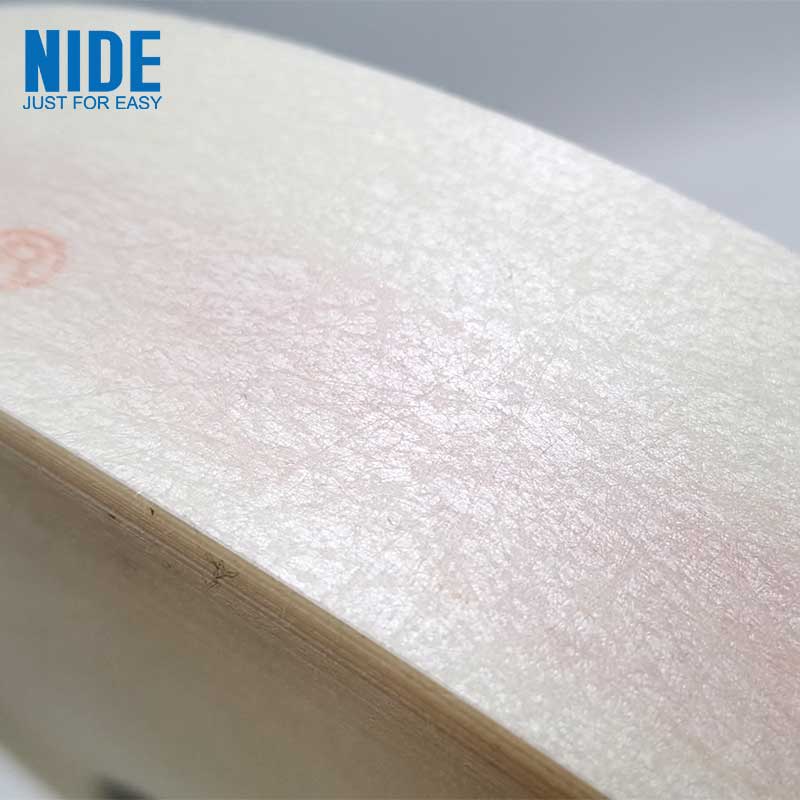

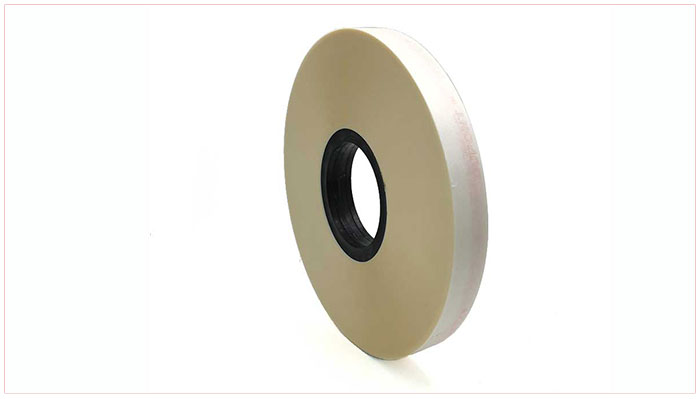

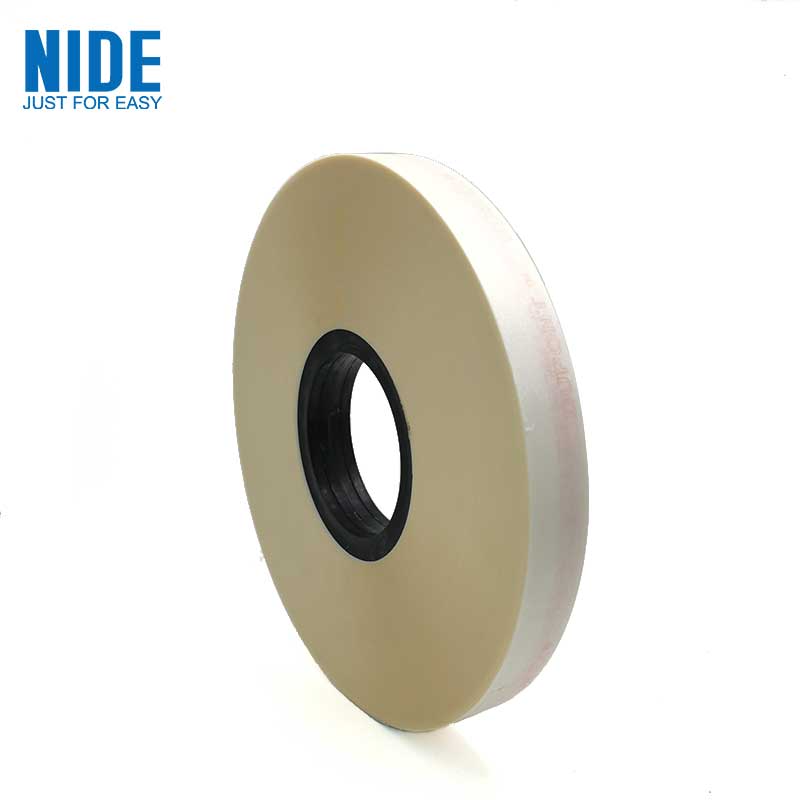

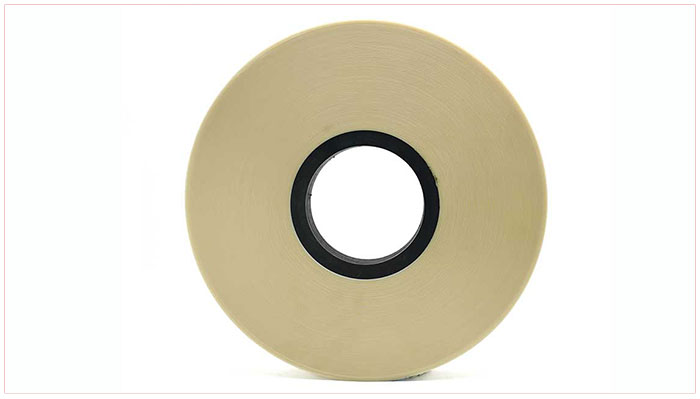

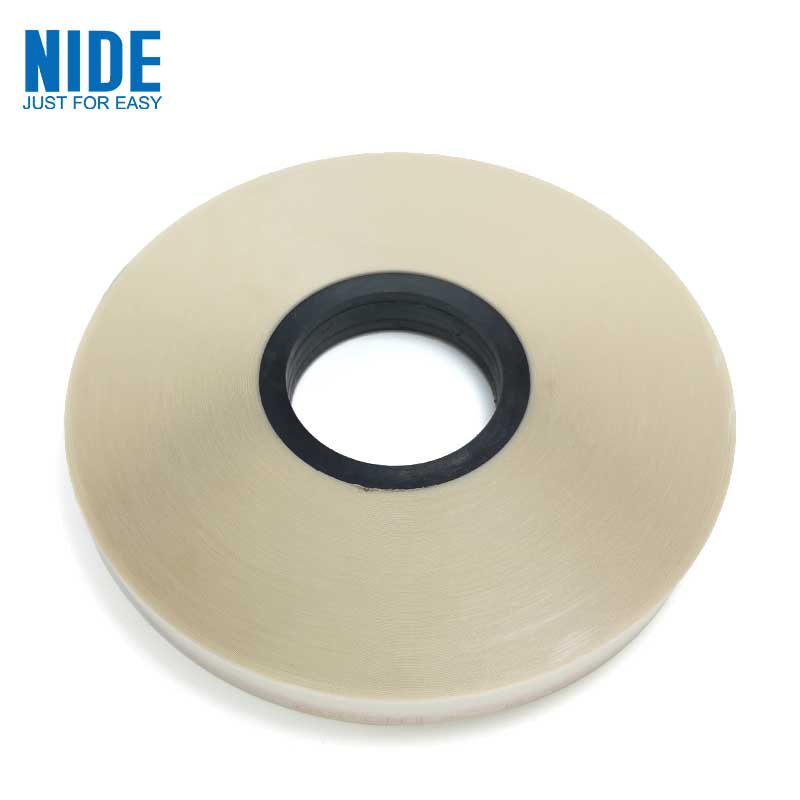

High Quality Class H NMN 6640 Insulation Paper Motor Electrical Insulation Paper Material

The NMN 6640 polyester film polyarylamide fiber paper soft composite material is composed of two layers of polyarylamide fiber paper and one layer of polyester film bonded together. The adhesive used is acid free and heat-resistant.

6640 NMN insulation paper combines the good flexibility of polyester film, excellent mechanical strength, dielectric properties, and the good tear resistance and paint absorption ability of NOMEX paper, making it a reliable heat-resistant F and H class motor insulation material. Has excellent mechanical and dielectric properties, as well as good heat resistance, tear resistance, and paint absorption ability.

Application field of NMN 6640 insulation paper

6640 NMN-H insulation columns are used for slot insulation, pad insulation, turn to turn insulation, slot wedge insulation, and interlayer insulation in F and H class low-voltage motors, electric tools, and electrical appliances.

Product specifications:

Product Name: 6640 NMN Insulation Paper

Heat resistance level: H

Color: White

Width: 5-1000mm,

Thickness: 0.13-0.51mm

Temperature: 180 ℃

Characteristics of NMN 6640 insulating paper

NMN 6640 is suitable for use as H-class insulation for ordinary and wet tropical electrical slot insulation, inter turn insulation, and pad insulation, as well as for electrical coil insulation.

H-grade is a soft composite material with a heat resistance grade of H (180 ℃), which has good dielectric properties, high heat resistance, and mechanical strength; Such as tensile strength, edge tear resistance, and good electrical strength. Its surface is smooth, and it can ensure no faults when using automatic offline machines to produce low-voltage motors.

Good flexibility and good adaptability to insulation between slots.

Low dielectric loss, suitable for various harsh working environments.

We can provide services such as master roll, slitting, slicing, and stamping forming.

NMN 6640 Insulation Paper Supplier

NMN 6640 Insulation Paper Manufacturer

NMN 6640 Insulation Paper Supplier

Properties	Unit	Parameter
Insulation paper thickness	MM	0.09	0.11	0.15	0.19	0.20	0.23	0.25	0.30	0.36	0.41
Thickness deviation	MM	±0.01	±0.01	±0.02	±0.02	±0.02	±0.02	±0.03	±0.03	±0.04	±0.04
Grammage and deviation	GSM	93±9	113±11	183±18	218±22	253±25	288±29	308±31	393±39	463±46	533±53
Film thickness	MM	0.036	0.050	0.100	0.125	0.150	0.175	0.190	0.250	0.300	0.350
Breakdown voltage	KV	≥5	≥6	≥9	≥10	≥11	≥13	≥14	≥16	≥18	≥22
Tensile strength (MD)	N/CM	≥60	≥80	≥150	≥190	≥220	≥250	≥280	≥330	≥350	≥380
Tensile strength (TD)	N/CM	≥40	≥70	≥110	≥140	≥150	≥160	≥180	≥280	≥300	≥330
Tensile strength after folding (MD)	N/CM	≥40	≥70	≥110	≥140	≥165	≥190	≥240	≥280	≥300	≥330
Tensile strength after folding (TD)	N/CM	≥20	≥50	≥90	≥110	≥115	≥120	≥130	≥180	≥200	≥230

Information needed for insulation material inquiry

It will be better if customer could send us detailed drawing including below information.

a. Insulation material type: insulation paper, wedge, (including DMD,DM, polyester film, PMP,PET, NHN , NMN ,PM ,Red Vulcanized Fiber,)

b. Insulation material dimension: width, thickness, tolerance.

c. Insulation material thermal class: Class F, Class E, Class B, Class H , Class C

d. Insulation material applications

e. Required quantity: normally its weight

f. Other technical requirement.

We also supply different types of electrical insulation materials for stator or armatures, such as insulation paper and insulation wedge with different class degree. DMD Class B/F, DM Class B/F, Polyester film Class E, Red Vulcanized Fiber Class A, NH& NHN, etc

Besides, we can supply the full range of motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper material, shaft, magnet, fan, motor cover,etc.
