Your current location：Home > Products > Insulation paper > White Steel Paper Red Steel Paper electronic insulation Wedge Materials

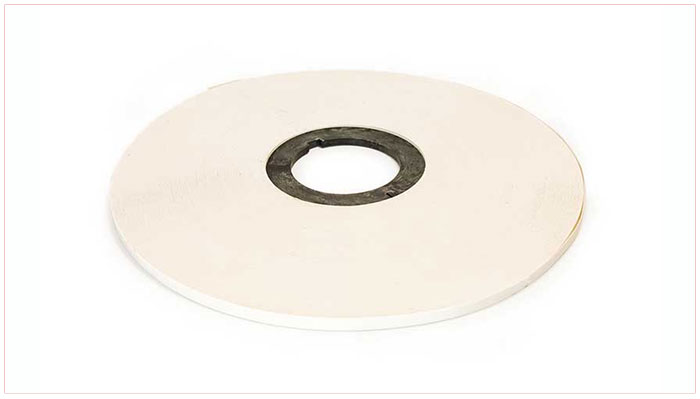

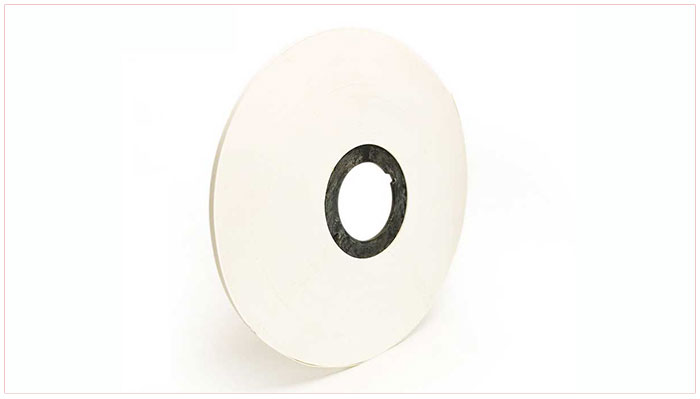

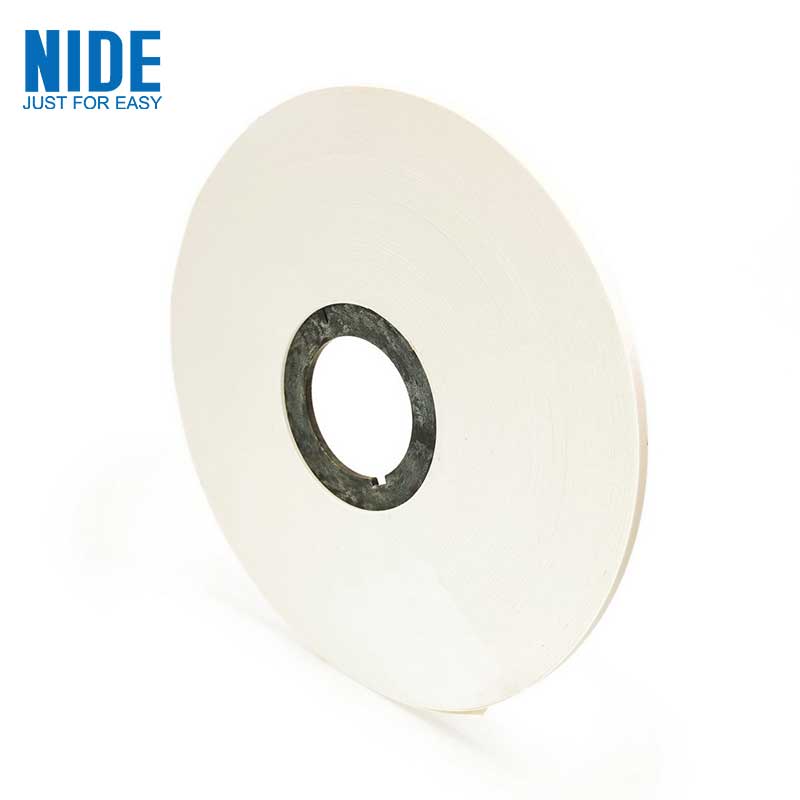

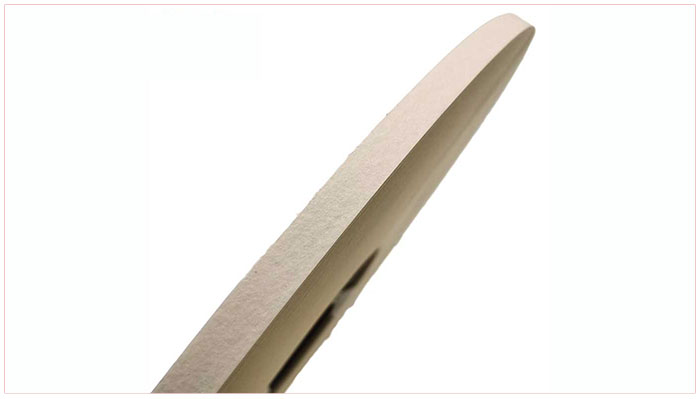

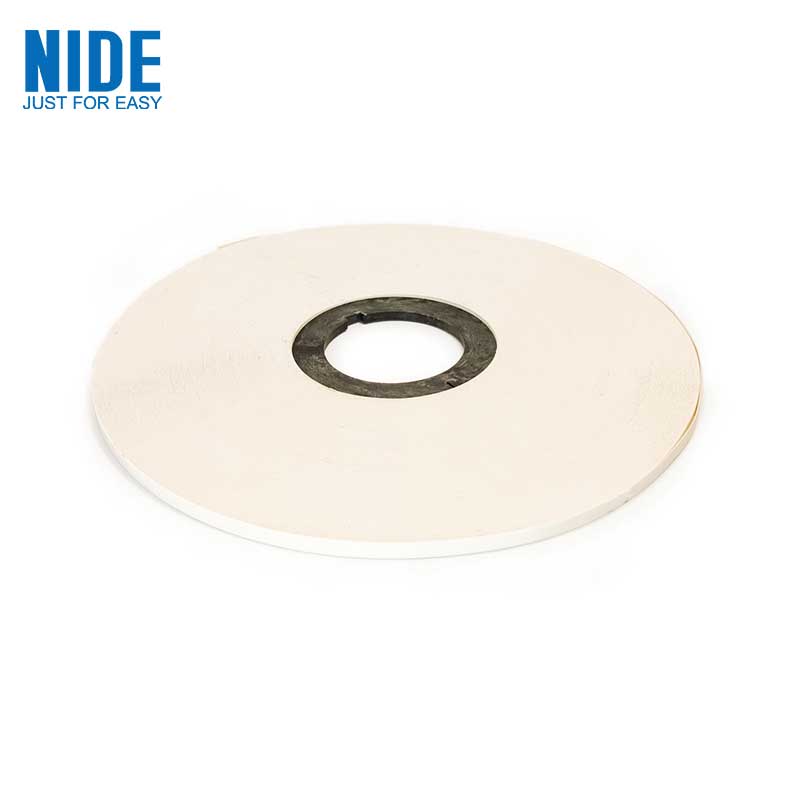

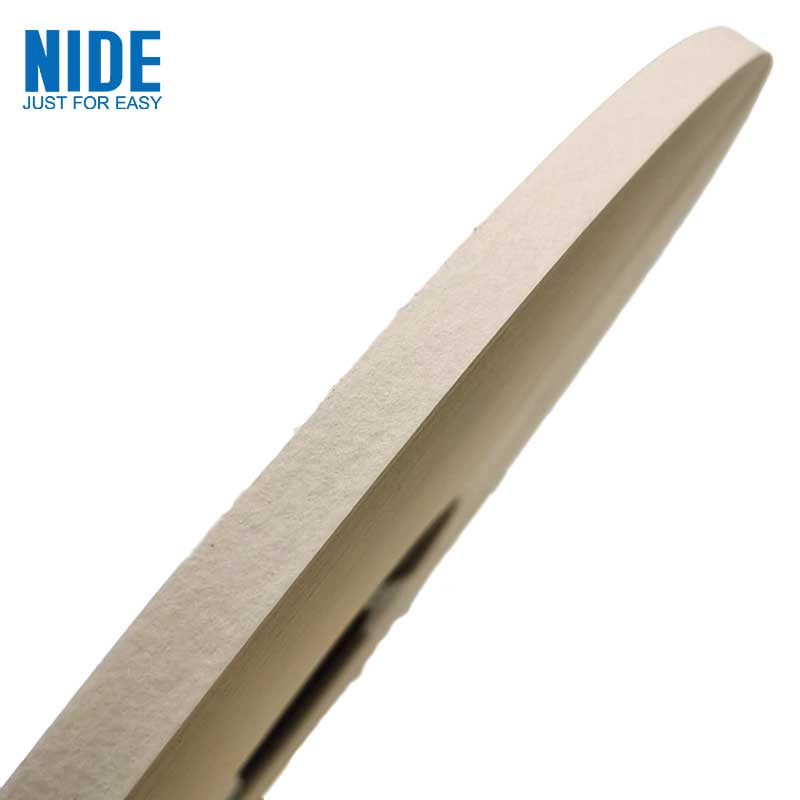

White Steel Paper Red Steel Paper electronic insulation Wedge Materials

NDPJ-JYZ-W1

Red steel paper belongs to electronic insulation materials, which are made of imported wood paddles and have high mechanical strength and electrical resistance. The surface is smooth and flat, with high toughness. It can be stamped with various insulation gaskets.

Details

White Steel Paper Red Steel Paper electronic insulation Wedge Materials

Product Information

Red steel paper is a type of processed paper with high hardness.

Paper is hard, and finished products include flat plates, rolls, tubes, etc.

It has excellent elasticity, wear resistance, corrosion resistance, heat resistance, mechanical strength, insulation performance, and mechanical processing and forming performance.

The base paper has high strength, low ash content, and good water absorption performance.

Suitable for various transformer, electrical, and electronics industries.

Product Parameters:

Product Name: White Steel Paper and Red Steel Paper Insulation Paper

Heat resistance level: F

Color: White/Red/Gray/Green

Width: 5-1000mm,

Thickness: 0.5/0.8mm

White Steel Paper Red Steel Paper Insulation Paper Supplier

White Steel Paper Red Steel Paper Insulation Paper Manufacturer

White Steel Paper Red Steel Paper Insulation Paper Supplier

Properties	Unit	Parameter
Insulation paper thickness	MM	0.09	0.11	0.15	0.19	0.20	0.23	0.25	0.30	0.36	0.41
Thickness deviation	MM	±0.01	±0.01	±0.02	±0.02	±0.02	±0.02	±0.03	±0.03	±0.04	±0.04
Grammage and deviation	GSM	93±9	113±11	183±18	218±22	253±25	288±29	308±31	393±39	463±46	533±53
Film thickness	MM	0.036	0.050	0.100	0.125	0.150	0.175	0.190	0.250	0.300	0.350
Breakdown voltage	KV	≥5	≥6	≥9	≥10	≥11	≥13	≥14	≥16	≥18	≥22
Tensile strength (MD)	N/CM	≥60	≥80	≥150	≥190	≥220	≥250	≥280	≥330	≥350	≥380
Tensile strength (TD)	N/CM	≥40	≥70	≥110	≥140	≥150	≥160	≥180	≥280	≥300	≥330
Tensile strength after folding (MD)	N/CM	≥40	≥70	≥110	≥140	≥165	≥190	≥240	≥280	≥300	≥330
Tensile strength after folding (TD)	N/CM	≥20	≥50	≥90	≥110	≥115	≥120	≥130	≥180	≥200	≥230

Information needed for insulation material inquiry

It will be better if customer could send us detailed drawing including below information.

a. Insulation material type: insulation paper, wedge, (including DMD,DM, polyester film, PMP,PET, NHN , NMN ,PM ,Red Vulcanized Fiber,)

b. Insulation material dimension: width, thickness, tolerance.

c. Insulation material thermal class: Class F, Class E, Class B, Class H , Class C

d. Insulation material applications

e. Required quantity: normally its weight

f. Other technical requirement.

We also supply different types of electrical insulation materials for stator or armatures, such as insulation paper and insulation wedge with different class degree. DMD Class B/F, DM Class B/F, Polyester film Class E, Red Vulcanized Fiber Class A, NH& NHN, etc

Besides, we can supply the full range of motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper material, shaft, magnet, fan, motor cover,etc.
