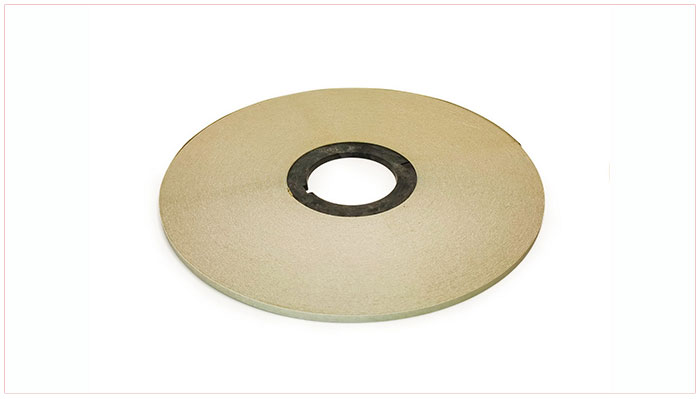

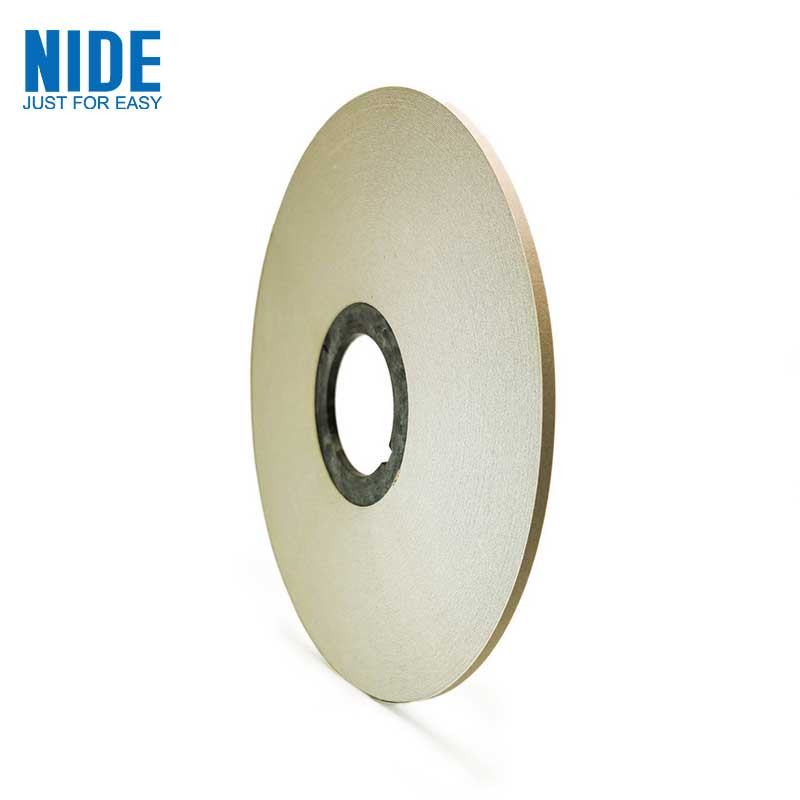

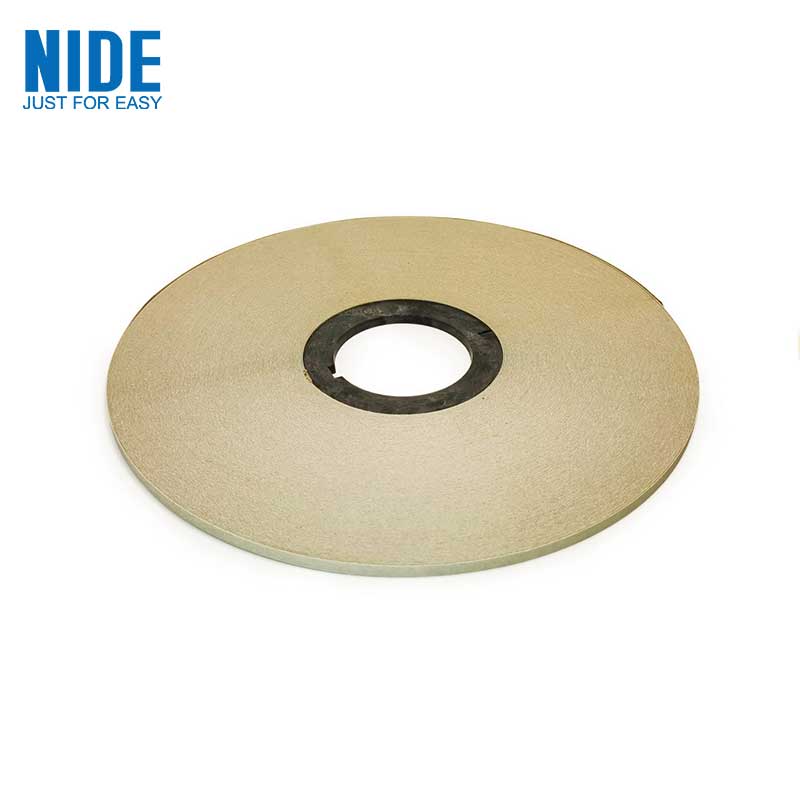

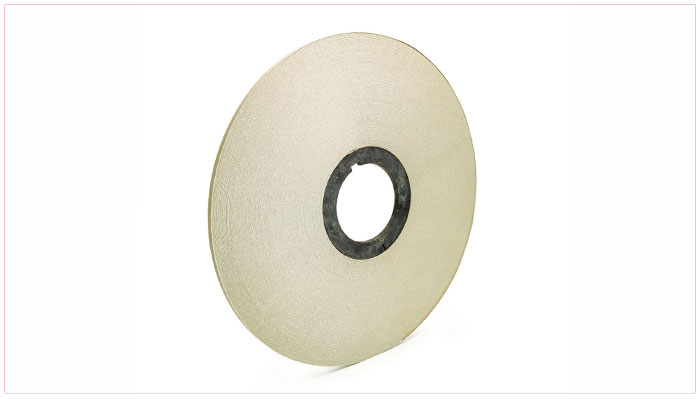

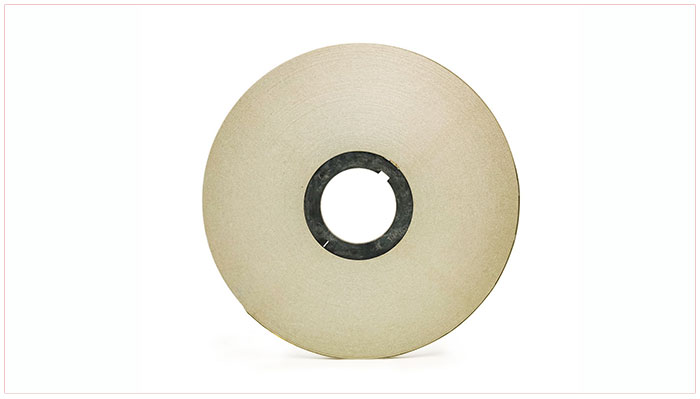

Customized corrosion resistant gray insulation slot wedge red steel paper insulation material

NDPJ-JYZ-W3

Red steel paper has excellent oil resistance, flame retardant arc extinguishing performance, and electrical insulation.

Details

Customized corrosion resistant gray insulation slot wedge red steel paper insulation material

Red steel paper insulation material

Red steel paper belongs to electronic insulation materials and is a processed paper with high hardness.

Paper is hard, and finished products include flat plates, rolls, tubes, etc.

It has excellent elasticity, wear resistance, corrosion resistance, heat resistance, mechanical strength, insulation performance, and mechanical processing and forming performance.

Red steel paper characteristics:

Paper is hard and light, with a strength close to aluminum and a specific gravity only half that of aluminum;

The mechanical processing performance is good, and cutting, drilling, rolling, stamping, etc. will not cause delamination and fracture phenomena,

It has excellent oil resistance, flame retardant arc extinguishing performance, and electrical insulation.

Has high strength, low ash content, and good water absorption performance.

Red steel paper is an electronic insulation material with high mechanical strength and electrical resistance.

The surface is smooth and flat, full of toughness, and can be stamped with various insulation gaskets.

Suitable for various industries such as transformers, electronics, aerospace, machinery, textiles, electrical appliances, railways, etc.

Product specifications:

Product Name: Red Steel Insulation Paper

Heat resistance level: F

Color: White/Red/Gray/Green

Width: 5-1000mm,

Thickness: 0.5/0.8mm

Temperature: 155 ℃

Gray Paper Red Steel Paper Insulation Paper Supplier

Gray Red Steel Paper Insulation Paper Manufacturer

Gray Red Steel Paper Insulation Paper Supplier

Properties	Unit	Parameter
Insulation paper thickness	MM	0.09	0.11	0.15	0.19	0.20	0.23	0.25	0.30	0.36	0.41
Thickness deviation	MM	±0.01	±0.01	±0.02	±0.02	±0.02	±0.02	±0.03	±0.03	±0.04	±0.04
Grammage and deviation	GSM	93±9	113±11	183±18	218±22	253±25	288±29	308±31	393±39	463±46	533±53
Film thickness	MM	0.036	0.050	0.100	0.125	0.150	0.175	0.190	0.250	0.300	0.350
Breakdown voltage	KV	≥5	≥6	≥9	≥10	≥11	≥13	≥14	≥16	≥18	≥22
Tensile strength (MD)	N/CM	≥60	≥80	≥150	≥190	≥220	≥250	≥280	≥330	≥350	≥380
Tensile strength (TD)	N/CM	≥40	≥70	≥110	≥140	≥150	≥160	≥180	≥280	≥300	≥330
Tensile strength after folding (MD)	N/CM	≥40	≥70	≥110	≥140	≥165	≥190	≥240	≥280	≥300	≥330
Tensile strength after folding (TD)	N/CM	≥20	≥50	≥90	≥110	≥115	≥120	≥130	≥180	≥200	≥230

Information needed for insulation material inquiry

It will be better if customer could send us detailed drawing including below information.

a. Insulation material type: insulation paper, wedge, (including DMD,DM, polyester film, PMP,PET, NHN , NMN ,PM ,Red Vulcanized Fiber,)

b. Insulation material dimension: width, thickness, tolerance.

c. Insulation material thermal class: Class F, Class E, Class B, Class H , Class C

d. Insulation material applications

e. Required quantity: normally its weight

f. Other technical requirement.

We also supply different types of electrical insulation materials for stator or armatures, such as insulation paper and insulation wedge with different class degree. DMD Class B/F, DM Class B/F, Polyester film Class E, Red Vulcanized Fiber Class A, NH& NHN, etc

Besides, we can supply the full range of motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper material, shaft, magnet, fan, motor cover,etc.
