ND-DZX8
This stator production line is mainly suitable for water pumps ,submersible pump motor and deep-well pump motors with long stack length.
Automatic Water Pump Motor Stator Production Line

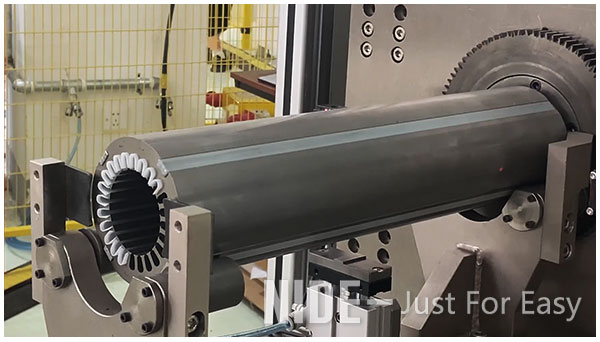

This stator production line is mainly suitable for ordinary water pumps and deep-well pump motors with long stack length. The whole line is integrated with loading structure, motorless line, paper inserting machine (including robotic arm and storage structure), winding and lacing combination machine, in-and-out station middle forming machine with robot, four-station wire lacing machine, in-and-out station final forming machine, transplanting mechanical arm, power belt line and other machines.
The cycle time of the whole line is within 22 sec/unit, which has lower labor cost and higher production efficiency. With simple operations, it is convenient to change tooling and reduces labor dependence.
Technical Parameter
Product name: | Automatic Water Pump Motor Stator Production Line |
Stator O.D.: | ≤φ135mm |
Stator I.D.: | Φ35~φ110mm |
Stator Stack Length: | 30~90mm |
Power Supply: | 380V/50Hz/60Hz 0.75Kw |
Wire Size: | 0.21-0.65mm |
Size: | (L)16000*(W)6000 |
Production Process
Insulation inserting→ Winding to primary and secondary phase→ Pre-forming→ Press and connect lead wires→ Sheath and temperature protection installing→ Pre-lacing→ Lacing→ Final forming→ Appearance inspection → Testing and packing
Technical Proposal
Cycle time for whole line: Within 22 sec/pc
(Example of Winding basic pattern:
Primary: 4 coils, 800 turns, wire size 4 copper.
Secondary: 2 coils, 650 turns, wire size 0.4 copper.)
Excluding manual working and material changing time, the whole line can product stator more than 1,500 pcs with 10 hours.
Machine Features
The robot will deal with the carrying work during process of automatic stator core loading, insulation inserting, winding and inserting. As for middle forming, lacing and final forming, the transfer will be handled by manipulator.
Manual operation is adopted for connecting lead wires, installing sheath and temperature protection, and pre-lacing.
Appearance inspection: Manually visual inspection.
Final test: Manually put the stator into the stator comprehensive testing equipment for testing.
Picture show
Automatic submersible pump motor stator line video
Nide provides turn-key service and technical consultance for motor production technology, it covers varies type motors. We could accomplish tailored and innovative solutions to meet all quality and production requirements, aim at making motor production easier.
Our fully automatic motor assemble line is suitable for varies type induction motor assembly, BLDC motor assembly, universal electric motor and DC motor assembly, It could automatically assemble the rotor, armature, stator and motor components together . It is used for washing machine motor, fan motor, BLDC motor, DD motor, electric bicycles motor , electric vehicle motor , hub motor, DD BLDC washing machine motor , compressor motor, vacuum cleaner motor, power tool motor, wiper motor, mixer motor, RO pump motor, NEMA motor, DC motor, etc. It features fast, efficient, accurate winding, easy set-up, user-friendly programming and tooling flexibility.
