Fan Motor Commutator Motorcycle Commutator Blower Collector Spare Part



Commutator parameters



Product name:	Micro DC motor part Fan Motor Commutator
OD	23.2
ID	8
Total Height	15.7
Bar No.	24





Competitive advantages:

1. We have a full experience of export.
2. We directly supply our products to many countries.
3. Our commutator is widely used in many industrial, such as power tools, car industry, window lifts, electric drill etc.



Product advantages:

High dielectric strength between chips,

no breakdown or flicker occurs;

insulation resistance ≥ 100MΩ,

AC frequency at 50HZ / 60HZ,

excellent electrical and mechanical properties,

stable structure,

high dimensional accuracy,

small uniform angular error of commutator,

high product hardness ,

Good abrasion resistance,

high tensile strength,

stable thermal performance and long service life.

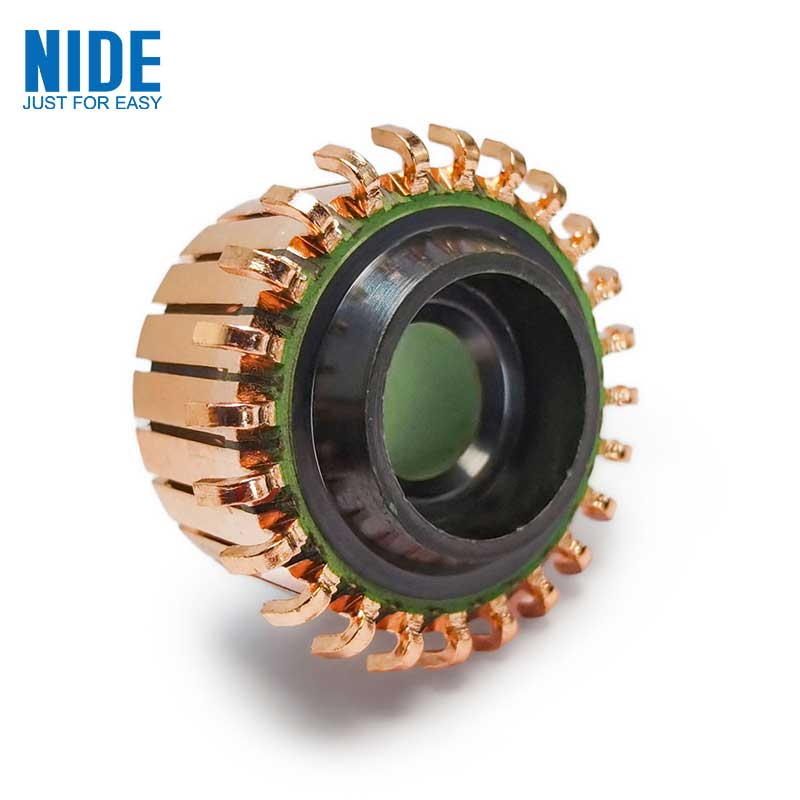

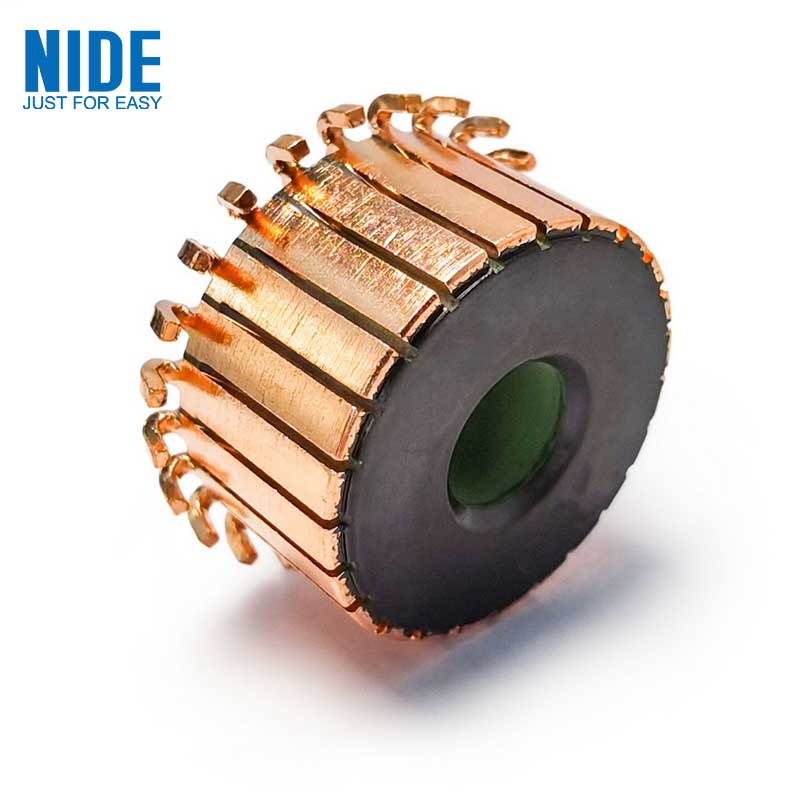

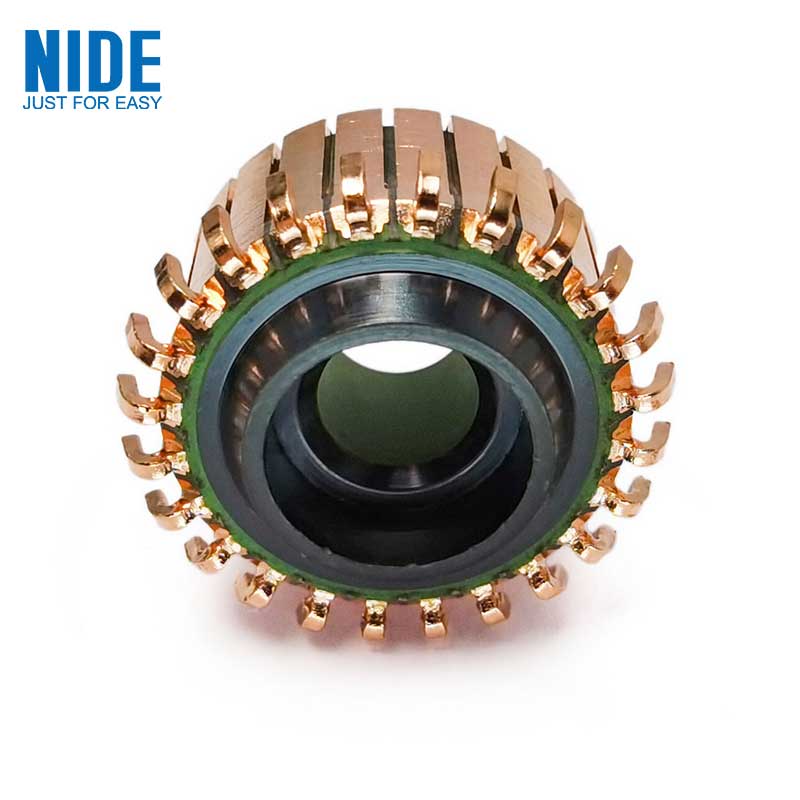

Picture show:

Information needed for commutator inquiry:
It will be better if customer could send us detailed drawing including below information.
1. Commutator dimension: OD, ID, total height, and copper height, bar number.
2. Commutator type: hook type, raiser type or planner
3. Copper material: Agcu/ Cu
4. Commutator applications
5. Required quantity
6. Copper bush needed or not

7. Other technical requirement.

Nide produces more than 1200 different types of motor commutator, including hook type, riser type, shell type, planar type, ranging from OD 4mm to OD 150mm and we are professional in manufacturing commutator for many years. The commutators are widely applied to automotive industry, power tools, household appliances, and other motors.If our existing models are not suitable for you, we could also develop new tooling according to your drawing and samples.

Besides, we can supply the full range of motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper material, shaft, magnet, fan, motor cover,etc.
