6641 DMD F Class Insulation Paper Material For Transformer Motor

 Model:NDPJ-JYZ-31

The 6641 DMD F Class Insulation Paper is suitabel for automotive generators, series motors, gearbox motors, three-phase asynchronous motors, stepping servo motors, household appliances motors, power tool motors, slot insulation, slot wedge insulation, phase insulation, insulating gaskets .



Categoryes:  Insulation paper

CONTACT US
Details

Transformer 6641 DMD F Class Insulation Paper 0.25/0.3mm


6641 DMD F Class Insulation paper is a polyester film polyester fiber non-woven soft composite material , made of polyester fiber non-woven fabric and polyester film. Suitable for transformer, automotive generators, series motors, gearbox motors, three-phase asynchronous motors, stepping servo motors, household appliances motors,


NIDE can process various slot insulating materials according to customer requirements, and provide different grades, different sizes, and different shapes of shaped slot insulating paper, slot wedges, and insulating gaskets. It is suitable for the stator slot insulation of all kinds of brushless, stepping and servo motors, and can meet the demand for slot insulation by manual embedding.

The 6641 DMD three-layer composite material bonded by F grade resin has a temperature resistance rating of 155°C. It is mainly used for slot insulation, turn-to-turn insulation, gasket insulation, transformer insulation of Y2 series motors or other low-voltage motors. It can also be used for F-class electrical coil insulation.


6641 DMD F Class Insulation Paper Parameter

Product name 6641 DMD F Class motor insulation paper
Grade:  F Class
Color:  blue/green/red
Thickness:  0.25/0.3mm or 0.1~0.5 (mm)
Width:  1030 (mm)
Size:  1000 (mm)
Thickness:  0.45 (mm)
Features:  Good insulation performance, high temperature and high pressure resistance
Heat resistance:  130-180 degrees
Custom:  Yes
Packing description:  carton





6641 DMD F Class Insulation Paper Application

    1. Motor product industry: automotive generators, series motors, gearbox motors, three-phase asynchronous motors, stepping servo motors, household appliances motors, power tool motors, slot insulation, slot wedge insulation, phase insulation, insulating gaskets .

    2. Electronic and electrical industry: ballasts, LED power supplies, transformers, filters, transformers, inter-turn gasket insulation.

    3. Wire and cable industry: cable wrapping insulation tape.

    The company has slitting, stamping forming, and testing equipment to ensure the quality of various insulating forming materials.

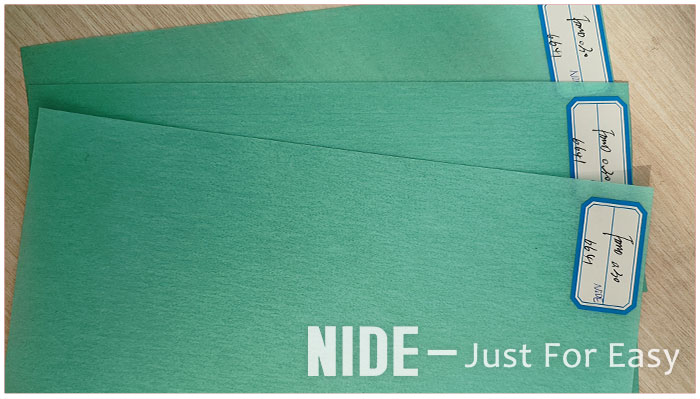

6641 DMD F Class Insulation Paper Picture



Information needed for insulation material inquiry

It will be better if customer could send us detailed drawing including below information.

1. Insulation material type: insulation paper, wedge, (including DMD,DM, polyester film, PMP,PET,Red Vulcanized Fiber)

2. Insulation material dimension: width, thickness, tolerance.

3. Insulation material thermal class: Class F, Class E, Class B, Class H

4. Insulation material applications

5. Required quantity: normally its weight

6. Other technical requirement.



We also supply different types of electrical insulation materials for stator or armatures, such as insulation paper and insulation wedge with different class degree. DMD Class B/F, DM Class B/F, Polyester film Class E, Red Vulcanized Fiber Class A, NH& NHN, etc

electrical insulation material motor winding insulation paper wedge



Besides, we can supply the full range of motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper material, shaft, magnet, fan, motor cover,etc.

motor part, motor components, motor accessories
