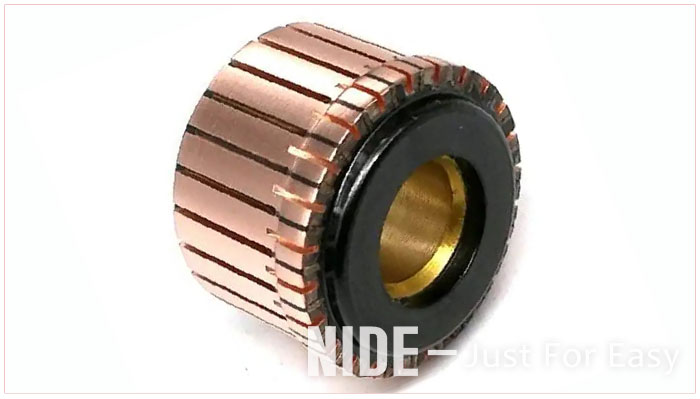

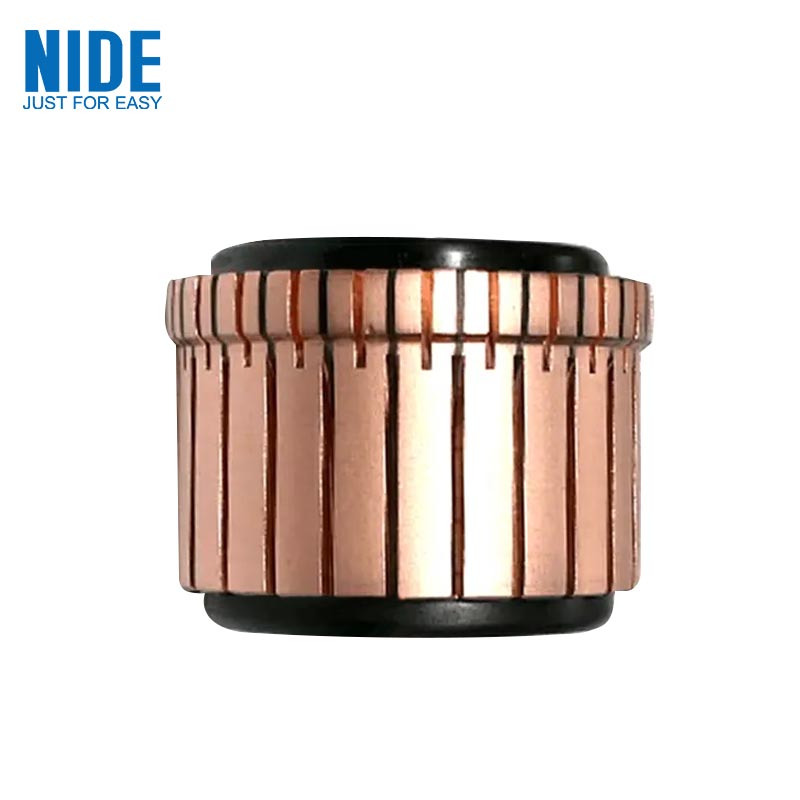

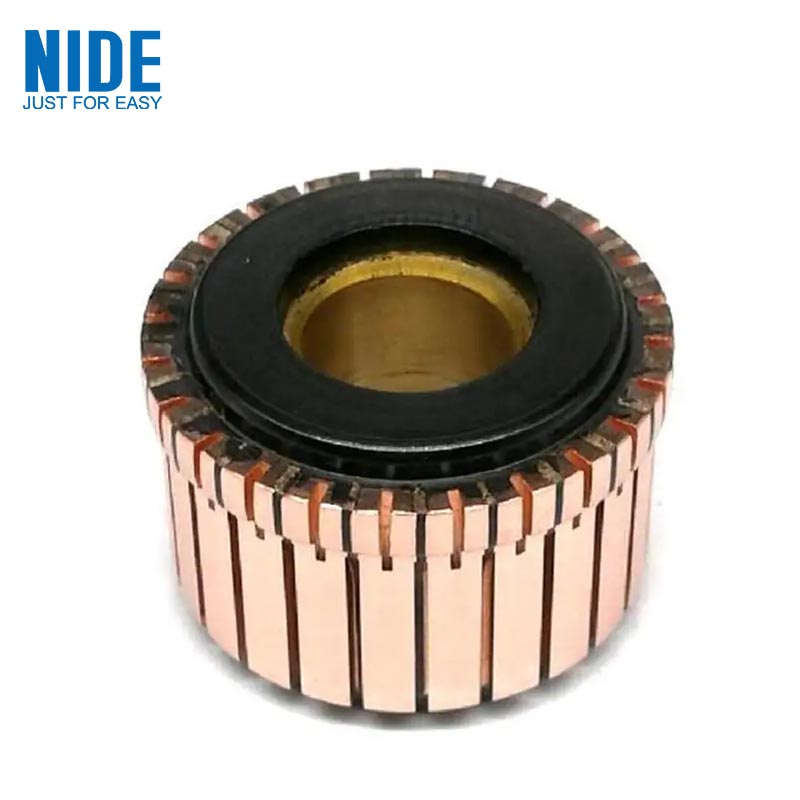

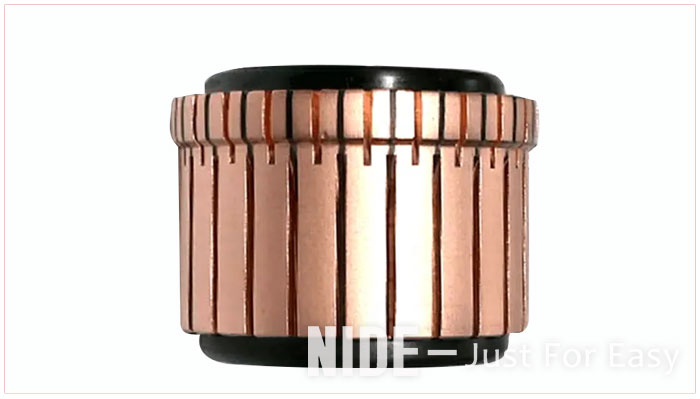

Custom automotive fan motor slot commutator

 Model:NDPJ-HXQ-1046



Categoryes: Commutator

CONTACT US
Details
In automotive fan motors, the slot commutator is a relatively common commutator type.
The manufacture of slot-type commutators for automotive fan motors requires high-precision processing and assembly technology. In addition, the quality and stability of materials must be ensured during the manufacturing process to ensure the reliability and durability of the commutator.



Technical requirement of commutator:

1. Voltage test: bar to bar 500V, bar to bore 1500V, without breakdown and flashing.

2. Spin test: do spin test for the commutator under 140 centigrade, the speed is 5000RPM, the test continues for 3min. After testing, the deviation of outer diameter is less than 0.015, the deviation between bar and bar is less than 0.005.

3. Insulation resistance: 500V, more than 50MΩ

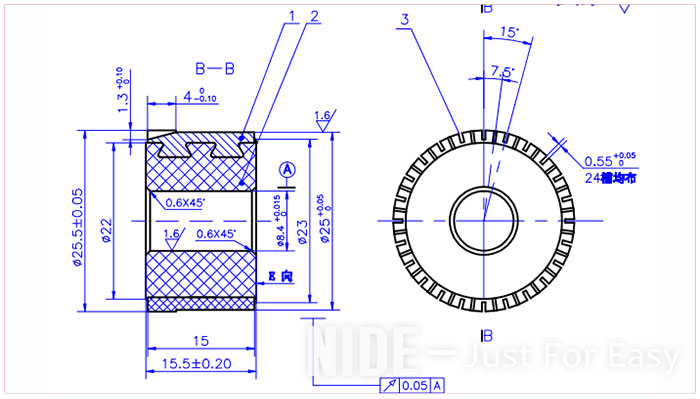

 automotive fan motor commutator

Technical parameter of commutator:

Materials

0.03% or   0.08% sliver copper or customized

Dimension

Customized

Commutator   type

Hook   type/Raiser type

Application

apply to   automotive industry, power tools, household appliances, and other motors

Package

Suitable for land and sea transportation

Production   capacity

1000000pcs/month



automotive motor commutator



Nide produces more than 1200 different types of motor commutator, including hook type, riser type, shell type, planar type, ranging from OD 4mm to OD 150mm and we are professional in manufacturing commutator for many years. The commutators are widely applied to automotive industry, power tools, household appliances, and other motors.If our existing models are not suitable for you, we could also develop new tooling according to your drawing and samples.





Besides, we can supply the full range of motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper material, shaft, magnet, fan, motor cover,etc.

motor part, motor components, motor accessories
