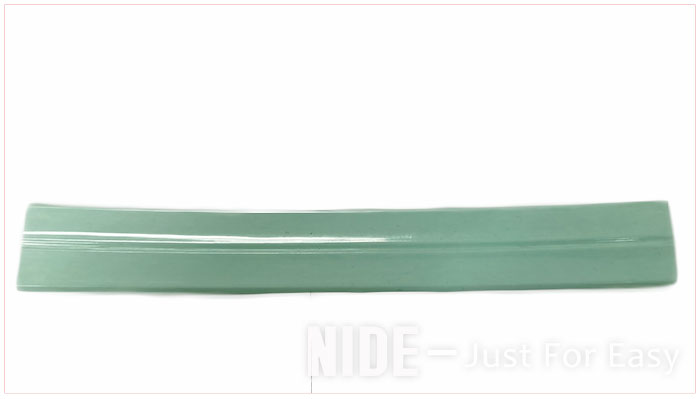

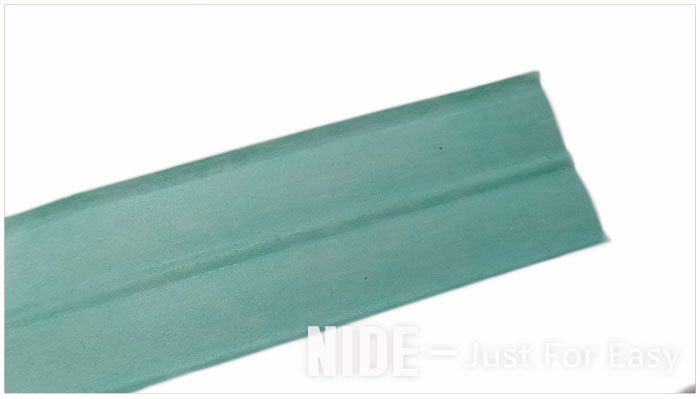

Custom Wheel Hub Motor Electrical Insulation Paper

Electrical insulation paper material is a crucial component of hub motors, as it helps to protect the motor winding from damage and prevents electrical shorts.

In addition to protecting the motor winding from damage, insulation paper also helps to improve the efficiency of the motor. By reducing the likelihood of electrical shorts and other forms of damage, the insulation paper can help to ensure that the motor operates at its optimal level, providing reliable and efficient performance.

The electrical insulation papers are suitable for electric vechicle ,new energy car, electric bicycles, scooters, and other vehicles.

Information needed for insulation material inquiry

It will be better if customer could send us detailed drawing including below information.

1. Insulation material type: insulation paper, wedge, (including DMD,DM, polyester film, PMP,PET,Red Vulcanized Fiber)

2. Insulation material dimension: width, thickness, tolerance.

3. Insulation material thermal class: Class F, Class E, Class B, Class H

4. Insulation material applications

5. Required quantity: normally its weight

6. Other technical requirement.

We also supply different types of electrical insulation materials for stator or armatures, such as insulation paper and insulation wedge with different class degree. DMD Class B/F, DM Class B/F, Polyester film Class E, Red Vulcanized Fiber Class A, NH& NHN, etc

Besides, we can supply the full range of motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper material, shaft, magnet, fan, motor cover,etc.
