Your current location:Home > Products > Ball bearing > High Precision Miniature Bearings Flanged Ball Bearings
High Precision Miniature Bearings Flanged Ball Bearings

 NDPJ-ZC-78

We supply a range of flange ball bearing.Flange bearings are a series of bearings with a flange on the outer wheel, which makes axial positioning simple; no bearing housing is required, and it becomes more economical.

Categoryes:  Ball bearing

CONTACT US
Details

High Precision Miniature Bearings Flanged Ball Bearings



Miniature flange bearings are suitable for all kinds of industrial equipment, small rotary motors, office equipment, micro motor soft drives, pressure rotors, dental drills, hard disk motors, stepper motors, video recorder drums, toy models, fans, pulleys, rollers , transmission equipment, entertainment equipment, robots, medical equipment, office equipment, testing equipment, deceleration, transmission, motor optics, imaging equipment, card readers, electromechanical, precision machinery, electric tools and toys, etc.



Flange bearings are a series of bearings with a flange on the outer wheel, which makes axial positioning simple; no bearing housing is required, and it becomes more economical. In order to obtain low friction torque, high rigidity, and good rotation accuracy of the bearing, steel balls with small outer diameters are used. The use of the hollow shaft ensures light weight and space for wiring.



In the miniature bearings with ultra-small aperture, it can be divided into ZZ steel plate bearing dust cover series, RS rubber bearing sealing ring series, Teflon bearing sealing ring series, flange series, stainless steel series, ceramic ball series, etc. Miniature ball bearings have a wide range of uses. It is suitable for products with high-speed rotation, low friction torque, low vibration and low noise requirements.

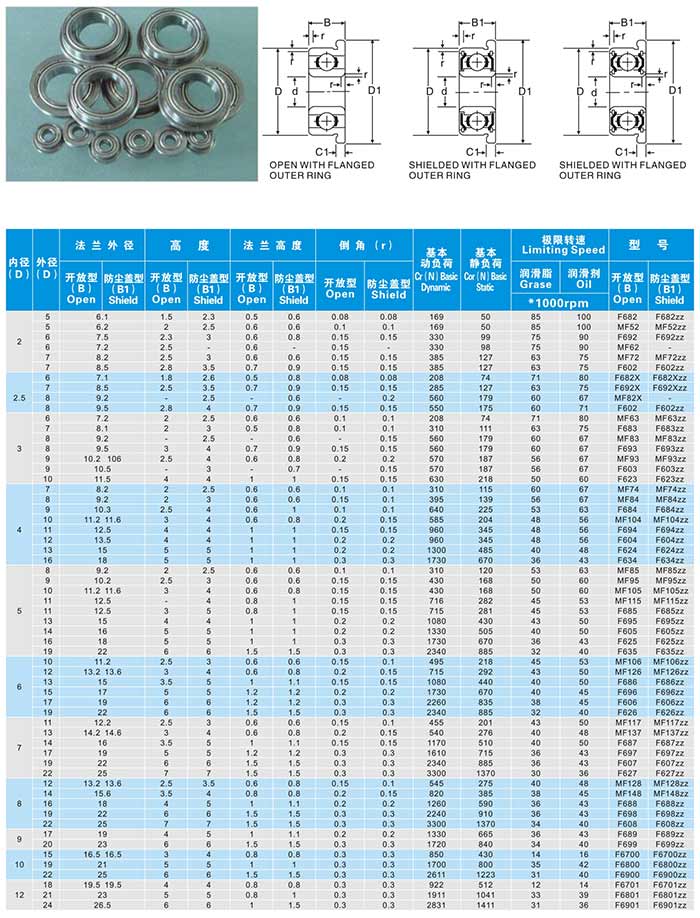

Miniature flange bearings parameter

Product name: Miniature Flange bearing Deep Groove Ball Bearing
Feature: High Speed Low Noise
Size: Custom
Bearing Material:  Bearing SteelGcr15
Cage material:  Stamped Steel Plate
Lubrication:  Dry/ Grease/Oil
Type:  BALL
Structure: Deep Groove
Precision Rating:  P0 P6 P5
Seals Type:  ZZ 2RS OPEN
Number of Row:  Single row

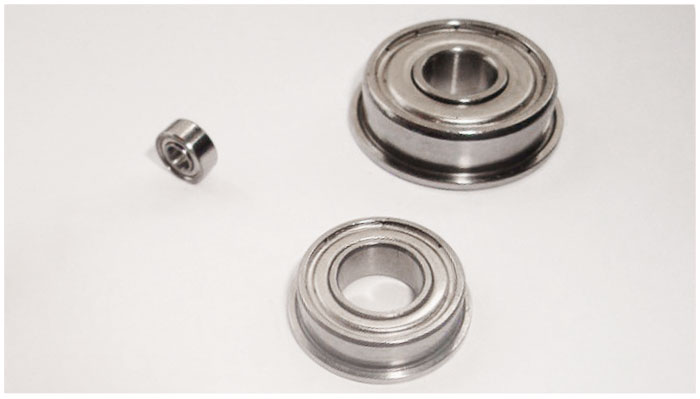

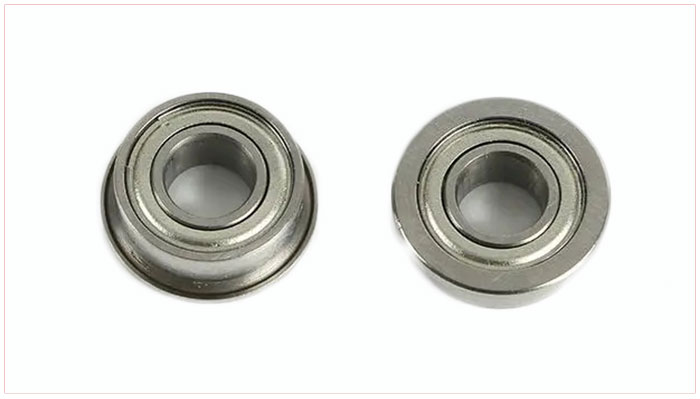

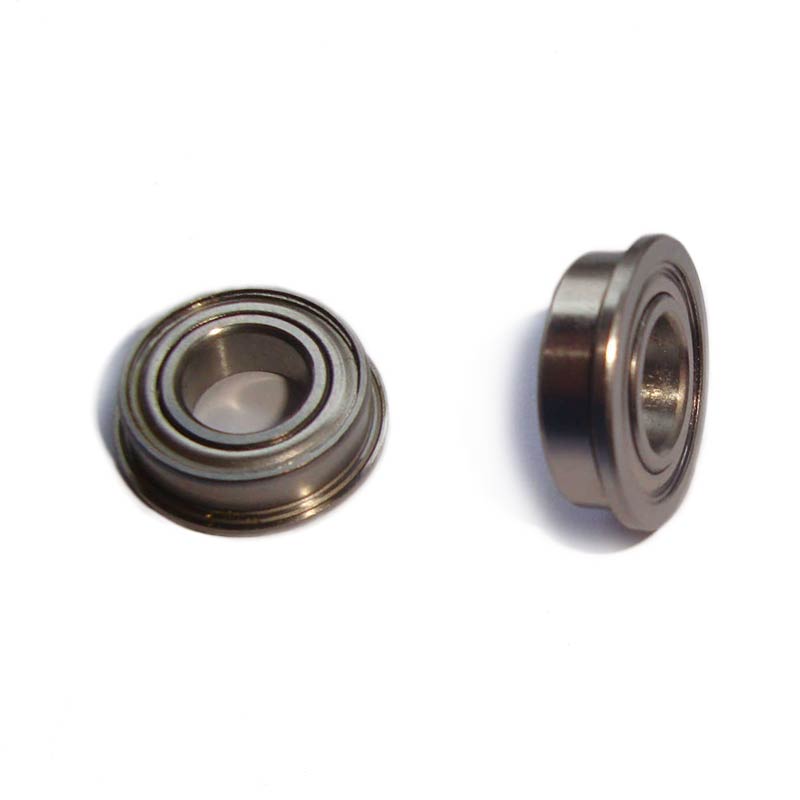

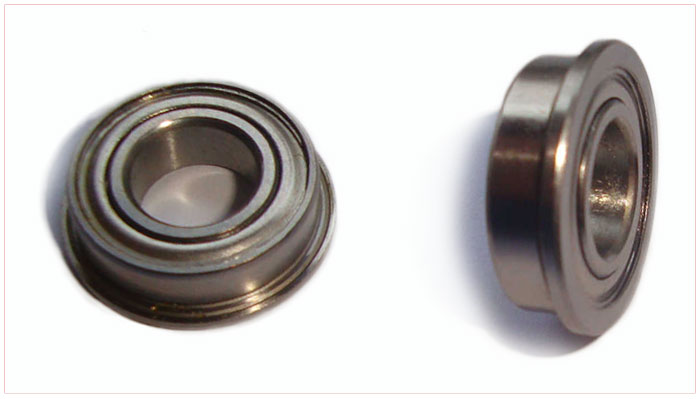

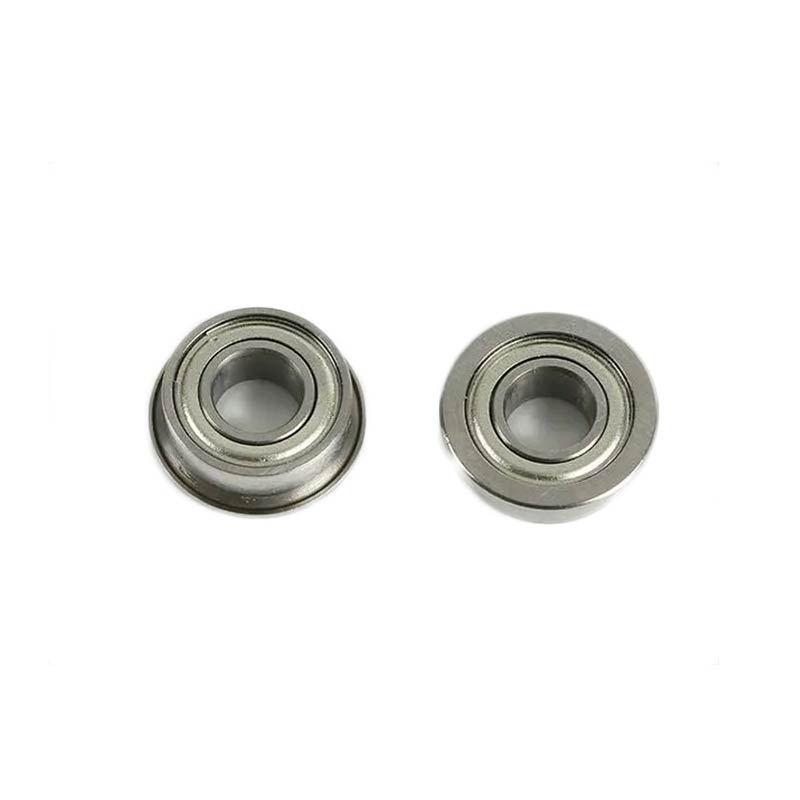

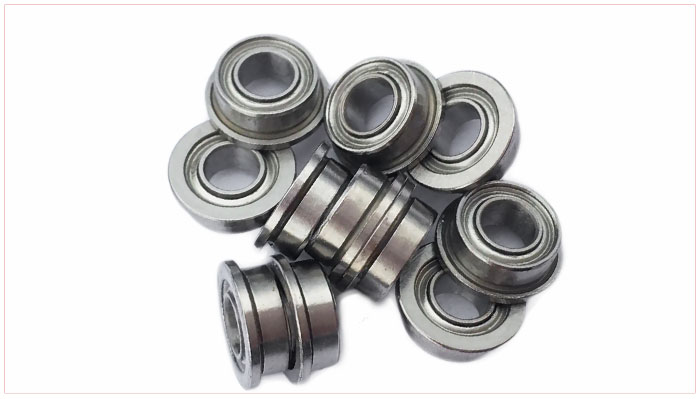

Miniature flange bearings picture

Miniature flange bearings

Miniature flange bearings supplier

custom Miniature flange bearings

Wholesale Miniature flange bearings

China Miniature flange bearings

About Motor component and  accessories

NIDE can supply the full range of electric motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
