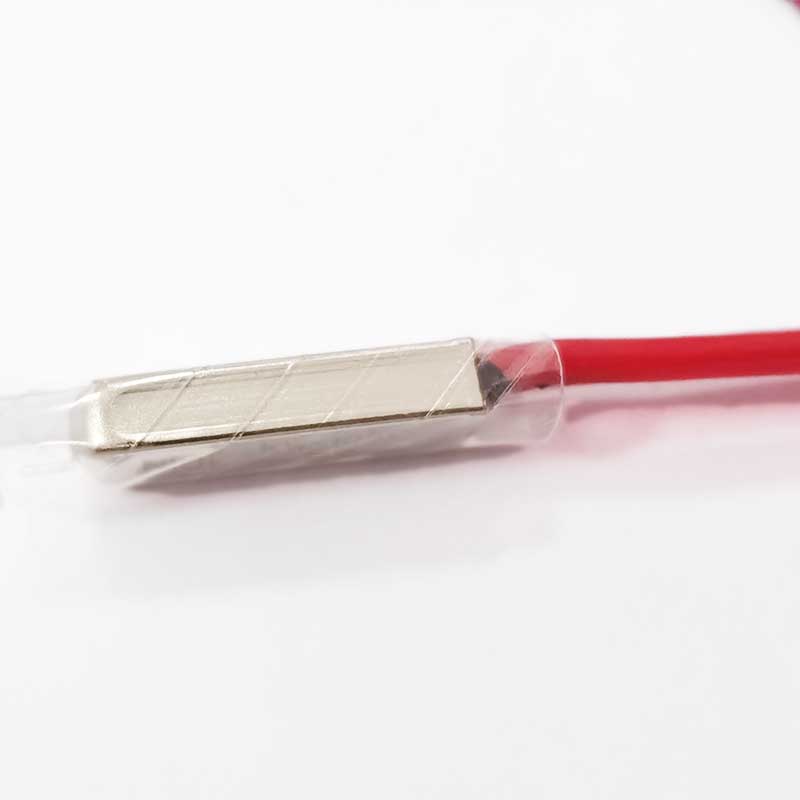

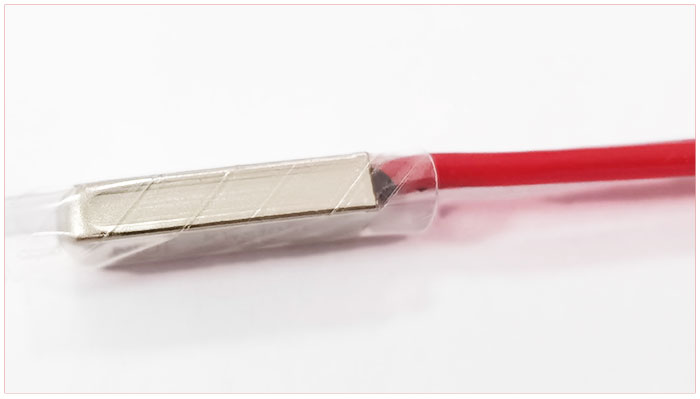

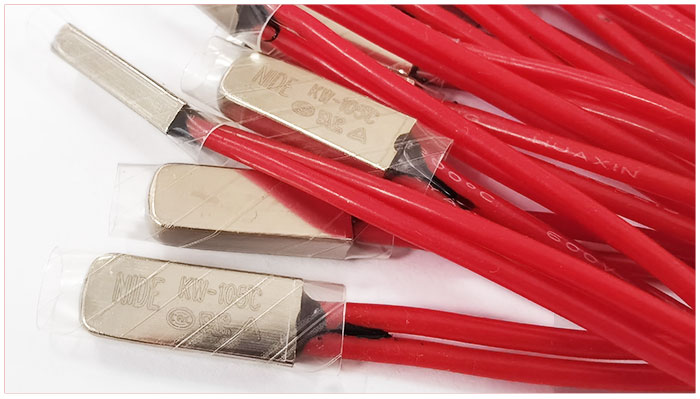

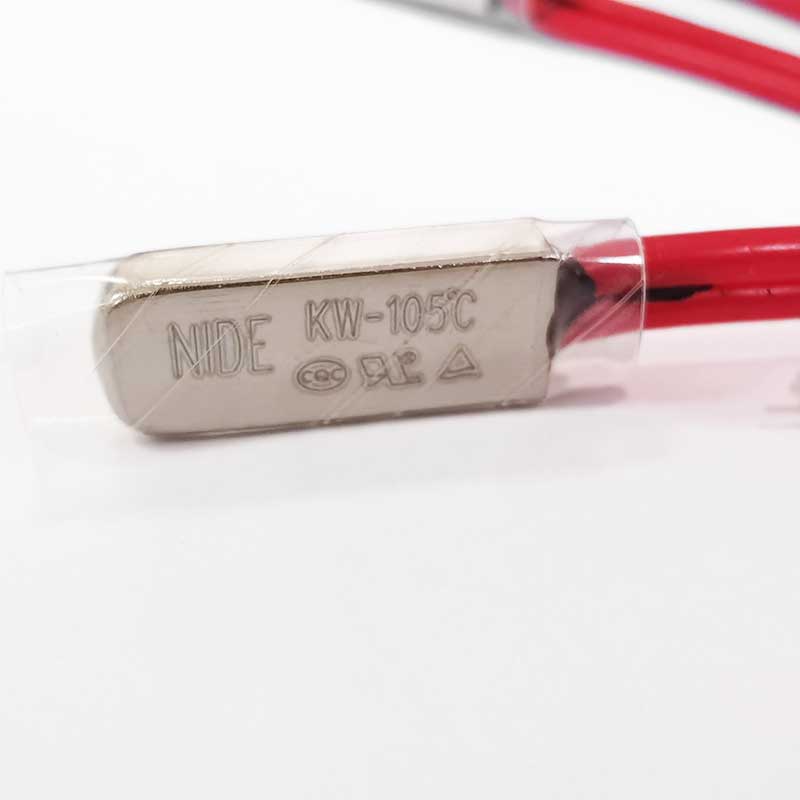

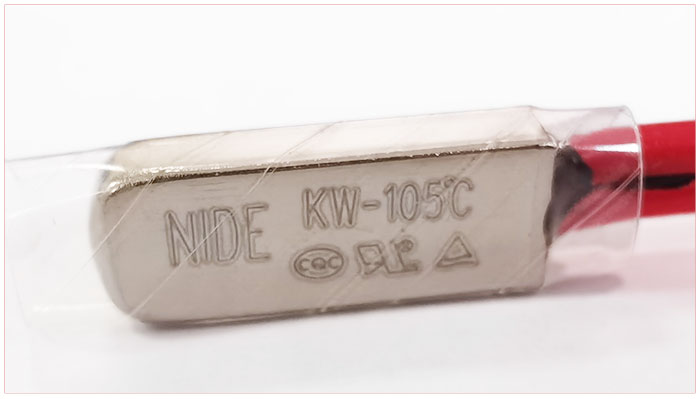

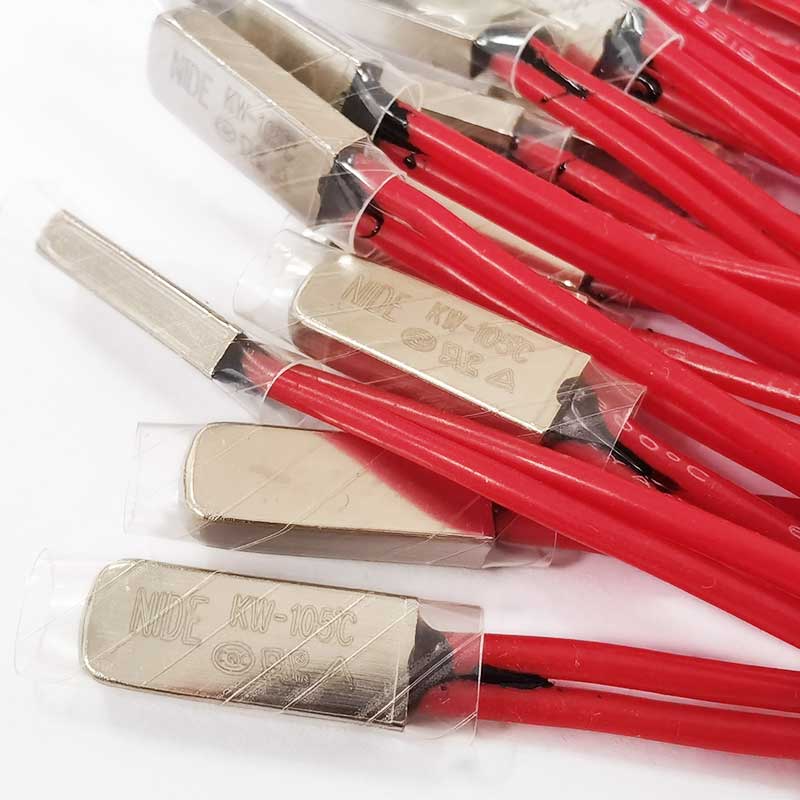

Electric Motor Thermal Protection with IP54/IP55 ±5℃ Temperature Tolerance

Product Description:

Electric Motor Thermal Protectors are designed to be used in a wide range of applications, from domestic to industrial. Our product range includes Frequency ranging from 50HZ-60HZ, Speed from 3000RPM-5000RPM, Temperature tolerance of ±3℃,±5℃, Voltage from 110V-220V, and Motor Type including AC and DC. As professional thermal protectors manufacturers, we guarantee the quality and safety of our products, provide electric motor thermal protection.

Features:

Product Name: Thermal Protectors with IP54/IP55

Speed: 3000RPM-5000RPM

Voltage: 110V-220V

Color: Red/Black

Lead wire: Optional

Warranty: 1 Year

Features:

Motor Thermal Protection

Thermal Protectors

Motor Thermal Protection Device

Applications:

NIDE electric motor thermal protectors are reliable and suitable for various applications. Supply Ability of 100000/month, Insulation Grade of F/H, Voltage of 110V-220V, Protection Level of IP54/IP55, Motor Type of AC/DC, Cooling Method of Air/Water, these spare parts provide excellent thermal protection for electric motors. They have superior performance in terms of heat dissipation, thermal protection and durability. In addition, these parts are able to resist high temperatures, and thus can be used in a wide range of industries. These thermal protector parts can be used in applications such as automotive, industrial, home appliances, and many others. With these thermal protectors, you can be sure of reliable and efficient performance of your electric motor.

Technical Parameters:

Technical Parameter Description

Protection Level IP54/IP55

Motor Type AC/DC

Temperature tolerance ±3℃,±5℃

Size Customized

Speed 3000RPM-5000RPM

Frequency 50HZ-60HZ

Voltage 110V-220V

Color Red/Black

Package Carton/Wooden Box

Warranty 1 Year

Thermal Protection Switch Electric Motor Thermal Protection Switch

We suppliy different types of thermal protectors available, including bimetallic, thermistor, and thermal fuse protectors. Bimetallic protectors consist of two different metals with different coefficients of thermal expansion, which bend at different rates when heated. Thermistor protectors use a thermistor, which is a resistor that changes its resistance with temperature. Thermal fuse protectors use a fuse element that melts at a specific temperature, opening the electrical circuit.

We can provide these units with a variety of leads, terminations and insulating sleeves to meet specific requirements. If you want more, please contact us.

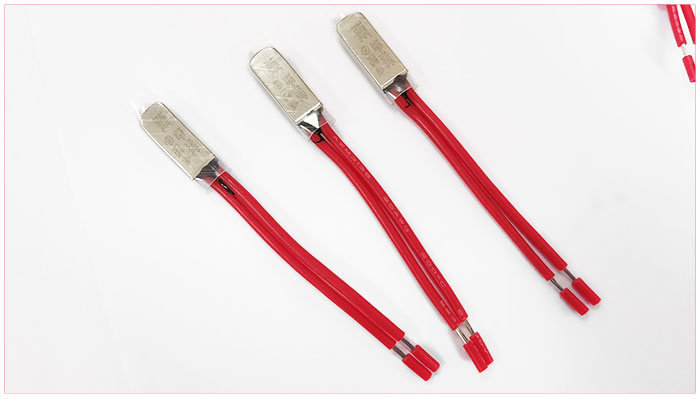

1. Customized lead wire: Customized wire material, length and color according to customer needs

2. Customized metal shell: Customize different material shells according to customer needs, including plastic shells, iron shells, stainless steel shells, and other metal shells.

3. Customized heat shrinkable sleeve: Customize different high temperature resistant polyester heat shrinkable sleeves according to customer needs

About Motor component and  accessories

NIDE can supply the full range of electric motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
