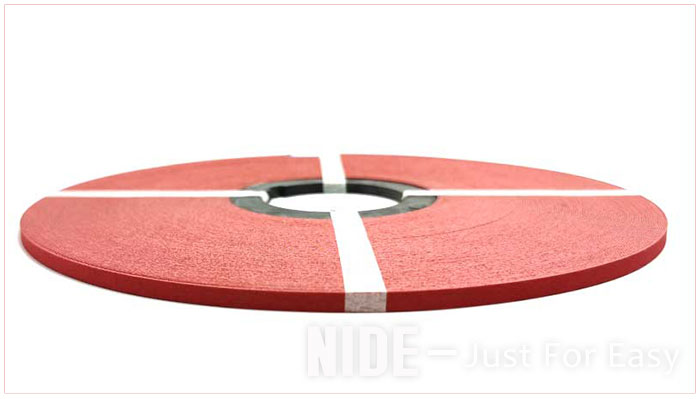

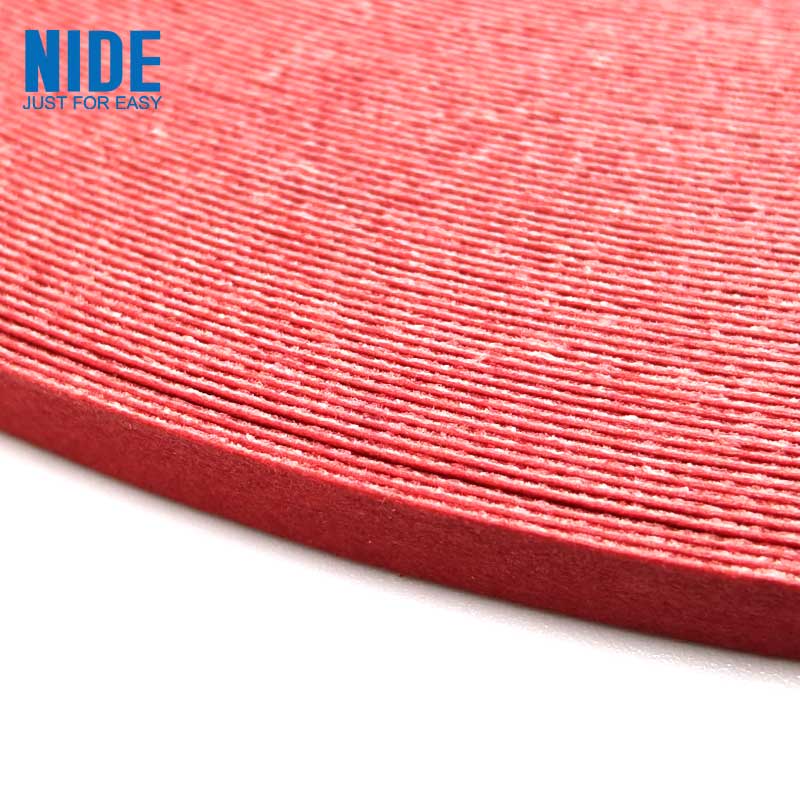

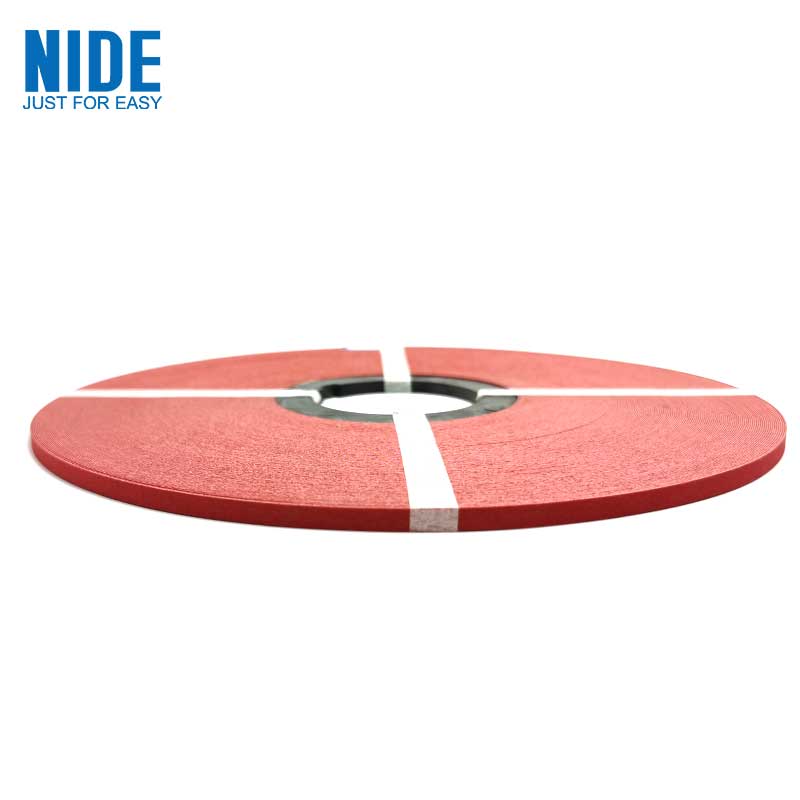

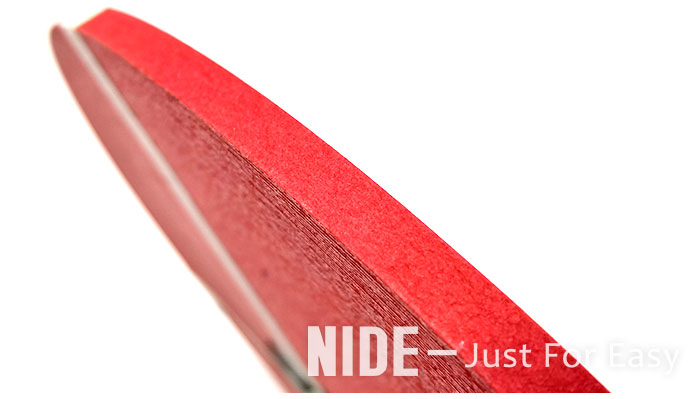

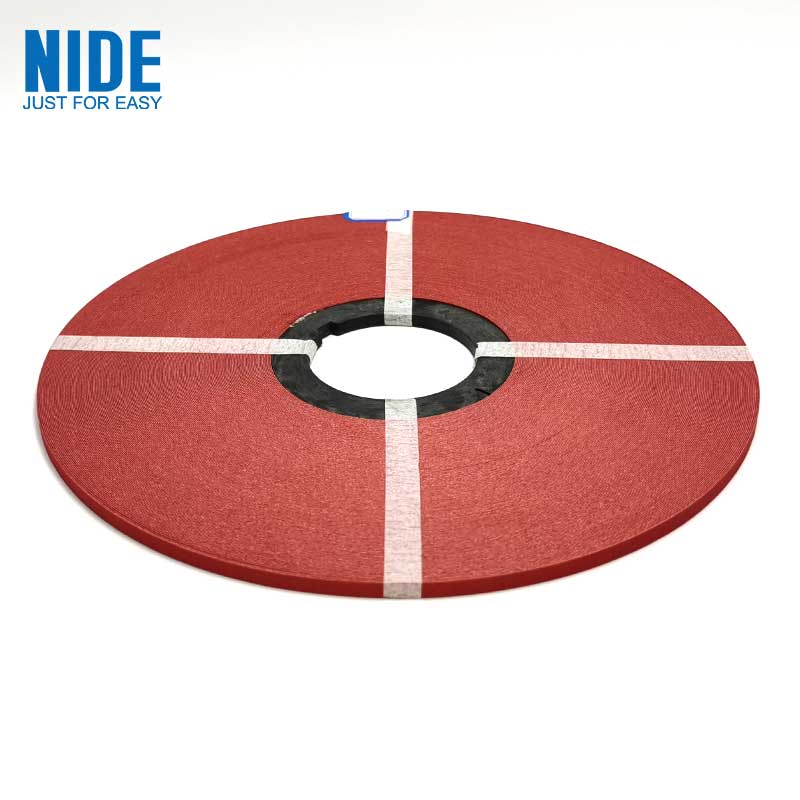

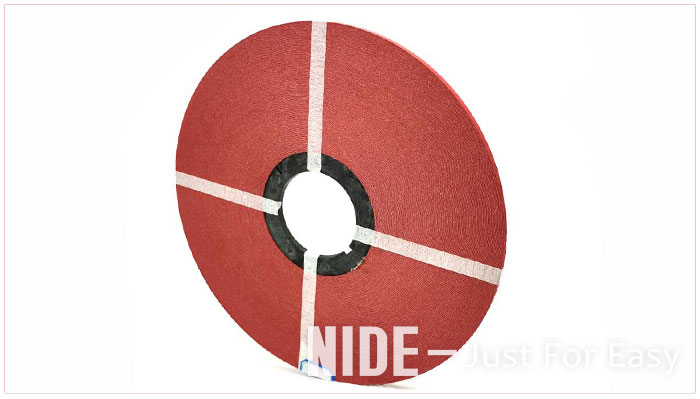

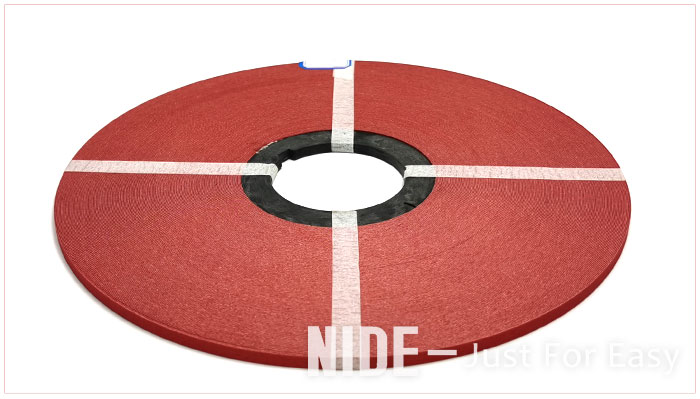

Red Vulcanized Fiber Motor insulation wedge material for armature coil winding

Model:NDPJ-JYZ-6

Red Vulcanized Fiber Insulation wedge it is widely used in slot, phase and liner insulating of motor, transformer and so on.



Categoryes:  Insulation paper

CONTACT US
Details

Red Vulcanized Fiber is made of cotton pulp, wood pulp and zinc oxide. It is conglutinated by the cementing compound under thermophilic temperature. With a hand feature and good elasticity, it shows excellent abrasive resistance, heat resistance, mechanical strength and electric strength

Thermal class: F


Application:

it is widely used in slot, phase and liner insulating of motor, transformer and so on.


Item

Raw   material

Raw   material weight (g)

Chemical   composition

Chemical   percentage(%)

Vulcanized   fibre paper

Cotton   fiber

80

CH12O6

80

Wood   fiber

10

C6H12O5

10

Dye

0.36

Na6Al4Si6S4H20

0.35

ZnSO4

0.15

ZnSO4

0.15

H2O2

7.5

H2O2

7.5

Filler

2

TiO2

2



insulation paper.jpg

insulation wedge paper.jpg

armatur insulation paper wedge.jpg

motor insulation wedge.jpg


Information needed for insulation material inquiry

It will be better if customer could send us detailed drawing including below information.

1. Insulation material type: insulation paper, wedge, (including DMD,DM, polyester film, PMP,PET, Red Vulcanized Fiber)

2. Insulation material dimension: width, thickness, tolerance.

3. Insulation material thermal class: Class F, Class E, Class B, Class H

4. Insulation material applications

5. Required quantity: normally its weight

6. Other technical requirement.



We also supply different types of electrical insulation materials for stator or armatures, such as insulation paper and insulation wedge with different class degree. DMD Class B/F, DM Class B/F, Polyester film Class E, Red Vulcanized Fiber Class A, NH& NHN, etc

electrical insulation material motor winding insulation paper wedge



Besides, we can supply the full range of motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper material, shaft, magnet, fan, motor cover,etc.

motor part, motor components, motor accessories
