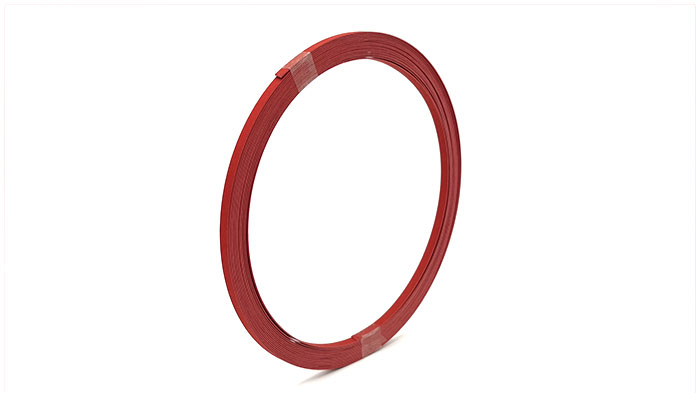

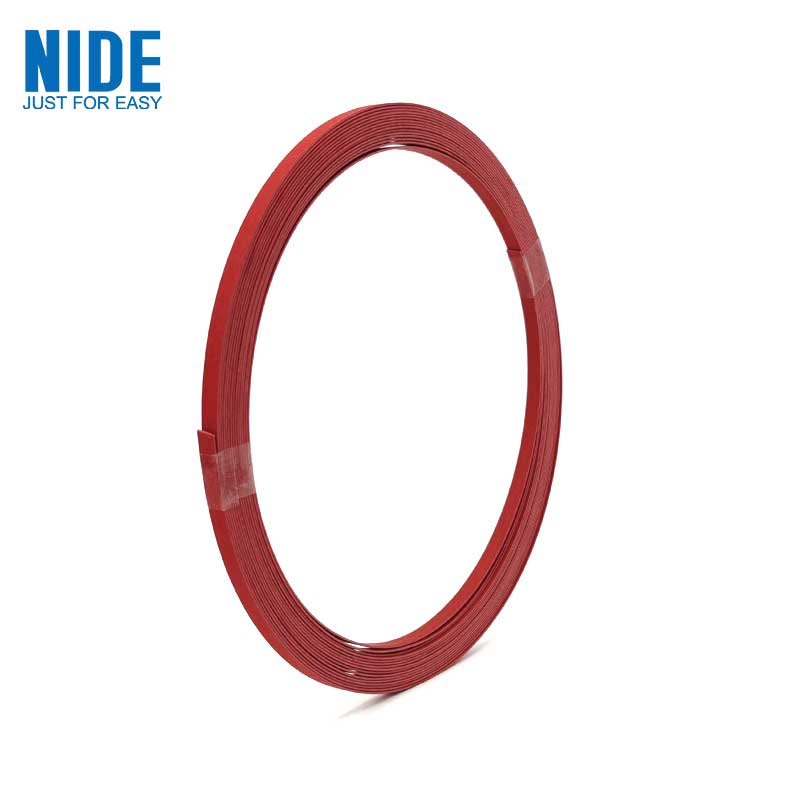

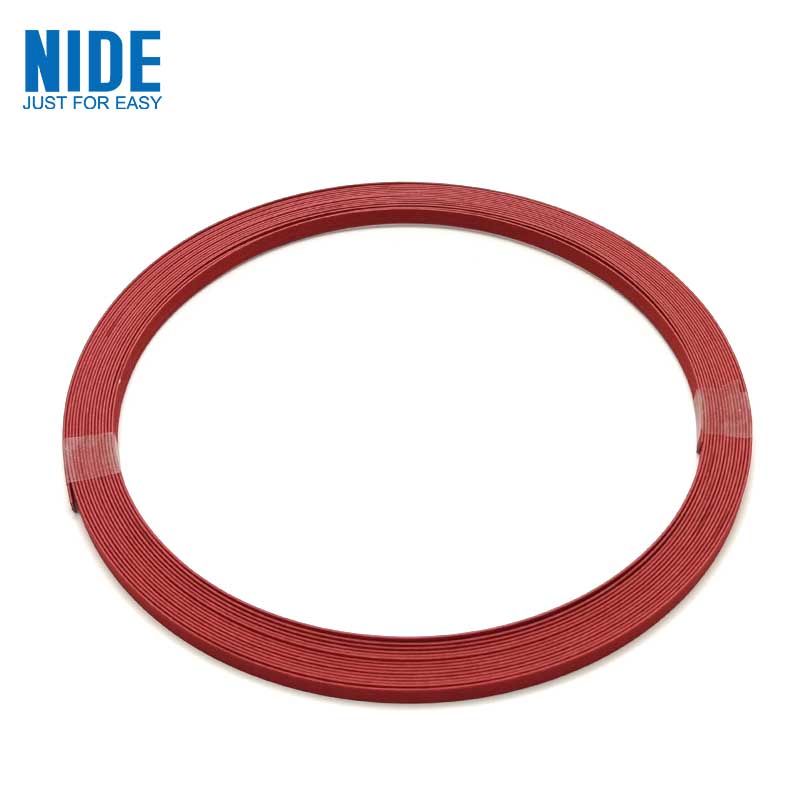

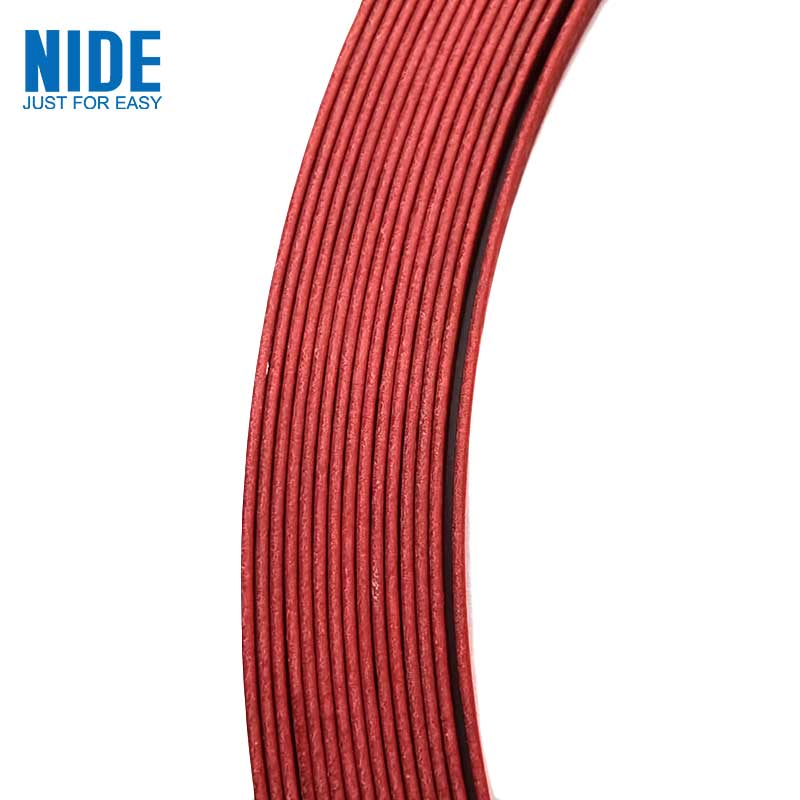

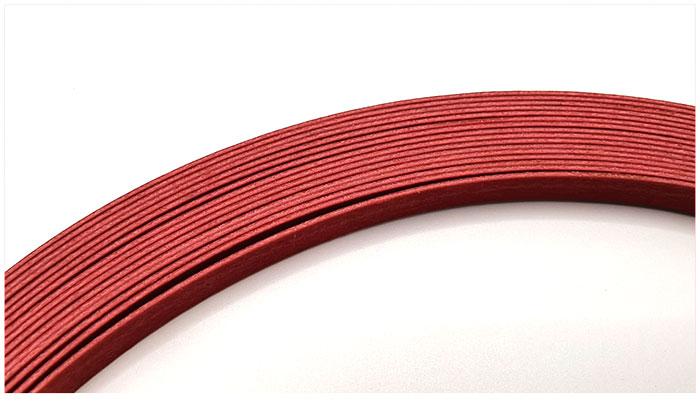

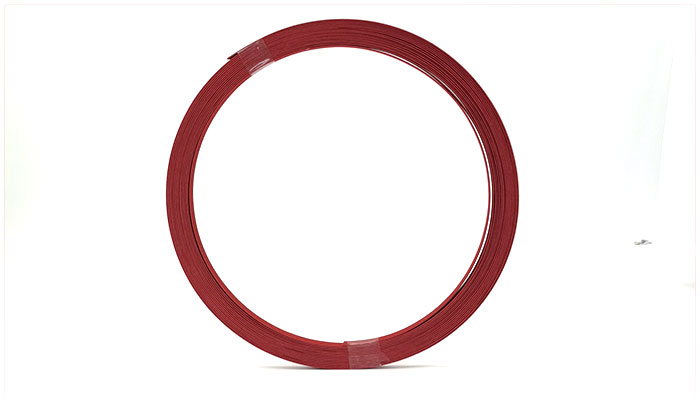

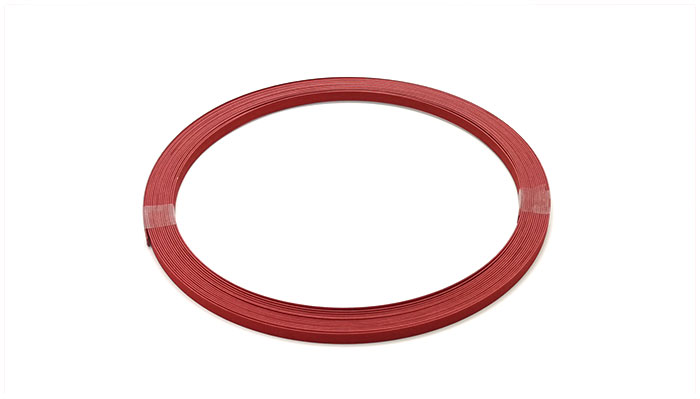

Red steel paper is a kind of processed paper with high hardness. The finished products include flat sheets, rolls, tubes, etc. The paper is hard. The paper is hard. It has excellent elasticity, wear resistance, corrosion resistance, heat resistance, mechanical strength, insulation properties and machining and molding properties.

Red Vulcanized Fiber is made of cotton pulp, wood pulp and zinc oxide. It is conglutinated by the cementing compound under thermophilic temperature. With a hand feature and good elasticity, it shows excellent abrasive resistance, heat resistance, mechanical strength and electric strength

Thermal class: F

Application:

it is widely used in slot, phase and liner insulating of motor, transformer and so on.

Information needed for insulation material inquiry

It will be better if customer could send us detailed drawing including below information.

1. Insulation material type: insulation paper, wedge, (including DMD,DM, polyester film, PMP,PET, Red Vulcanized Fiber)

2. Insulation material dimension: width, thickness, tolerance.

3. Insulation material thermal class: Class F, Class E, Class B, Class H

4. Insulation material applications

5. Required quantity: normally its weight

6. Other technical requirement.

We also supply different types of electrical insulation materials for stator or armatures, such as insulation paper and insulation wedge with different class degree. DMD Class B/F, DM Class B/F, Polyester film Class E, Red Vulcanized Fiber Class A, NH& NHN, etc

Besides, we can supply the full range of motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper material, shaft, magnet, fan, motor cover,etc.
