Your current location:Home > Products > Insulation paper > Class H insualtion paper Motor DMD mylar polyester film three-layer insulation composite material
Class H insualtion paper Motor DMD mylar polyester film three-layer insulation composite material

ND-JYZ-6642

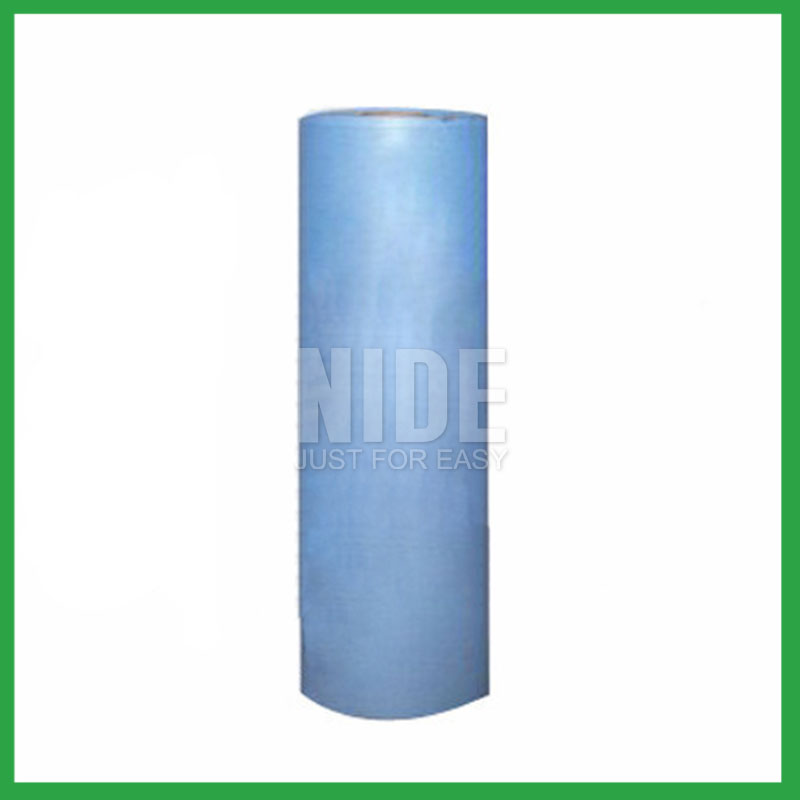

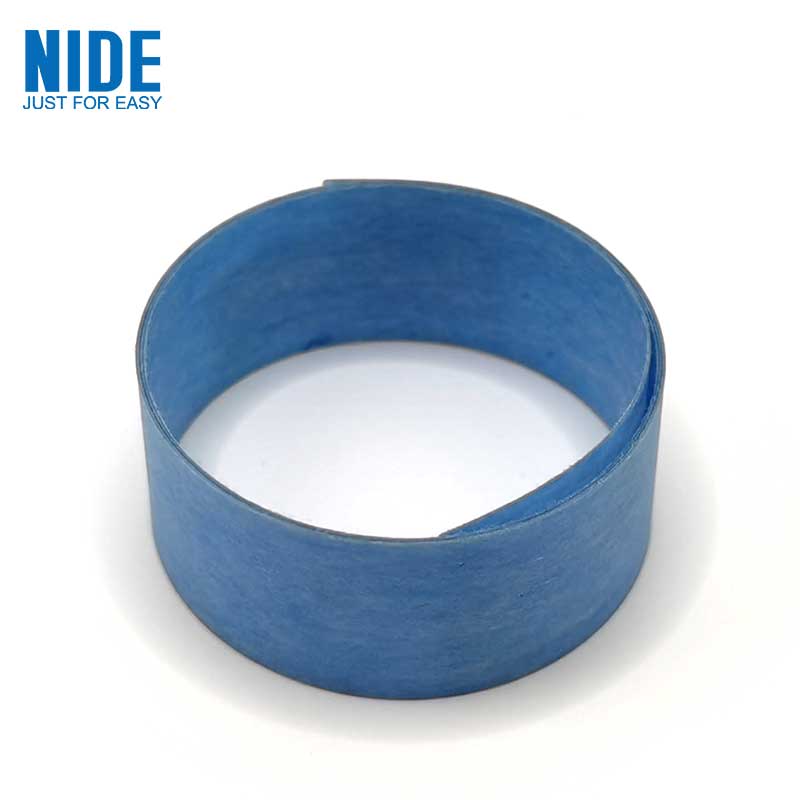

Class H 6642 DMD polyester film insulation paper is a three-layer composite material made of one layer of polyester film and two electrical polyester fibre nonwovens and glued by H class resin. It shows excellent mechanical property

Categoryes:  Insulation paper

CONTACT US
Details

6642 DMD Inusltion paper induction:

Class H 6642 DMD polyester film insulation paper is a three-layer composite material made of

one layer of polyester film and two electrical polyester fibre nonwovens and glued by H class resin. It shows excellent mechanical property.

it is widely used in slot, phase and liner insulating of motors.



6642 DMD Inusltion Polyester film specification:

Producit name

6642 DMD motor Inusltion paper composite material

Model

6642

Thickness

0.13mm-0.47mm

Width

5mm-1000mm

Thermal class

H

Working temperature

180 degree

Color

Light blue

6642 Motor DMD insulation paper.jpg



6642 DMD insulation paper.jpg

6642 Class H DMD insulation paper.jpg

6642 motor insulation paper.jpg

6642 Motor DMD insulation paper wholesale.jpg

6642 Motor DMD insulation paper manufacturer.jpg

 Class H DMD MOTOR coil winding insulation paper

Nide is professional in manufacturing insulation material. We have been in this field for many years, and our products cover a wide range and application. Nide team will provide customers with advanced technology, first class quality and best service; will be always at your service.

Our main products are: Class E composite materials, Class B insulation materials, Class F composite materials, Class H composite materials, Class C MOMEX paper, and other related insulation products (red steel paper slot wedges, Class B F class H Grade C grade wedge, red steel paper end plate, insulating paper sleeve), etc



We also supply different types of electrical insulation materials for stator or armatures, such as insulation paper and insulation wedge with different class degree. DMD Class B/F, DM Class B/F, Polyester film Class E, Red Vulcanized Fiber Class A, NH& NHN, etc

electrical insulation material motor winding insulation paper wedge



Besides, we can supply the full range of motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper material, shaft, magnet, fan, motor cover,etc.

motor part, motor components, motor accessories
